Personnel and Material Decontamination Equipment

Automatic Walk-Through Boot Washer

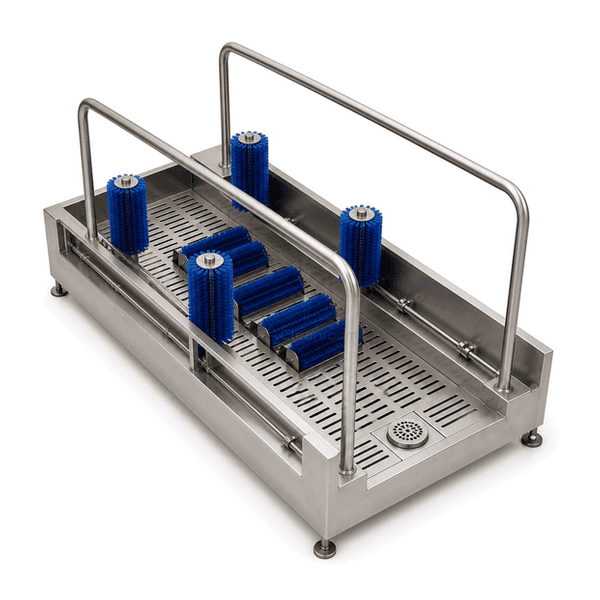

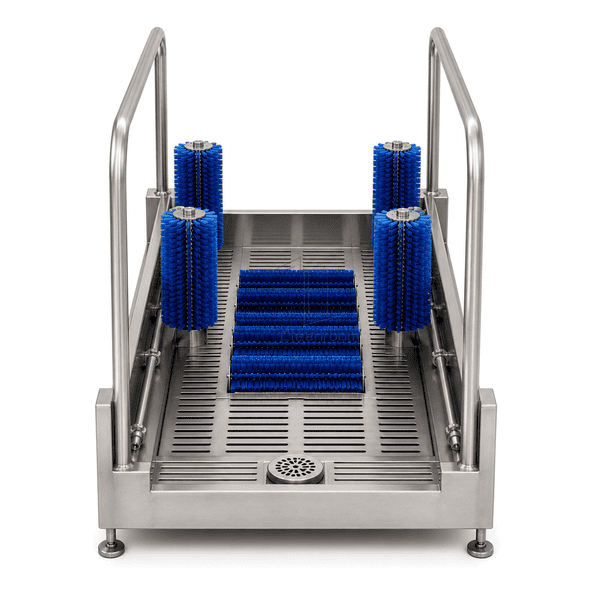

A walk-through stainless steel boot washer with horizontal sole brushes and vertical brushes for the lower boot shaft.

Sole and boot-shaft brushes
Continuous walk-through action
Controlled solution application
Open drainable wash basin

Request a Quote Browse Products

Product Introduction

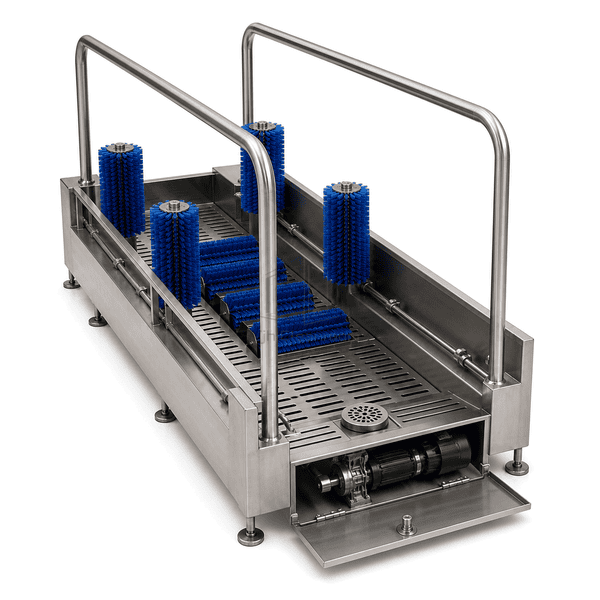

The Automatic Walk-Through Boot Washer combines horizontal rotating brushes below the sole with vertical brushes positioned for the sides and lower shafts of work boots. An approach sensor or handrail switch can start the brush drive and compatible cleaning-solution application as personnel enter. The wet zone uses a sloped stainless basin, removable brush modules and accessible strainers so daily wash-down is not hidden behind permanent guards.

Key Features

Horizontal brush rows work across the sole as the wearer walks forward.

Vertical brushes reach the sides and lower shaft that a flat sole cleaner does not address.

Sensor-controlled solution application can limit flow to occupied cycles.

Handrails support stable movement across the rotating brush zone.

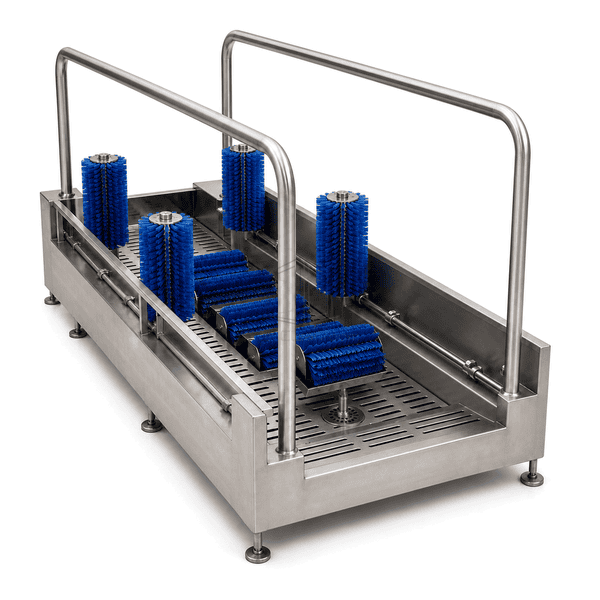

Lift-out brush modules and drain strainers make the wash basin accessible for cleaning.

Customer Product Concerns

Where boots are used, contamination can extend beyond the sole and cannot be addressed by a flat brush or tack mat alone.

Residue remains around the heel, sidewall and lower boot shaft.Vertical side brushes work with the horizontal sole brushes to reach several footwear surfaces.

Manual hose cleaning gives inconsistent mechanical contact during entry.A sensor-started walk-through brush path gives each passage a repeatable cleaning action.

Soiled water collects below brushes and makes sanitation difficult.A sloped basin, accessible strainers and removable brush modules expose the wet zone.

Wet footwear zones can become unstable for users moving between areas.Handrails and non-slip grating support controlled movement through the machine.

Typical Applications

Food processing hygiene entriesPharmaceutical support productionAnimal-health manufacturingIngredient preparation roomsWet-cleaned controlled facilities

Technical Parameters

The number of side brushes, track length and solution arrangement can be specified for the boot profile and traffic pattern.

Core Material	Food-grade polypropylene brush cores in a welded SUS304 wash basin
Panel Thickness	1.5–2.0 mm stainless steel body panels
Effective Width	450–700 mm clear walking width
Maximum Length	1200–2600 mm overall machine length
Steel Facing Thickness	1.5–2.0 mm SUS304
Core Density	900–1100 kg/m³ for polypropylene brush cores
Thermal Conductivity	0.10–0.22 W/(m·K) for polymer brush components
Surface Finish	Brushed SUS304 with hygienic welds and non-slip grating
Joint Type	Continuous welded drain basin with removable sole and shaft brush modules
Customization	Available based on the intended application and operating environment.

Available Options

Extended pre-clean sole trackThree or four shaft brushesWater or compatible cleaning-solution feedSide bypass for low footwear

Planning a Automatic Walk-Through Boot Washer specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
