Personnel and Material Decontamination Equipment

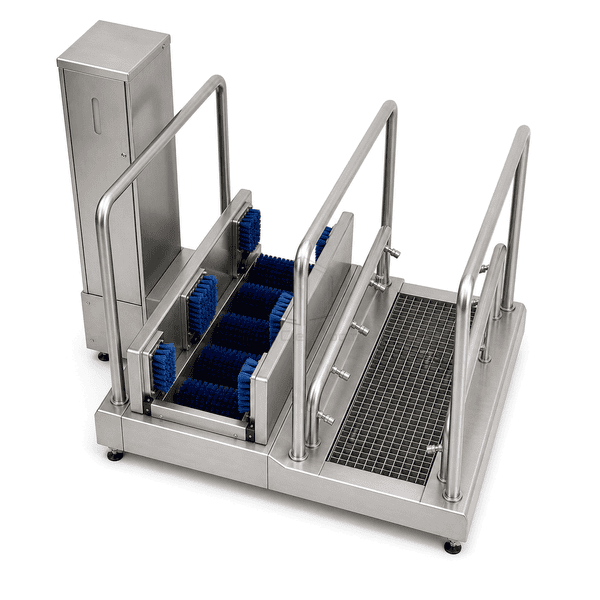

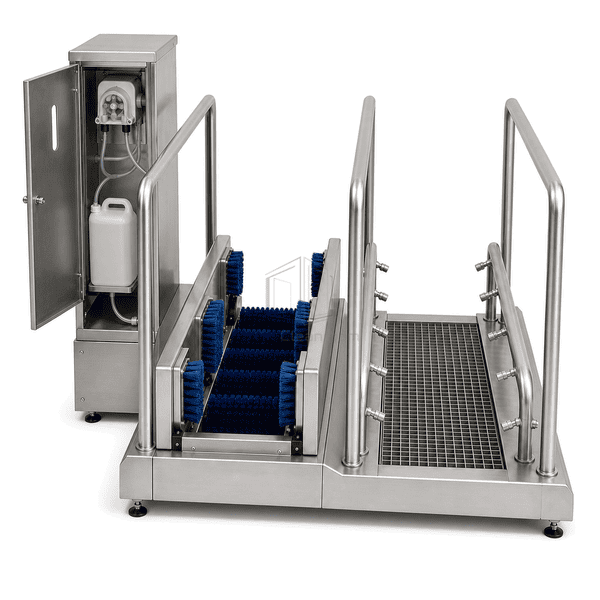

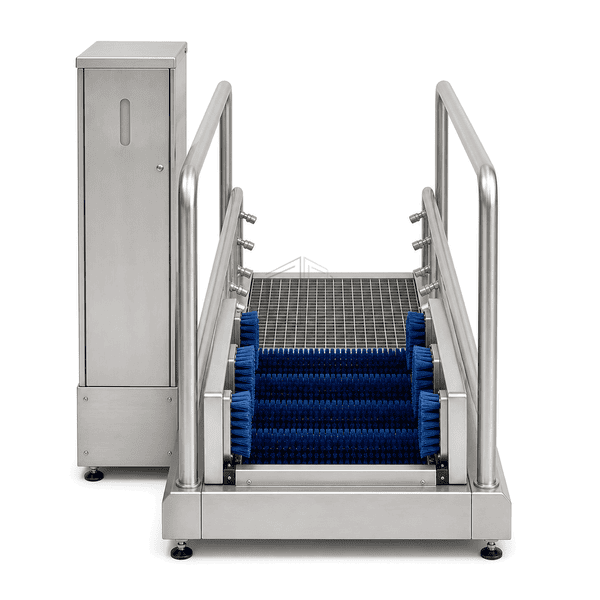

Automatic Boot Washing and Disinfection Station
A walk-through footwear station that brush-washes boot soles and sides, with configurable application of a compatible hygiene solution.
- Rotating sole and side brushes
- Configurable solution stage
- Guided walk-through lane
- Drainable stainless steel basin
Product Introduction
The Automatic Boot Washing and Disinfection Station first uses rotating brushes to remove visible soil from the sole and lower boot surfaces. A separate metered stage can apply a facility-selected compatible hygiene solution by spray or controlled shallow contact, according to the operating procedure. Brush modules, a debris screen and the stainless basin remain accessible for routine cleaning and solution replacement; the final solution choice and use conditions are configured for the intended environment.
Key Features
A configurable spray or shallow-contact stage can apply a compatible hygiene solution.
Metered feed can be linked to the occupied walk-through cycle.

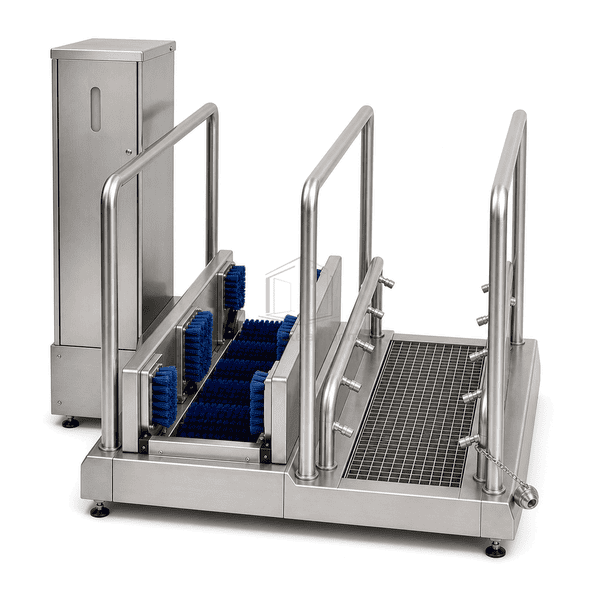

A removable debris screen protects the liquid zone from larger material.
The drainable stainless basin and brush cassettes support routine wash-down access.
Customer Product Concerns
Boot hygiene may require both mechanical soil removal and a defined solution-application step, with the details set by the facility's own procedure.
A solution-only mat is quickly fouled by visible soil on boots.Rotating brushes remove loose residue before the configured solution stage.
Manual application varies in coverage and replenishment practice.A metered spray or shallow-contact module can be set up for the selected operating procedure.
Debris enters the liquid zone and obstructs service components.A removable debris screen captures larger material before routine cleaning.
Deep liquid coverage is unsuitable for some footwear and entry routes.The unit can use targeted spray or a shallow contact zone limited to the required boot area.
Typical Applications
Food and beverage production entriesAnimal-health facility hygiene routesPharmaceutical utility areasControlled agricultural processingWet hygiene airlocks
Technical Parameters
Brush layout, liquid-contact method and solution-management hardware are configured for the footwear, process and site procedure.
| Core Material | Polypropylene brush cores and chemical-resistant fluid components in a welded SUS304 frame |
|---|---|
| Panel Thickness | 1.5–2.0 mm stainless steel body panels |
| Effective Width | 450–700 mm clear passage |
| Maximum Length | 1000–2200 mm washing and solution lane length |
| Steel Facing Thickness | 1.5–2.0 mm SUS304 |
| Core Density | 900–1100 kg/m³ for polypropylene brush cores |
| Thermal Conductivity | 0.10–0.22 W/(m·K) for polymer brush components |
| Surface Finish | Brushed SUS304 with chemical-resistant seals and non-slip grating |
| Joint Type | Welded drainable basin with removable brush modules and solution manifold |
| Customization | Available based on the intended application and operating environment. |
Available Options
Brush-only wash or combined wash-and-solution stagesSpray or shallow-contact solution methodSolution feed monitoring interfaceInterlocked exit-gate signal
Planning a Automatic Boot Washing and Disinfection Station specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
