Ammonia Removal Filter

A targeted gas-phase filter loaded with acid-impregnated pellets that convert ammonia into a retained, non-volatile form within the media bed.

NH3-Targeted Chemistry
Low-Dust Pellets
Uniform Packed Bed
Laboratory Air Control

Request a Quote Browse Products

Product Introduction

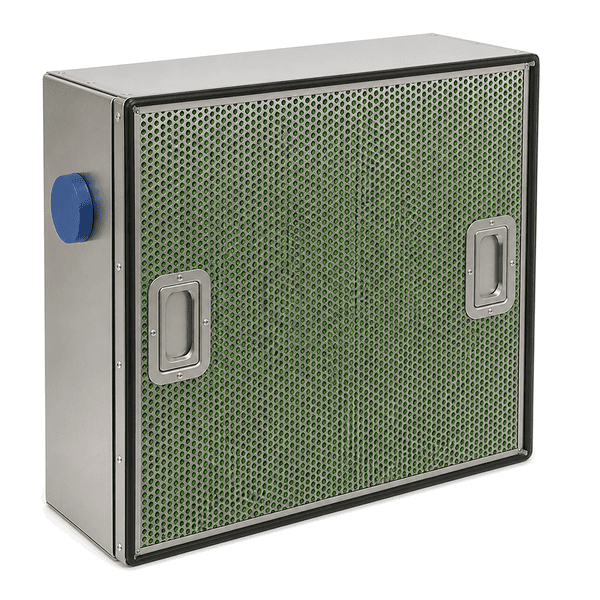

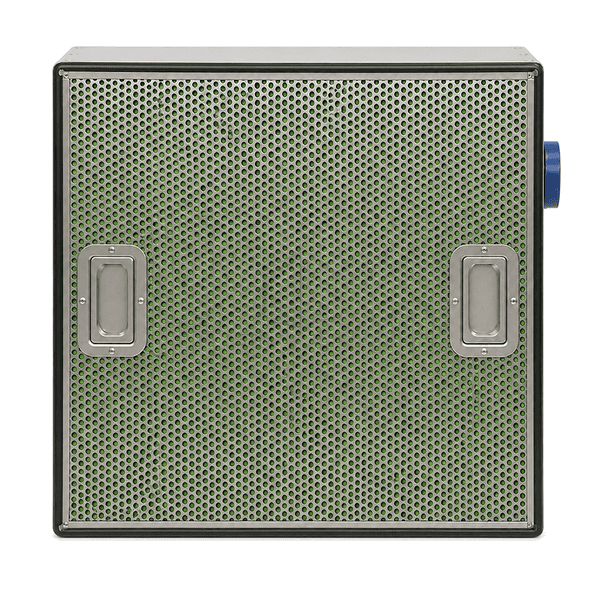

The ammonia removal filter uses porous carbon or alumina carrying an acidic impregnant chosen to neutralize NH3. The media is contained in a corrosion-resistant box or refillable cartridge with a uniform depth across the airflow path. This dedicated chemistry provides more reliable ammonia capacity than untreated carbon and helps protect staff areas, animals, process materials and downstream HVAC components. A particle prefilter should be installed upstream to keep the reactive surface accessible.

Key Features

Acid-impregnated granules chemically retain ammonia instead of relying only on weak physical adsorption.

Even media packing supports consistent residence time across the entire face.

Corrosion-resistant mesh and casing tolerate the intended basic-gas environment.

Serviceable cell formats simplify staged replacement after media-capacity monitoring.

Customer Product Concerns

Ammonia has a low molecular weight and weak affinity for untreated carbon, so a general odour filter may fail without warning.

Untreated carbon releases ammonia again as conditions change.Acid impregnation converts captured NH3 into a more strongly retained salt.

Odour is noticed before a planned maintenance interval ends.A deeper bed and scheduled media-capacity checks provide a more predictable replacement point.

Filter housing components corrode in a persistent ammonia atmosphere.Stainless steel or coated metal construction isolates the media and resists surface attack.

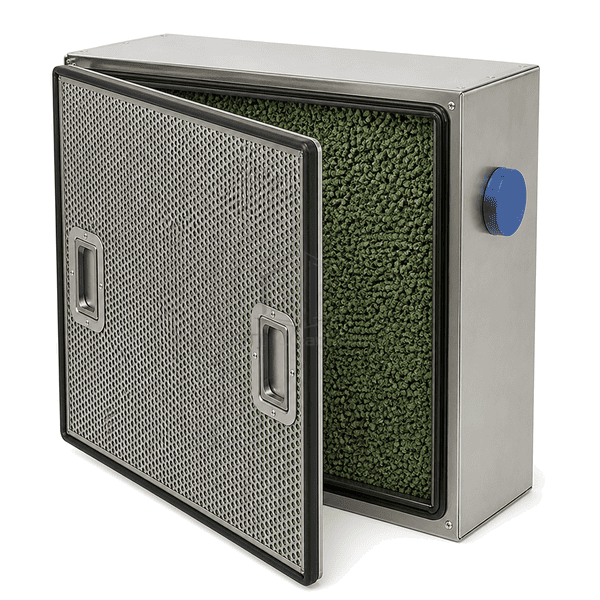

Adsorbent fines escape from a vibrating air-handling unit.Fine outlet screens and compressed media retain pellets and dust inside the cartridge.

Typical Applications

Animal holding roomsChemical analysis laboratoriesFertilizer production support areasAmmonia refrigeration plant roomsWastewater treatment ventilation

Technical Parameters

Representative material and size ranges for an ammonia-specific gas filter are shown below.

Core Material	Acid-impregnated activated carbon or activated alumina formulated for NH3 capture
Panel Thickness	100–292 mm overall cartridge or box-cell depth
Effective Width	145–610 mm nominal module width
Maximum Length	Up to 610 mm nominal module height
Steel Facing Thickness	0.8–1.2 mm galvanized, coated or 304 stainless steel
Core Density	500–700 kg/m³ packed selective-media bulk density
Thermal Conductivity	0.10–0.22 W/(m·K) for the packed reactive media
Surface Finish	Brushed stainless steel or chemical-resistant white powder coat
Joint Type	Sealed cassette with retained pellet bed and continuous perimeter gasket
Customization	Available based on the intended application and operating environment.

Available Options

Box cell or cylindrical canisterAcid-treated carbon or aluminaStainless-steel constructionLow-dust downstream scrim
