Cleanroom Flooring Systems

Aluminum Cleanroom Cove Base

A two-part extruded aluminum profile that clips over a concealed backing angle to form a smooth, rigid radius at the cleanroom floor-to-wall junction.

50 mm Hygienic Radius
Concealed Clip Fixing
Rigid Aluminum Face
Sealable Profile Edges

Request a Quote Browse Products

Product Introduction

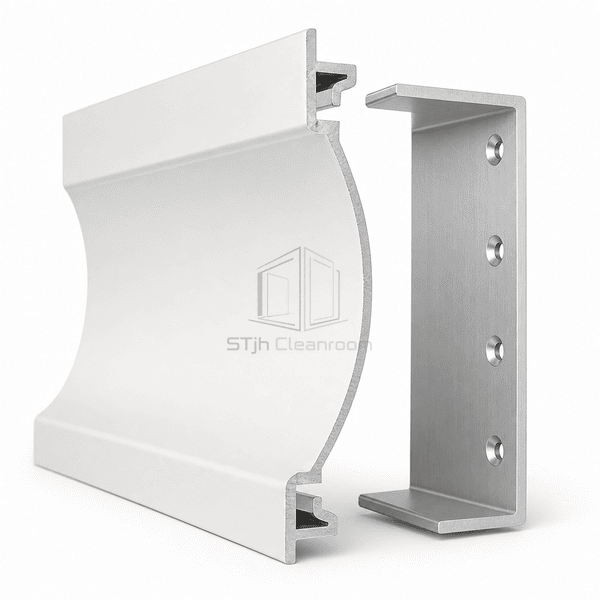

The aluminum cleanroom cove base replaces the sharp internal floor-to-wall corner with a rigid curved face. A backing angle is fixed behind the visible profile, allowing the finished cove to clip into place without exposed screw heads. The extruded 6063 aluminum face can be polyester powder coated to coordinate with modular wall panels, while narrow sealant lines close its upper and lower edges. Prefabricated internal, external and three-way accessories keep the same radius through room corners.

Key Features

A 50 mm radius removes the inaccessible right-angle recess at the base of the wall.

The two-part clip construction hides mechanical fasteners behind a continuous wipe-clean face.

Rigid aluminum protects the panel base against mops, footwear and light trolley contact.

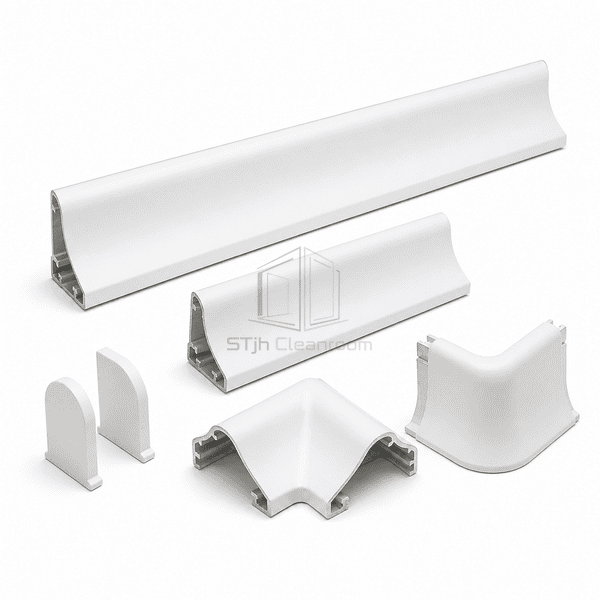

Matching corner pieces and end caps avoid hand-cut open ends at changes in direction.

Customer Product Concerns

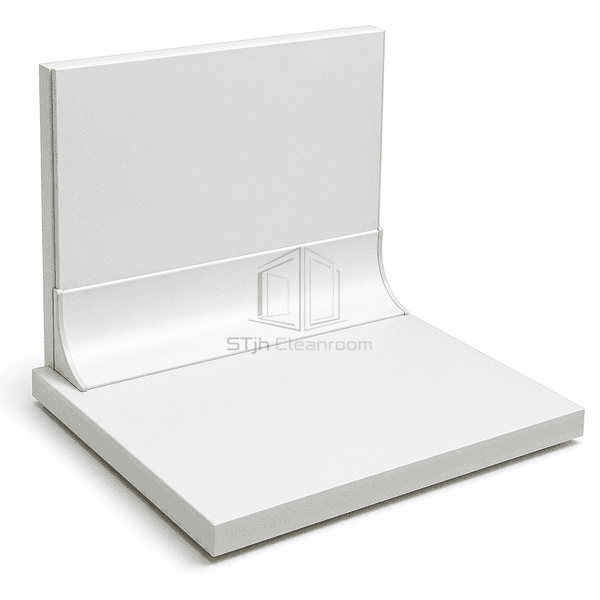

A modular cleanroom base junction must close the cleaning corner without exposing fixings or preventing coordinated wall-panel installation.

Dust and cleaning residue remain in a sharp 90-degree floor-to-wall angle.The broad extruded radius creates an accessible curved wiping path.

Surface screws interrupt the cove face and trap fibres around their heads.A concealed backing angle receives the clip-on finish profile behind the visible surface.

Site-cut mitres leave mismatched corners and open profile ends.Purpose-made internal, external and three-way accessories continue the selected radius.

A soft skirting is easily marked where carts pass close to the partition.The rigid aluminum face provides a durable buffer along the panel base.

Typical Applications

Modular pharmaceutical cleanroomsLaboratory wall-panel basesMedical device production suitesFood processing controlled roomsClean corridors and personnel airlocks

Technical Parameters

Typical dimensions and materials for a clip-on modular cleanroom aluminum cove base are listed below.

Core Material	Extruded 6063 aluminum cove face with matching aluminum backing angle
Panel Thickness	Approximately 1.2–2.0 mm aluminum profile wall thickness
Effective Width	50 mm nominal internal cove radius
Maximum Length	3000 mm standard straight profile length
Steel Facing Thickness	0 mm; the visible face and backing are aluminum
Core Density	Approximately 2700 kg/m³ for 6063 aluminum alloy
Thermal Conductivity	Approximately 160–205 W/(m·K) for architectural aluminum alloy
Surface Finish	Smooth polyester powder coat or clear anodized finish with colour-matched accessories
Joint Type	Clip-on curved face over a screw-fixed backing angle, with sealant at both exposed edges
Customization	Available based on the intended application and operating environment.

Available Options

40, 45 or 50 mm cove radiusClear anodized or powder-coated finishInternal, external and three-way corner piecesEnd caps and colour-matched edge sealant

Planning a Aluminum Cleanroom Cove Base specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
