Alpha-Beta Rapid Transfer System

A complete double-door transfer set combining a fixed Alpha barrier port with a removable Beta container, canister or bag interface.

Matched Alpha and Beta Halves
Bidirectional Closed Transfer
Reusable or Single-Use Beta Options
Docked Door Coupling

Request a Quote Browse Products

Product Introduction

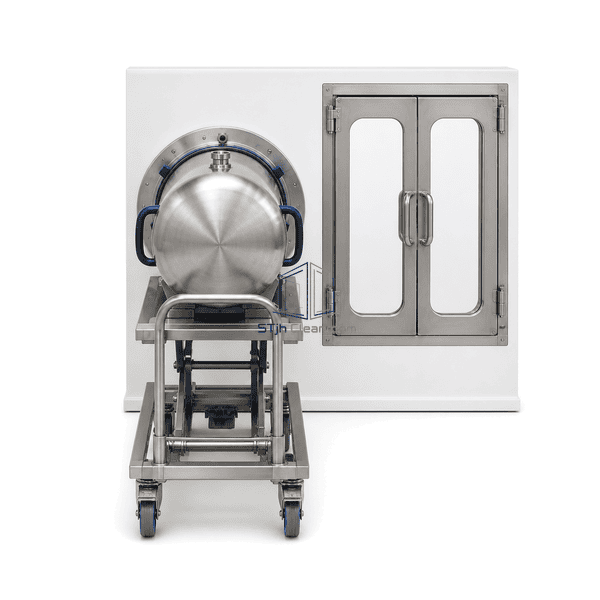

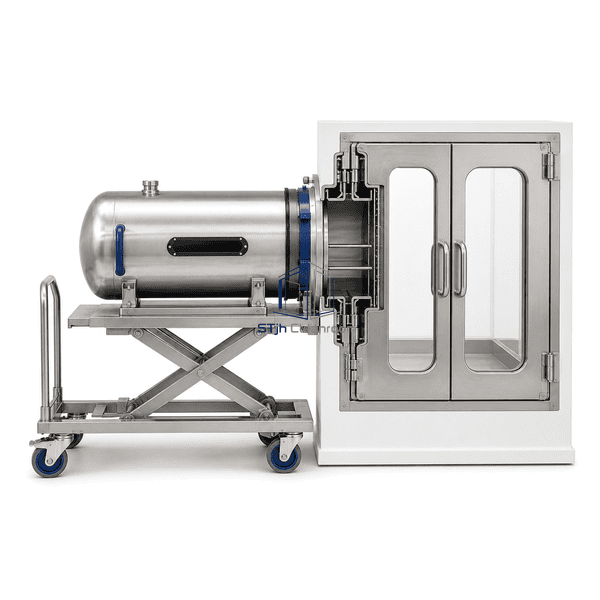

This system includes both the fixed Alpha part and the movable Beta transfer component. Each half has its own door, lock and seal. When docked, the two door faces couple and open as one assembly, creating a closed route between the container and the barrier chamber. The Beta side may be a reusable stainless canister, polymer container or single-use bag, allowing the same Alpha port to serve tools, components, waste or other suitable transfer loads.

Key Features

Matched Alpha and Beta components form one interlocked double-door assembly.

Reusable canisters support heavier tools and organized internal racks.

Single-use Beta bags simplify lightweight component or waste transfer.

The coupled door faces remain isolated from the clean transfer path.

A transport trolley can support large containers during docking.

Customer Product Concerns

The movable Beta half must match the fixed port, carry the actual load and remain supported during docking and undocking.

Heavy components overload a flexible transfer bag.A rigid stainless Beta container and internal rack support the load.

Disposable items make reusable canister cleaning inefficient.A compatible single-use Beta bag provides a separate lightweight option.

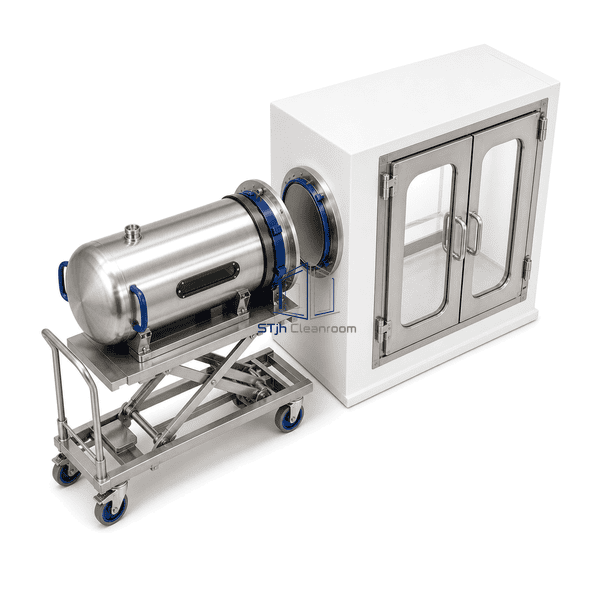

Large containers pull down on the barrier port.A height-adjustable trolley carries the Beta container during docking.

Mixed Alpha and Beta interfaces do not lock correctly.Matched dimensions, door geometry and seals are selected as one transfer set.

Typical Applications

Sterile component loadingTool transfer into isolatorsClosed waste removalBidirectional transfer between barrier systems

Technical Parameters

Typical configurable construction ranges for an Alpha-Beta rapid transfer system are listed below.

Core Material	SUS316L Alpha frame with stainless, polyethylene or multilayer-film Beta container and silicone seals
Panel Thickness	30-80 mm compatible barrier-wall and container-door sections
Effective Width	95-440 mm useful transfer diameter
Maximum Length	Up to 1200 mm reusable Beta container length
Steel Facing Thickness	2.0-4.0 mm SUS316L Alpha and rigid Beta components
Core Density	930-970 kg/m³ for polyethylene Beta containers or approximately 8000 kg/m³ for stainless versions
Thermal Conductivity	0.33-0.50 W/(m·K) for polyethylene or 14-16 W/(m·K) for stainless versions
Surface Finish	Electropolished stainless or smooth molded polymer with cleanable internal rack options

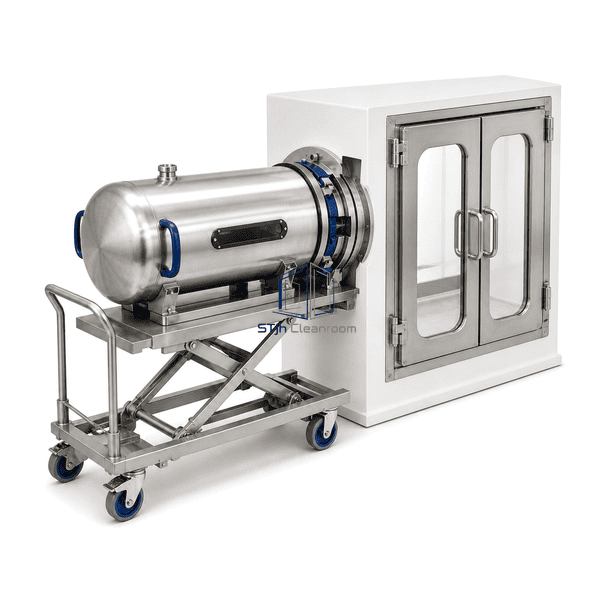

Joint Type	Matched Alpha-Beta double-door coupling with rotational lock, lip seals and docking support interface
Customization	Available based on the intended application and operating environment.

Available Options

Rigid stainless or polymer Beta containerSingle-use Beta bagInternal racks and hydrophobic vent filterHeight-adjustable transfer trolley
