Air Filters and Chemical Filtration

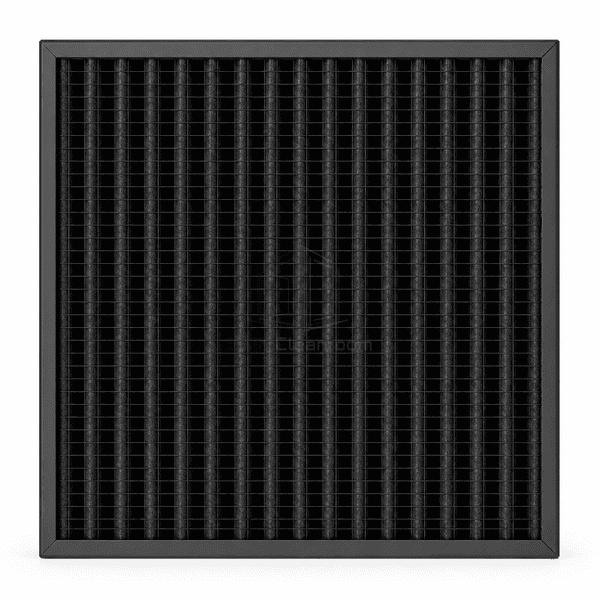

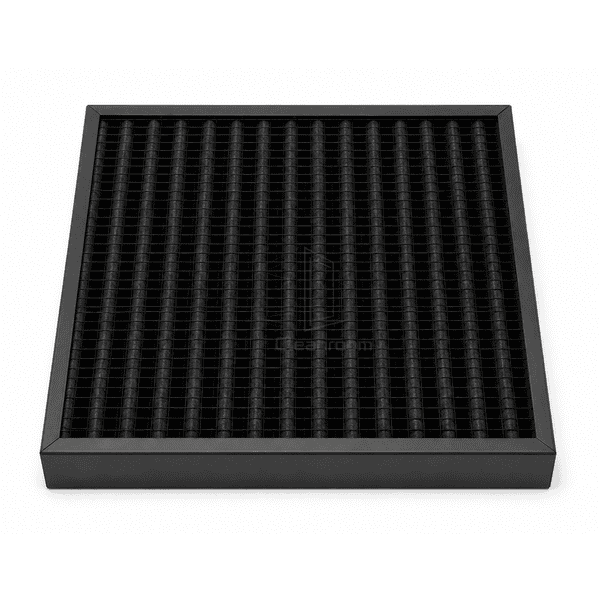

Activated Carbon Pleated Pre-Filter
A compact combination panel that captures coarse particles and adsorbs low concentrations of common odors and gaseous contaminants in one stage.
- Particle and Gas Filtration
- Activated Carbon Media
- Retrofit Panel Footprint
- Broad-Spectrum Odor Control
Product Introduction

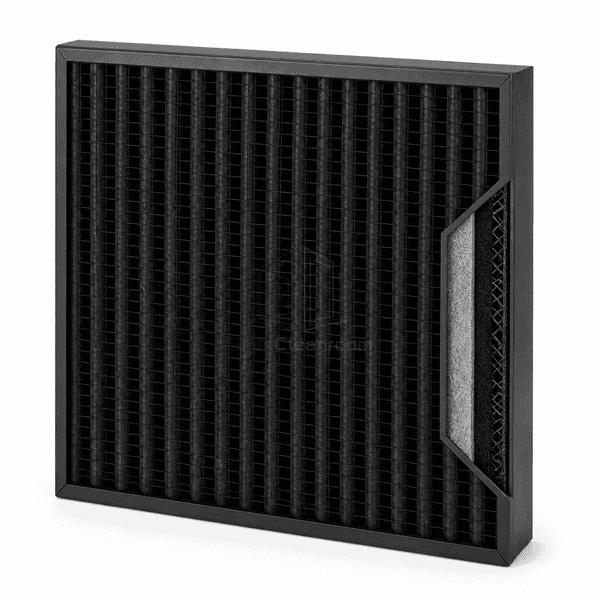

The activated carbon pleated pre-filter combines a synthetic particulate layer with finely distributed activated carbon in a supported pleated pack. The particulate fibers protect the adsorbent from premature dust blockage, while the carbon surface captures low concentrations of odor molecules and common indoor or outdoor gaseous pollutants. Pleating increases contact area within standard 50 or 100 mm filter tracks. The filter is intended for comfort and light molecular-control duty, not for concentrated process gas capture or bulk chemical storage protection.
Key Features
The upstream synthetic layer limits dust fouling of the activated-carbon surface.
A standard panel footprint allows odor-control upgrades without a separate deep carbon bed.
Distributed adsorbent shortens diffusion distance and responds quickly to fluctuating low gas concentrations.
Customer Product Concerns
A thin carbon panel has finite adsorbent mass, so its contaminant load and humidity exposure must remain within light-duty molecular-control conditions.
Outdoor traffic odors enter through a filter stage designed only for particles.Activated carbon distributed through the pleated medium adsorbs many low-level organic odor compounds.
Dust coats loose carbon and consumes pressure drop before the adsorbent is used.An integrated particulate layer captures coarse material before it reaches the carbon-bearing layer.
A deep granular carbon module will not fit the existing air-handler track.The combined media is formed into standard 44 or 95 mm panel depths for straightforward retrofitting.
Stored carbon filters lose capacity by adsorbing warehouse humidity and background vapors.Sealed packaging is kept closed until installation and stock is rotated within the recommended shelf period.
Typical Applications
Office and public-building outside airHospitals and care-area odor reductionRetail and hospitality ventilationTemporary construction odor controlPrefiltration ahead of deeper molecular filters
Technical Parameters
Typical construction ranges for a light-duty activated-carbon pleated pre-filter are shown below.
| Core Material | Synthetic particulate media combined with broad-spectrum activated-carbon adsorbent |
|---|---|
| Panel Thickness | 44 or 95 mm actual depth |
| Effective Width | 289-594 mm standard face width |
| Maximum Length | Up to 594 mm standard face length |
| Steel Facing Thickness | 0.30-0.50 mm corrosion-resistant support grid where specified |
| Core Density | Approximately 120-250 kg/m³ nominal carbon-loaded media bulk density |
| Thermal Conductivity | Approximately 0.045-0.080 W/(m·K) for the dry carbon-synthetic media pack |
| Surface Finish | Black or dark gray carbon-loaded pleats in a moisture-resistant frame |

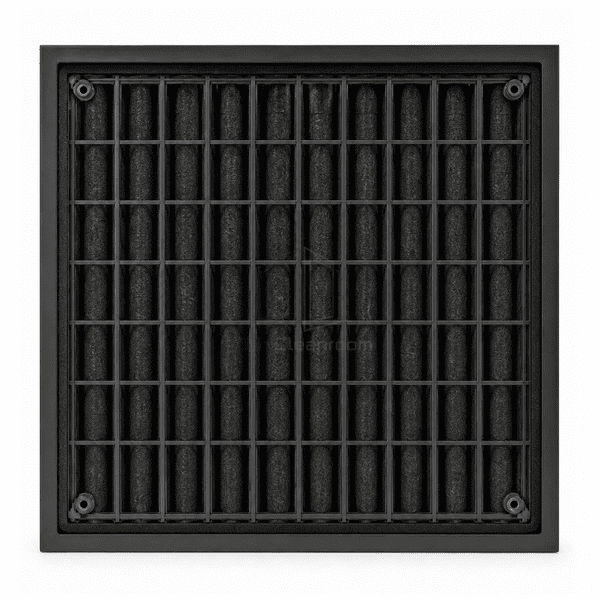

| Joint Type | Combination media pleated over a support grid and perimeter-bonded into a panel frame |
| Customization | Available based on the intended application and operating environment. |
Available Options
44 mm or 95 mm depthGeneral-purpose or target-impregnated carbonBoard, plastic or galvanized frameFull- and half-module face sizes
Planning a Activated Carbon Pleated Pre-Filter specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
