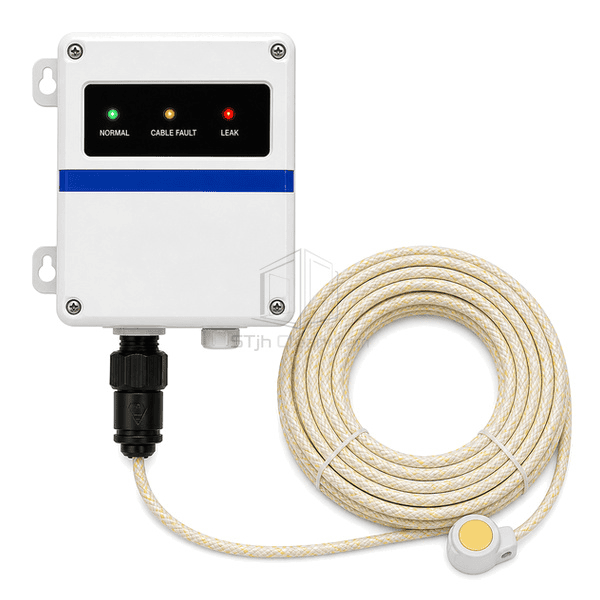

Complete water leak detection kit with white controller and coiled white-yellow sensing cable

Cleanroom Control and Environmental Monitoring Systems

Water Leak Sensor

A supervised leak sensor that detects conductive liquid along a cable or zone probe near cleanroom utilities and reports an alarm before water spreads.

Sensing Cable or Zone Probe
Supervised Circuit Integrity
Fast Local Alarm
BMS Relay Output

Request a Quote Browse Products

Product Introduction

The water leak detection sensor monitors the electrical condition of a floor cable, rope sensor or compact zone probe. Contact with conductive liquid changes the sensing circuit and activates the local controller, while supervision identifies cable breaks or disconnected probes separately. The sensing element can be routed around AHU drain pans, humidifiers, chilled-water lines and raised-floor utility paths. Relay or network output sends leak and trouble states to the BMS so response can begin before water reaches clean finishes or sensitive equipment.

Key Features

Flexible sensing cable follows equipment perimeters and long utility routes.

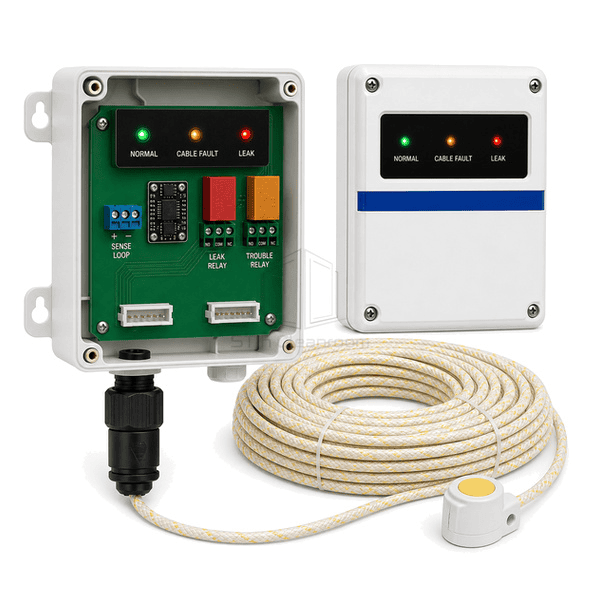

Circuit supervision distinguishes a leak alarm from a broken or disconnected sensor.

Resettable sensing elements can return to service after cleaning and drying.

Separate relay or network states report leak, cable fault and controller health.

Customer Product Concerns

A useful leak system must cover the likely water path, remain serviceable and signal cable damage before an actual leak occurs.

A point probe detects water only after it reaches one small location.A sensing cable follows the full perimeter or lowest likely flow path.

A disconnected cable leaves the area unprotected without warning.Supervised end-of-line monitoring creates a distinct trouble alarm for circuit loss.

The sensor must be discarded after a minor clean-water leak.A resettable cable can be wiped, dried and returned to monitoring service.

Water spreads under equipment before staff find the source zone.Zoned circuits and clear controller labels narrow the response area quickly.

Typical Applications

AHU and humidifier roomsCleanroom utility chasesRaised-floor process areasChilled-water and drain lines

Technical Parameters

Typical construction values for a cleanroom water leak sensor and zone controller are listed below.

Core Material	Conductive polymer sensing cable with fluoropolymer braid and polycarbonate zone controller
Panel Thickness	35-70 mm controller depth
Effective Width	90-160 mm controller width
Maximum Length	Sensing cable zones up to 30000 mm
Steel Facing Thickness	0-1.0 mm; optional stainless mounting plate
Core Density	1700-2200 kg/m³ for fluoropolymer sensing-cable materials
Thermal Conductivity	0.20-0.30 W/(m·K) for fluoropolymer cable insulation
Surface Finish	White controller with blue status labels and white-yellow braided sensing cable

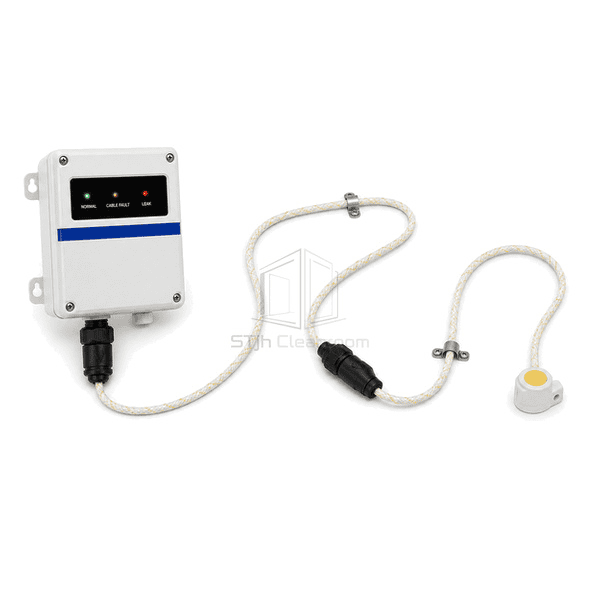

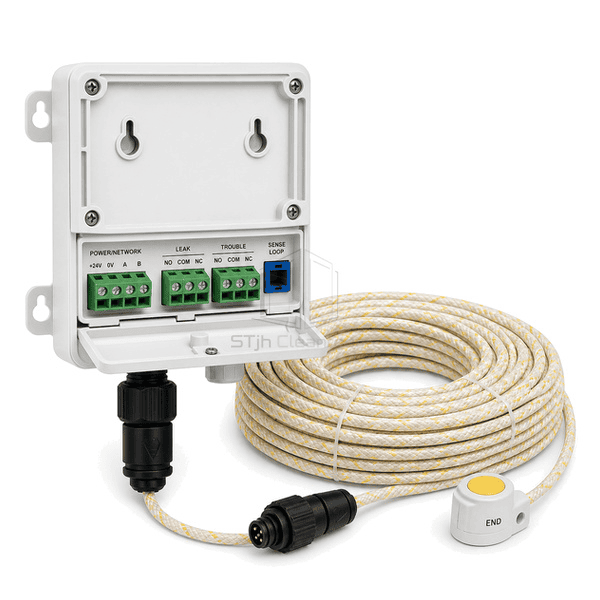

Joint Type	Supervised quick-connect sensing cable with end terminator and removable alarm terminals
Customization	Available based on the intended application and operating environment.

Available Options

Zone cable or point probeMultiple sensing zonesLeak and trouble relaysModbus or BACnet gateway

Planning a Water Leak Sensor specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
