Air Filters and Chemical Filtration

Washable Synthetic Pre-Filter

A resilient bonded-synthetic pad in a reusable metal frame for repeated coarse-dust capture, washing, drying and reinstallation.

Washable Bonded Media
Reusable Aluminum Frame
Resilient Open Fiber Matrix
Low-Waste Maintenance

Request a Quote Browse Products

Product Introduction

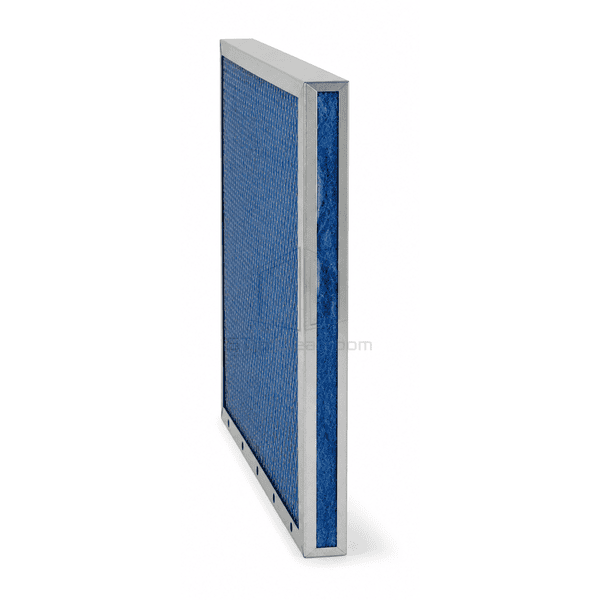

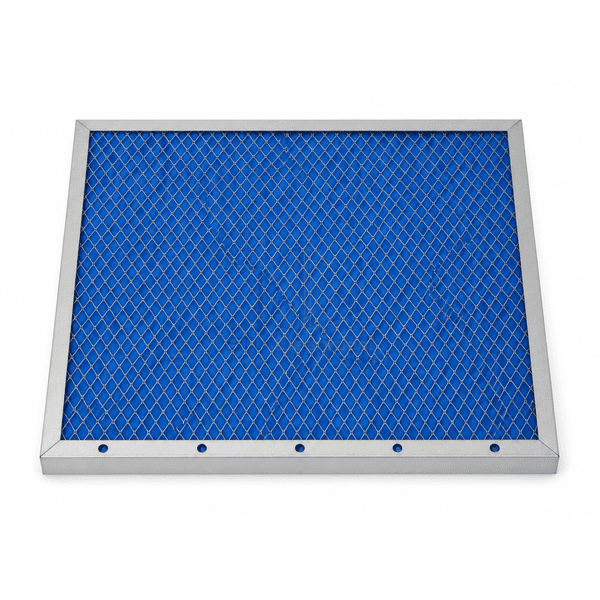

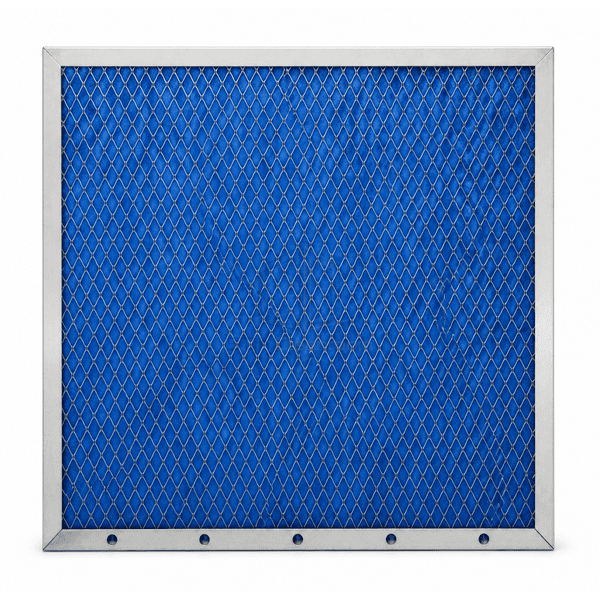

The washable synthetic pre-filter uses a springy bonded polyester or resin-cured synthetic fiber pad held between protective screens in a rigid aluminum frame. The open, three-dimensional fiber matrix captures coarse airborne debris while recovering its thickness after normal washing and drying. Removable retainers allow damaged media to be replaced without discarding the frame. This construction suits accessible air-handling equipment where scheduled cleaning is practical and the operator wants to reduce disposable panel consumption.

Key Features

A thermally bonded fiber matrix resists slumping and springs back after careful washing.

Protective face screens prevent handling damage while leaving most of the media area open.

The extruded aluminum frame tolerates repeated removal and reinstallation in filter tracks.

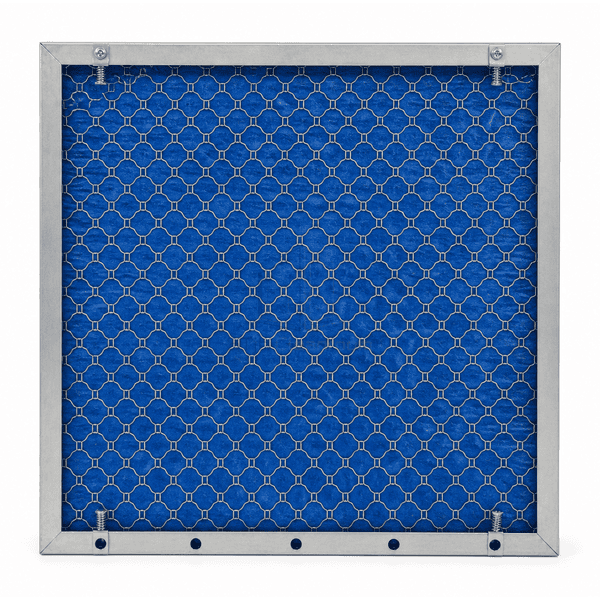

Replaceable media and retaining clips extend the service life of the reusable frame assembly.

Customer Product Concerns

A reusable filter only saves cost when its media survives cleaning and is returned completely dry, flat and correctly sealed.

Disposable coarse panels create high waste volume in dusty installations.A bonded synthetic pad can be removed, washed, dried and returned to its aluminum frame for multiple cycles.

Loose fibers shed from low-grade pads after rinsing or compressed-air cleaning.Thermally or resin-bonded synthetic fibers maintain a coherent matrix without an oily tackifier.

Wet media is reinstalled and transfers moisture into the air handler.The removable open pad drains readily and is dried completely before being placed back in service.

Repeated filter removal bends light frames and creates rack bypass.A rigid extruded aluminum perimeter and reinforced corners preserve the sealing plane.

Typical Applications

Washable AHU first-stage filtersFan-coil and packaged-unit returnsWorkshop and warehouse ventilationFresh-air louvers with service accessPrefiltration ahead of carbon or fine filters

Technical Parameters

Typical construction ranges for a framed washable synthetic pre-filter are listed below.

Core Material	Thermally bonded polyester or resin-bonded synthetic coarse-filter media
Panel Thickness	25 or 50 mm nominal framed depth
Effective Width	300-610 mm standard face width
Maximum Length	Up to 1220 mm with intermediate screen support
Steel Facing Thickness	0.50-0.80 mm perforated aluminum or galvanized protective screen
Core Density	Approximately 35-60 kg/m³ bonded synthetic media bulk density
Thermal Conductivity	Approximately 0.040-0.050 W/(m·K) for the dry polyester pad
Surface Finish	Natural blue, green or black washable media with anodized or mill-finish aluminum frame
Joint Type	Replaceable pad retained between removable face screens in an extruded metal frame
Customization	Available based on the intended application and operating environment.

Available Options

Polyester or rigid synthetic fiber mediaFlat or lightly pleated padAluminum, galvanized or stainless frameRemovable media retaining clips
