VOC Molecular Air Filter

A high-capacity activated-carbon cell designed to adsorb volatile organic compounds and solvent vapours from process, make-up or recirculated air.

High-Surface-Area Carbon
VOC Adsorption
Low Bypass Construction
Replaceable Media Cell

Request a Quote Browse Products

Product Introduction

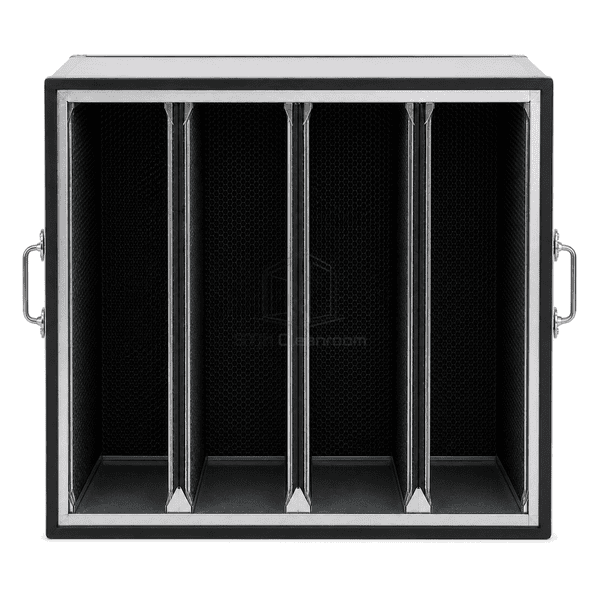

This VOC filter contains virgin coconut-shell or coal-based activated carbon selected for non-polar organic vapours. The adsorbent is packed into a rigid V-bank or box cell to combine a large media mass with practical airflow. Internal screens and seals eliminate edge bypass and limit carbon fines. It is commonly preceded by particulate filtration so dust does not block the carbon pores, and it may be followed by a final filter where product cleanliness is critical.

Key Features

Microporous activated carbon provides a broad adsorption surface for many organic vapours.

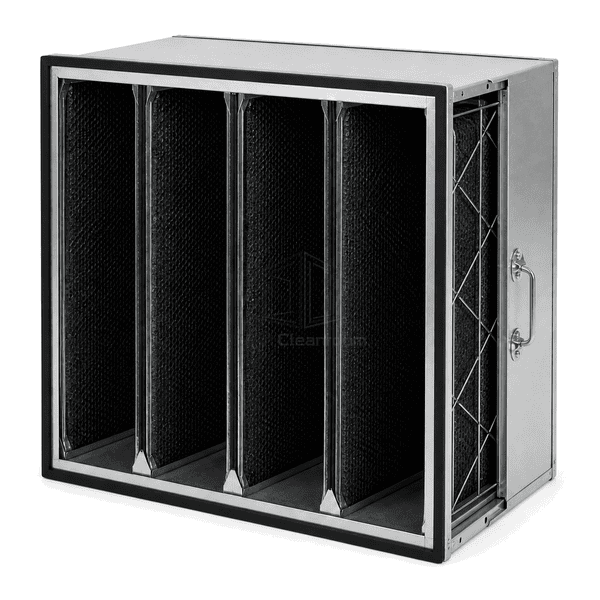

A deep or V-bank bed carries substantially more adsorbent than a thin carbon pad.

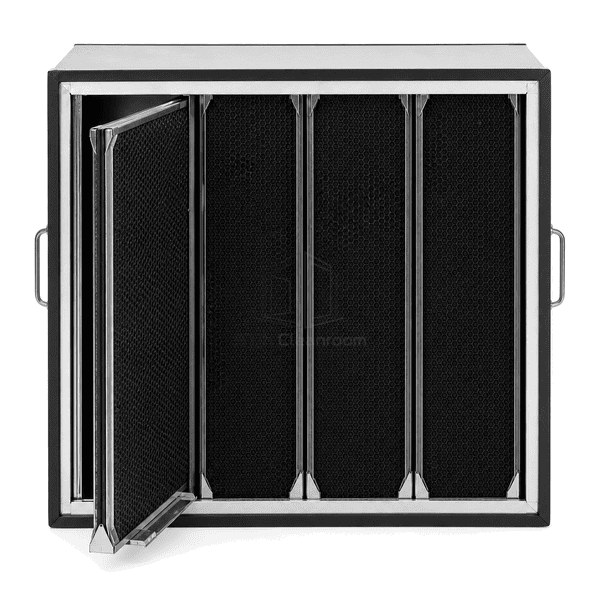

Internal media screens reduce carbon migration into the downstream system.

Gasketed frame interfaces suit front- or side-access filter housings.

Customer Product Concerns

Low-boiling solvents and process VOCs pass through particle filters and may contaminate products or create persistent odour.

A carbon-coated pad saturates quickly during routine solvent use.A deep bed increases usable carbon mass and extends the adsorption interval.

High humidity occupies adsorption sites and shortens filter life.Media grade and airflow residence time are selected for the expected humidity and VOC family.

Dust loads the carbon surface before it can adsorb vapour.An upstream fine-particle stage protects pores and preserves molecular capacity.

Unsealed filter edges let untreated air bypass the media bed.Continuous gaskets and bonded internal joints close the frame-to-housing path.

Typical Applications

Solvent-handling cleanroomsPrinting and coating areasLaboratory recirculation airElectronics production make-up airOdour control in occupied technical spaces

Technical Parameters

Common construction ranges for a deep-bed VOC molecular filter are listed below.

Core Material	Virgin activated carbon selected for hydrocarbons, solvents and broad-spectrum VOC adsorption
Panel Thickness	150–292 mm overall filter depth
Effective Width	305–610 mm nominal face width
Maximum Length	Up to 762 mm nominal face height

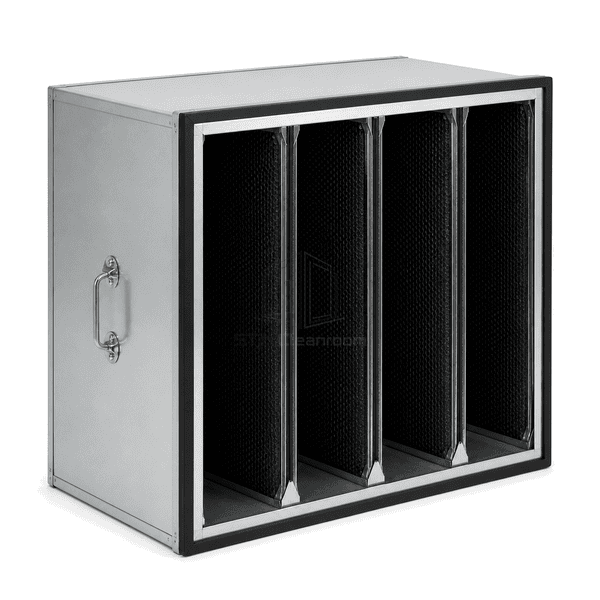

Steel Facing Thickness	0.7–1.2 mm galvanized or stainless-steel frame and retainers
Core Density	420–560 kg/m³ packed activated-carbon bulk density
Thermal Conductivity	0.09–0.18 W/(m·K) for packed activated carbon
Surface Finish	Galvanized steel, brushed stainless steel or low-emission powder coat
Joint Type	Sealed deep-bed or V-bank cell with continuous polyurethane or neoprene gasket
Customization	Available based on the intended application and operating environment.

Available Options

Coconut-shell or coal-based carbonBox or V-bank geometryScrim-controlled low-dust constructionHeader or box-frame mounting
