Cleanroom Utility Systems
UV Water Sterilizer
An inline ultraviolet reactor that applies a controlled germicidal UV dose to process water without adding a chemical disinfectant.
- Chemical-free UV treatment
- 316L hygienic reactor
- Real-time lamp monitoring
Product Introduction

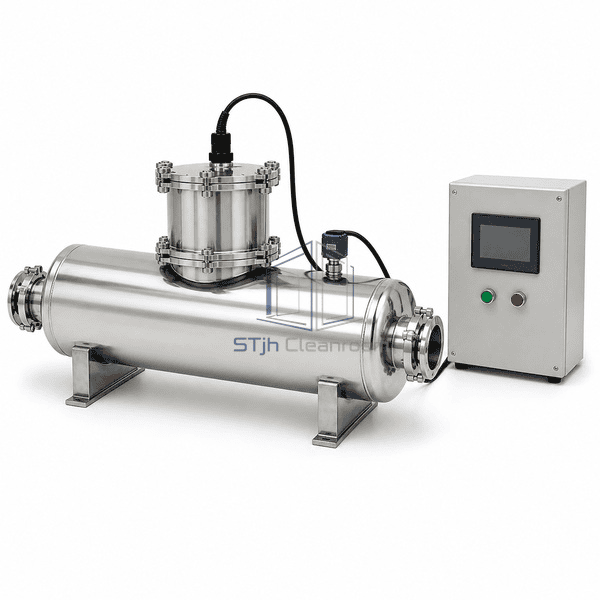

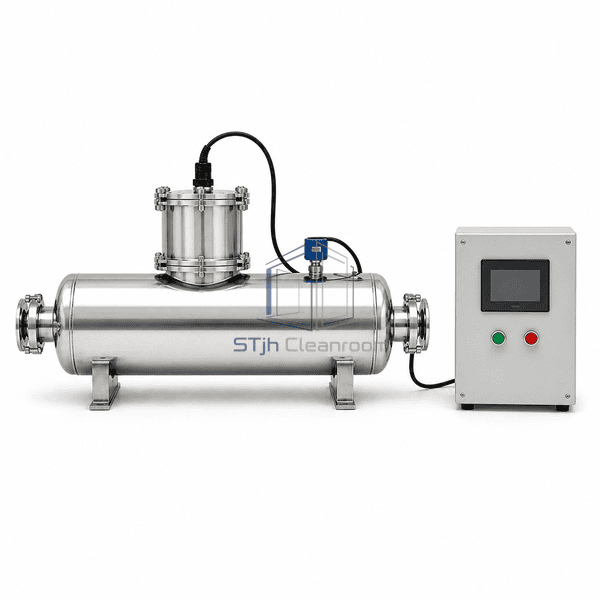

The UV water sterilizer directs water through a polished stainless chamber surrounding a protected ultraviolet lamp. A matched power supply, UV sensor and operating controller help maintain the selected treatment dose while sanitary connections integrate the unit into purified-water or process-water piping.
Key Features
Quartz lamp sleeve
UV intensity sensor
Lamp operating-hour monitoring

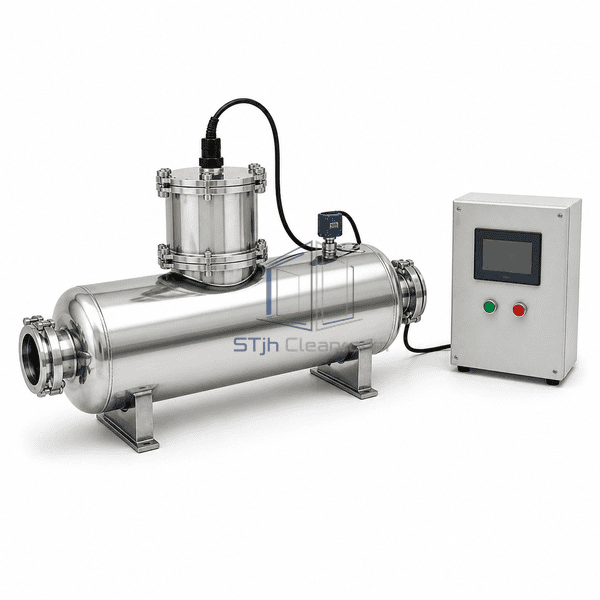

Sanitary clamp process ports

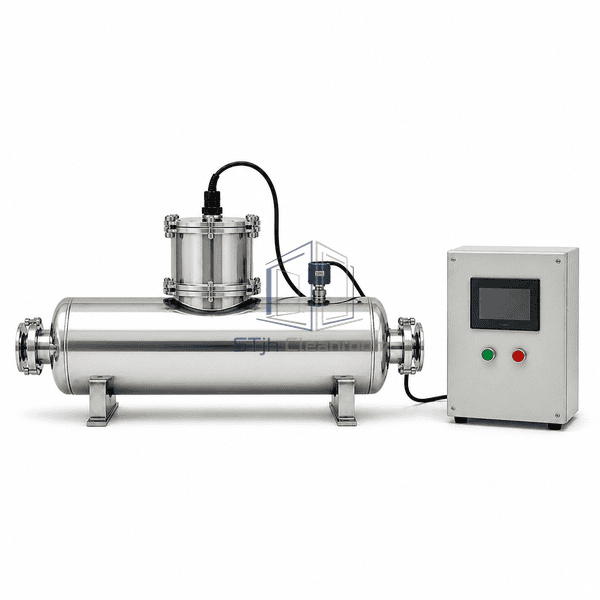

Separate electrical control cabinet
Low-pressure or medium-pressure lamp selection
Vertical or horizontal installation
Customer Product Concerns
Effective UV treatment requires adequate water transmittance, verified lamp output, correct hydraulic exposure and routine sleeve maintenance.
Lamp ageing reduces delivered doseMonitor UV intensity and operating hours and replace lamps at the planned service interval.
Mineral film blocks UV transmissionInspect and clean the quartz sleeve according to feed-water quality and runtime.
High flow shortens exposure timeSize the chamber and lamp power for peak flow and measured UV transmittance.
Operators cannot verify treatment statusUse continuous UV output, lamp-fault and flow-interlock signals at the controller.
Typical Applications
Purified Water distribution loopsWFI loop microbial controlRO pretreatment biofouling controlProcess-water disinfectionFood and beverage ingredient water
Technical Parameters
Reactor size, lamp technology, electrical power and monitoring range are selected from peak flow, UV transmittance and target dose.
| Core Material | 316L stainless steel reactor with fused-quartz lamp sleeve |
|---|---|
| Panel Thickness | Reactor wall typically 2.0–6.0 mm |
| Effective Width | Reactor diameter typically 100–600 mm |
| Maximum Length | Complete reactor length typically up to 2200 mm |
| Steel Facing Thickness | Control enclosure sheet typically 1.2–2.0 mm |
| Core Density | 316L stainless steel density approximately 8000 kg/m³ |
| Thermal Conductivity | 316L stainless steel approximately 15 W/(m·K) at ambient temperature |
| Surface Finish | Electropolished or mechanically polished product-contact chamber with satin external finish |
| Joint Type | Sanitary clamp process ports with sealed quartz sleeve and threaded sensor/service ports |
| Customization | Available based on the intended application and operating environment. |
Available Options
Low- or medium-pressure UV lampAutomatic sleeve wipingUV transmittance sensorFlow meter interlockRemote status communicationVertical mountingAlternative control enclosure rating
Planning a UV Water Sterilizer specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
