Uninterruptible Power Supply

An online UPS system that conditions incoming power and maintains critical cleanroom controls through short supply interruptions.

Double-Conversion Power Path
Modular Battery Backup
Automatic Static Bypass
Networked Battery Monitoring

Request a Quote Browse Products

Product Introduction

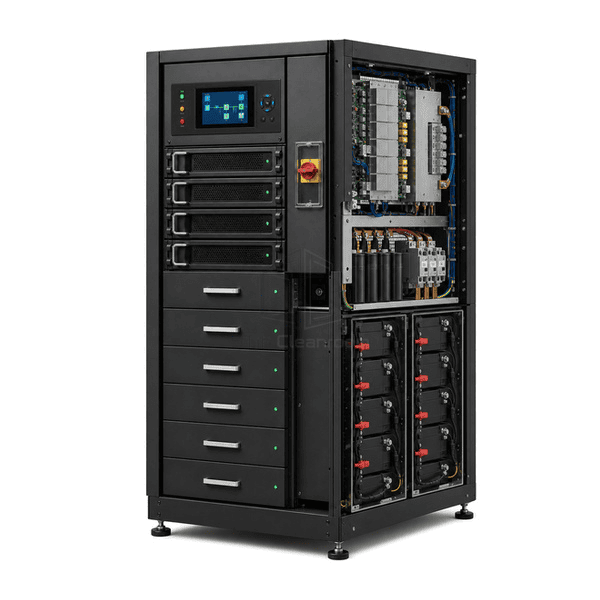

The UPS rectifies the incoming supply to a DC bus and continuously regenerates a stable AC output through its inverter. Rechargeable battery modules support the DC bus when utility power is lost, while an automatic static bypass provides an alternate path for overload or internal fault conditions. A local color display and network card report load, runtime, battery health and alarm state.

Key Features

Continuous conversion isolates critical loads from common voltage variation.

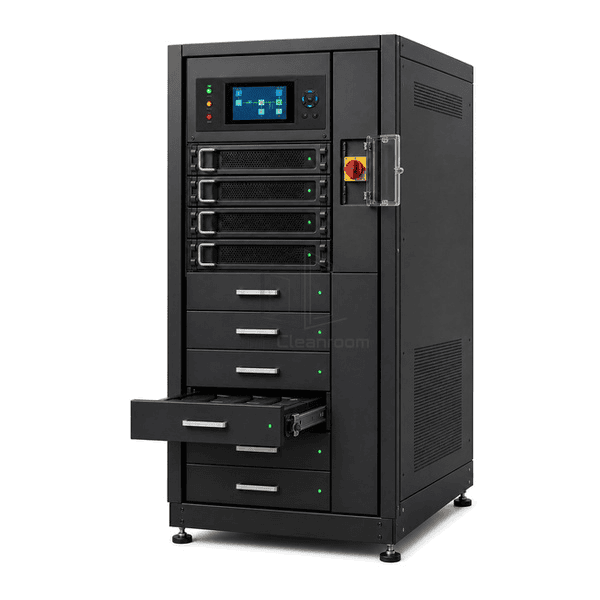

Hot-serviceable battery modules allow capacity to be matched to required runtime.

The static bypass transfers the load without a mechanical switching delay.

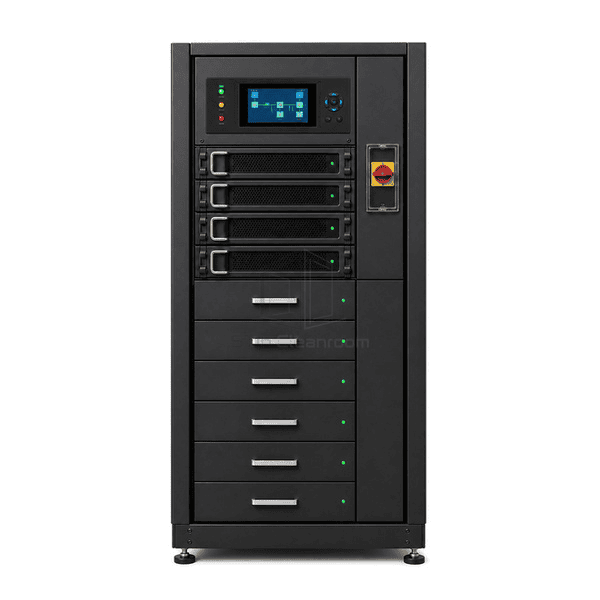

A front display presents load percentage, battery condition and active alarms.

Network monitoring sends power events to the facility management system.

Customer Product Concerns

Backup power must preserve control and data continuity while making battery condition and remaining runtime visible before an outage occurs.

A brief utility dip restarts controllers and interrupts batch records.The continuously energized inverter maintains a stable output through input disturbances.

Battery capacity degrades unnoticed between maintenance visits.Monitored battery modules report health and replacement conditions.

UPS maintenance requires a complete load shutdown.A static and optional maintenance bypass provides an alternate supply path.

Operators overload the unit as new equipment is connected.The display and network interface show real-time load headroom and alarm thresholds.

Typical Applications

Cleanroom control systemsEnvironmental monitoring serversAccess and interlock controlsCritical laboratory instruments

Technical Parameters

Typical configurable construction ranges for an uninterruptible power supply are listed below.

Core Material	Powder-coated steel rack or tower enclosure with rectifier, inverter, static bypass, control electronics and battery modules
Panel Thickness	450-900 mm cabinet or rack depth
Effective Width	440-800 mm enclosure width
Maximum Length	Up to 2000 mm overall cabinet height
Steel Facing Thickness	1.0-1.8 mm powder-coated steel chassis and access panels
Core Density	Approximately 7850 kg/m³ for the structural steel enclosure
Thermal Conductivity	45-60 W/(m·K) for the carbon-steel chassis
Surface Finish	White, light-grey or black powder-coated cabinet with color LCD and green/amber/red status indicators

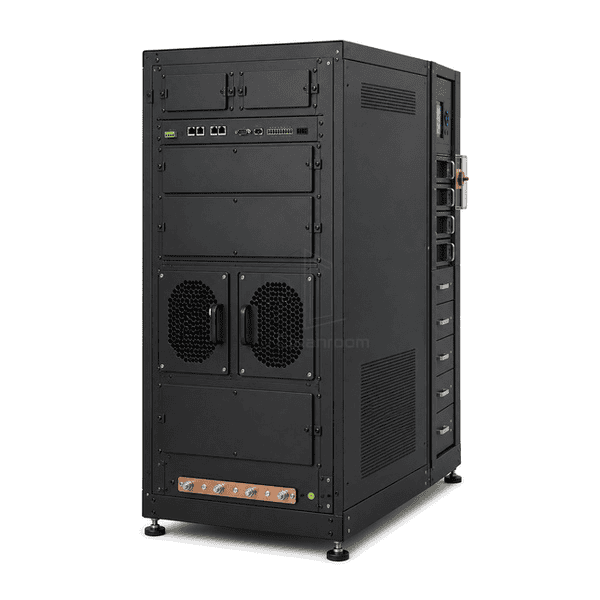

Joint Type	Modular rack or tower chassis with plug-in power/battery modules, protected terminals and bypass connection
Customization	Available based on the intended application and operating environment.

Available Options

Single- or three-phase input/outputLithium-ion or valve-regulated lead-acid batteriesExternal maintenance bypassNetwork management card
