Cleanroom Flooring Systems

Thin-Film Epoxy Floor Coating

A roller-applied epoxy coating that seals sound concrete and provides an economical, bright finish for light-duty controlled areas.

Economical Concrete Sealer
0.15–0.40 mm Film
Roller-Applied Finish
Easy Routine Cleaning

Request a Quote Browse Products

Product Introduction

Thin-film epoxy floor coating is a primer-and-topcoat system intended for sound, level concrete exposed mainly to pedestrian use and light wheeled traffic. The low-build resin penetrates and seals the prepared surface, reducing concrete dust and creating a uniform colored finish without the material consumption of a self-leveling screed. It is well suited to clean support rooms and circulation areas where the slab is already flat and heavy impact, deep chemical exposure or crack accommodation are not primary requirements.

Key Features

The roller-applied system seals concrete dust at a lower installed build than a poured resin screed.

A pigmented film increases light reflectance and makes dirt or spills easier to identify during inspection.

Multiple thin coats provide more even coverage and fewer holidays than one overloaded roller pass.

Localized recoating can refresh traffic lanes after cleaning and mechanical surface preparation.

Customer Product Concerns

Light-duty rooms need dust control and washability, but a thick industrial screed may add unnecessary cost and downtime.

Bare concrete releases fine dust into adjacent controlled spaces.A penetrating primer and epoxy finish bind the surface and close exposed cement paste.

Dark or stained slabs make routine housekeeping inspection difficult.A uniform light-colored coating improves visibility of residue, leaks and wear.

A thick self-leveling floor is unnecessary in a pedestrian-only room.The 0.15–0.40 mm coating provides practical protection with lower resin consumption.

Roller marks and patchy gloss make a small clean area look unfinished.Controlled coverage, cross-rolling and a second finish coat produce more consistent color and sheen.

Typical Applications

Cleanroom change areasLight-duty laboratoriesUtility corridorsInspection roomsControlled storage rooms

Technical Parameters

Representative construction data for a two- or three-coat thin-film epoxy system are provided below.

Core Material	Two-part pigmented epoxy coating over a compatible penetrating epoxy primer
Panel Thickness	0.15–0.40 mm total dry film thickness
Effective Width	Typically 3000–6000 mm roller application bay width
Maximum Length	Typically up to 25000 mm continuous coated run between slab joints
Steel Facing Thickness	0 mm; the floor coating contains no steel facing layer
Core Density	Approximately 1200–1450 kg/m³ for mixed coating resin
Thermal Conductivity	Typically 0.25–0.38 W/(m·K) for the cured epoxy film
Surface Finish	Smooth gloss or low-sheen roller finish with optional fine anti-slip additive

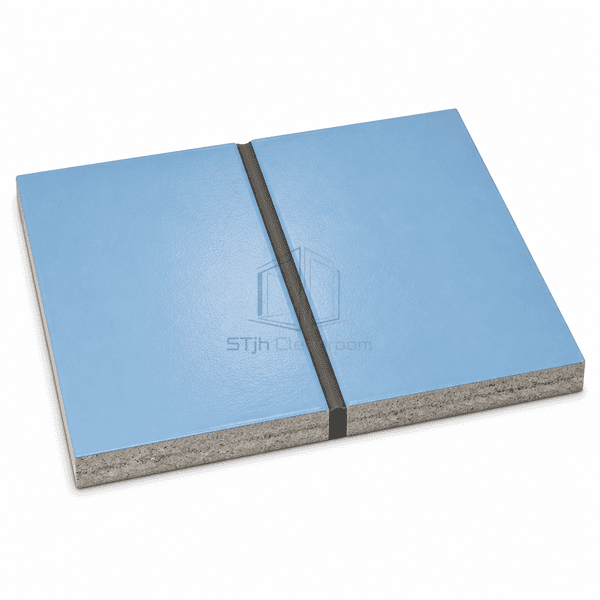

Joint Type	Multi-coat bonded film with cracks repaired before coating and slab movement joints left active
Customization	Available based on the intended application and operating environment.

Available Options

Two-coat or primer-plus-two-coat buildGloss or low-sheen finishFine slip additive for entrancesColored walkways and line marking

Planning a Thin-Film Epoxy Floor Coating specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
