Cleanroom Control and Environmental Monitoring Systems

Remote Alarm Module

A distributed I/O module that collects local alarm contacts, drives remote indicators and reports point status to a cleanroom central alarm or monitoring system.

Isolated Alarm Inputs
Configurable Relay Outputs
Local Point LEDs
Networked Distributed I/O

Request a Quote Browse Products

Product Introduction

The remote alarm module places alarm acquisition close to cleanroom equipment, sensors or utility panels. Isolated digital inputs receive dry contacts or selected voltage states, and local LEDs show channel condition during service. Relay outputs can operate beacons, sounders or shutdown interlocks under central or local logic. RS-485 or Ethernet communication transfers point status, channel diagnostics and output commands to the central system, reducing long individual cable runs from every alarm point.

Key Features

Galvanically isolated inputs protect central electronics from field wiring disturbances.

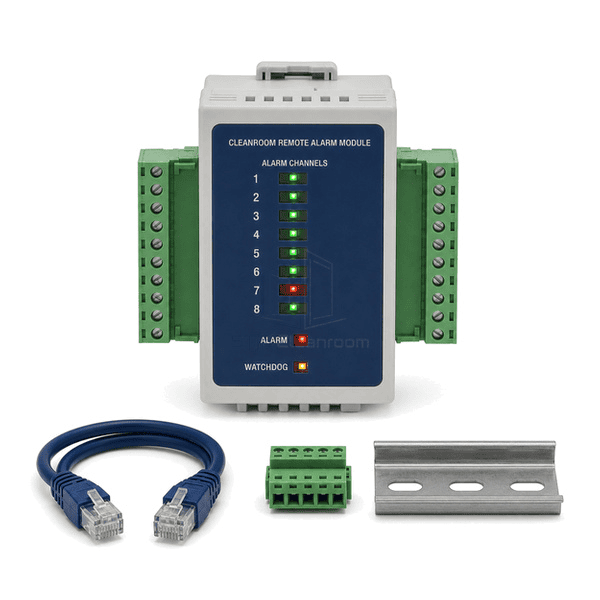

Local channel LEDs show input and relay state without opening software tools.

Distributed placement reduces the amount of home-run alarm cable across the facility.

Watchdog and communication-fault indication distinguish a network problem from a normal input.

Customer Product Concerns

Distributed alarm I/O must preserve channel identity and reveal communication loss rather than silently freezing the last known state.

Dozens of alarm contacts require long home-run cables to the central panel.A local module aggregates nearby points onto one supervised communication link.

Technicians cannot see whether an input is active at the field cabinet.Per-channel LEDs show physical input and commanded output states locally.

A field voltage transient damages the central alarm controller.Isolated inputs and relays separate remote wiring from the communication electronics.

Network loss leaves the operator believing all remote points are normal.Watchdog and heartbeat monitoring generate a dedicated module-offline alarm.

Typical Applications

Remote cleanroom alarm zonesUtility equipment contactsGas and leak detector outputsDoor and airlock alarm collection

Technical Parameters

Typical construction values for a distributed cleanroom remote alarm I/O module are listed below.

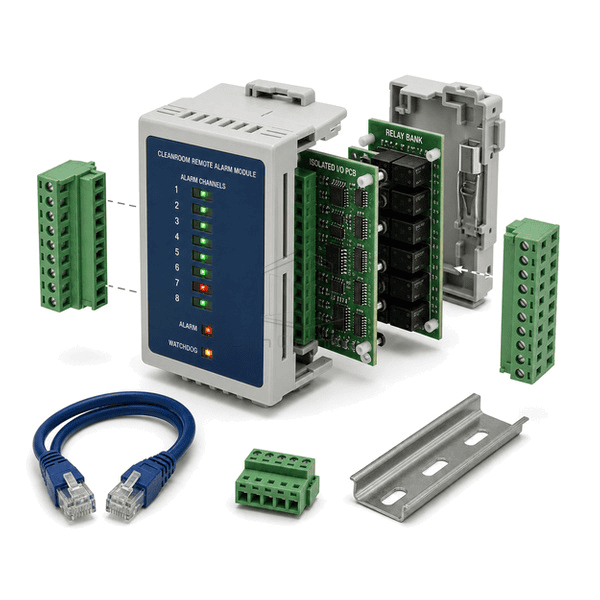

Core Material	FR-4 isolated I/O board with copper relay contacts in flame-retardant polycarbonate DIN-rail housing
Panel Thickness	80-130 mm module depth
Effective Width	45-160 mm DIN-rail width
Maximum Length	Up to 180 mm module height
Steel Facing Thickness	0 mm; non-metallic DIN-rail enclosure
Core Density	1180-1450 kg/m³ for reinforced polymer housing
Thermal Conductivity	0.19-0.35 W/(m·K) for polymer enclosure material
Surface Finish	Light-gray DIN-rail housing with green input LEDs, red alarm LEDs and blue network label

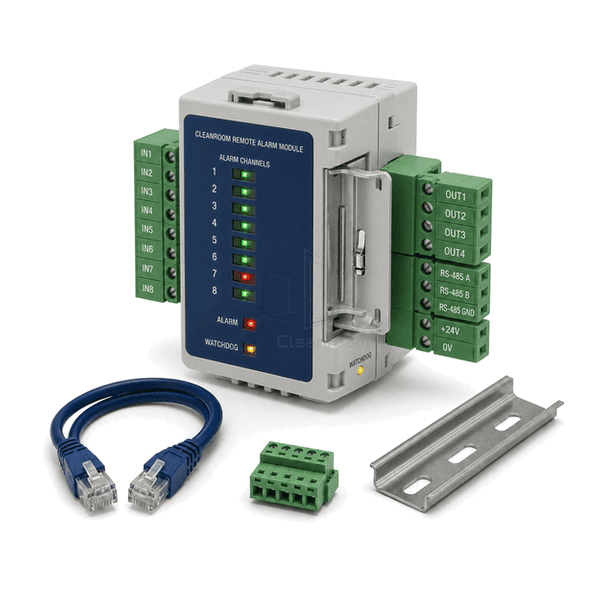

Joint Type	DIN-rail clip with removable input-output terminals and RS-485 or Ethernet connector
Customization	Available based on the intended application and operating environment.

Available Options

Digital input and relay combinationsModbus RTU or TCPLocal fail-safe logicGasketed field enclosure
