Conveyor pass-through chamber in complete stainless three-quarter view

Cleanroom Material Handling and Storage

Pass-Through Conveyor

A stainless conveyor pass-through chamber with interlocked gasketed doors, HEPA filtration and automated roller transfer.

Interlocked transfer tunnel separates adjacent cleanliness zones
Conveyorized path reduces manual handling during material transfer
HEPA-filtered chamber supports controlled purge between door cycles

Request a Quote Browse Products

Product Introduction

This conveyorized pass-through combines a cleanable stainless tunnel, transparent access doors at opposite ends, a continuous roller bed and a top fan-filter module. The control system sequences doors and conveyor movement so the two zone openings are not exposed simultaneously.

Key Features

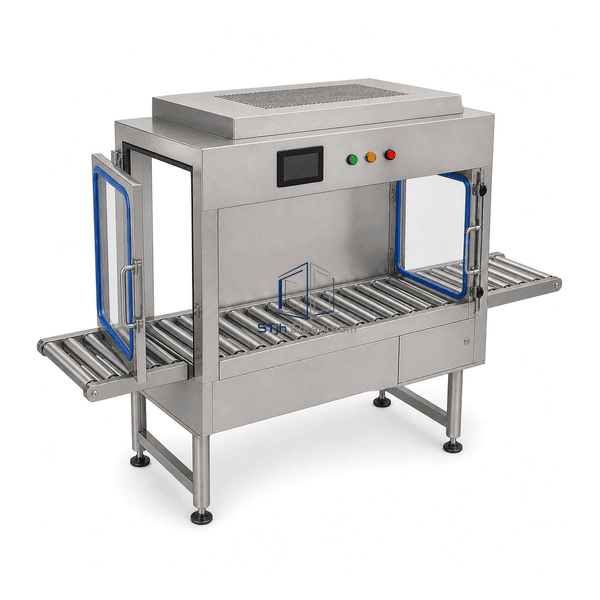

Door interlock prevents both transfer openings from being open together.

HEPA-filtered airflow supports chamber purge between cycles.

Integrated rollers move compatible trays without entering the tunnel.

Transparent doors provide load and chamber visibility.

Smooth internal panels reduce difficult-to-clean ledges.

Customer Product Concerns

Frequent material passage can disrupt pressure separation and increase handling at the boundary between controlled areas.

Both rooms being exposed at onceThe control interlock permits only one access door to open.

Particles remaining after loadingA timed HEPA purge refreshes chamber air before the next door cycle.

Manual reaching into the transfer chamberThe roller conveyor advances compatible loads through the tunnel.

Poor cycle visibilityTransparent doors and status controls show chamber condition.

Typical Applications

Automated tray and container transfer between packaging, preparation, filling, inspection and controlled storage zones.

Technical Parameters

Chamber length, conveyor height, door actuation, purge timing and roller drive are configured around the material flow and room pressure strategy. Sensors and programmable controls coordinate load detection with the interlock sequence.

Core Material	Type 304 stainless steel tunnel, roller conveyor and H14 HEPA fan-filter module
Panel Thickness	30–50 mm double-wall chamber sections
Effective Width	500–1000 mm clear transfer width
Maximum Length	Up to 2500 mm overall conveyorized module length
Steel Facing Thickness	1.2–2.0 mm
Core Density	7930 kg/m³ nominal stainless steel density
Thermal Conductivity	Approximately 16.2 W/(m·K) at room temperature
Surface Finish	Fine-brushed and passivated stainless steel with smooth internal panels
Joint Type	Seam-welded tunnel with interlocked gasketed lift doors and modular sealed roller conveyor
Customization	Available based on the intended application and operating environment.

Available Options

Powered or gravity rollers, vertical lift or swing doors, barcode tracking, purge timers, pressure monitoring, ESD configuration and custom conveyor interfaces.
