Cleanroom Utility Systems
Ozone Sanitization System
An integrated skid that generates ozone on demand, mixes it into process water and monitors residual concentration for controlled cold sanitization.
- On-demand ozone generation
- Monitored residual concentration
- Stainless contact and mixing path
Product Introduction

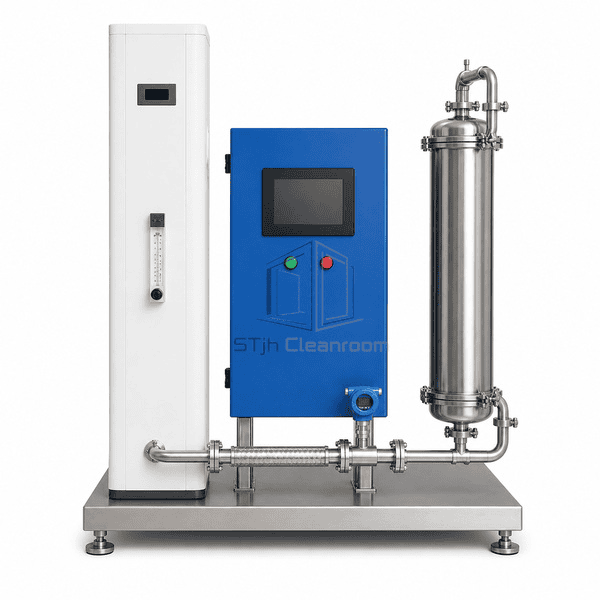

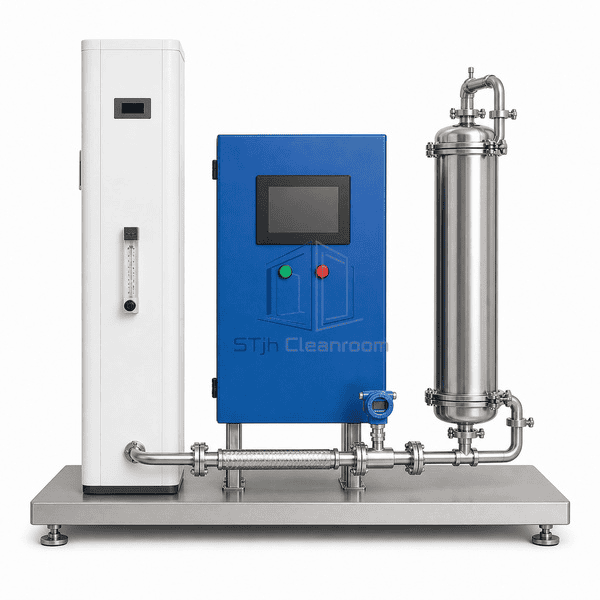

The ozone sanitization system combines oxygen preparation, corona-discharge ozone generation, controlled gas dosing, water-side mixing and residual monitoring. Ozone is produced at the point of use and transferred through a stainless contact path to sanitize storage and distribution equipment without leaving a persistent chemical residue.
Key Features
Oxygen feed preparation

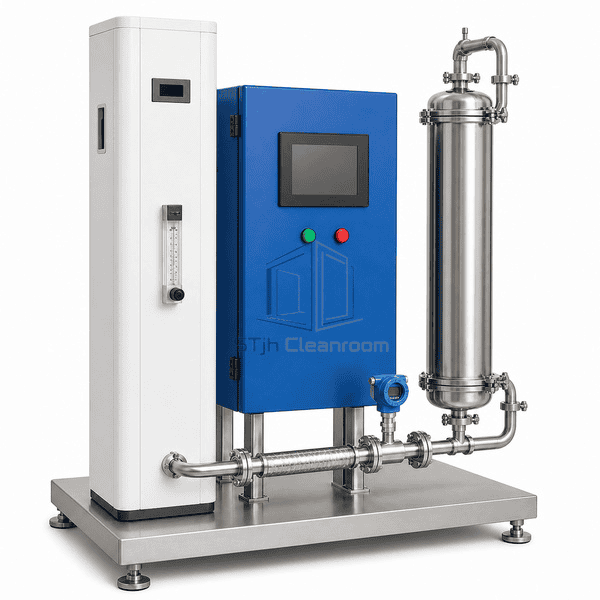

Stainless injector and static mixing loop

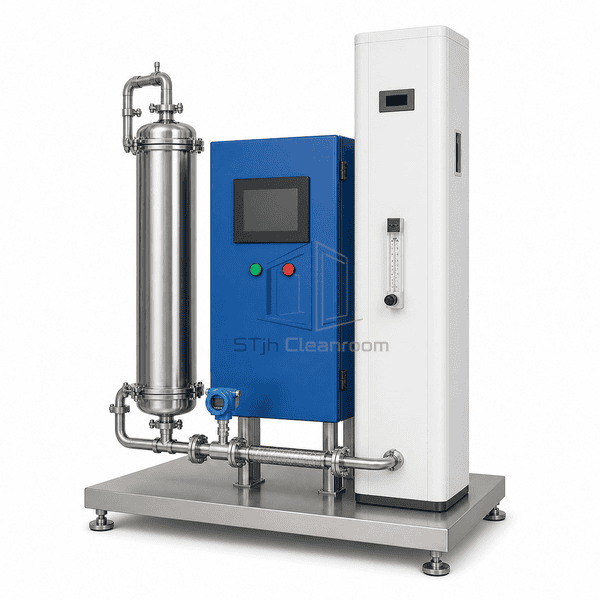

Contact vessel
Dissolved ozone monitoring
Off-gas connection
Flow or residual-based output control
Integrated HMI and safety interlocks
Customer Product Concerns
Stable ozone sanitization requires controlled gas production, efficient dissolution, adequate contact time and verified removal before sensitive points of use.
Ozone transfer into water is inconsistentUse a sized injector and static mixing section matched to water flow and backpressure.
Residual concentration is unknownMeasure dissolved ozone continuously and modulate generator output from the selected setpoint.
Undissolved ozone accumulates in equipmentProvide a defined off-gas path and compatible ozone destructor where required.
Residual ozone reaches downstream processesCoordinate sanitization timing and apply a suitable UV ozone-destruction step before use.
Typical Applications
Purified Water tank sanitizationPharmaceutical distribution loopsBeverage process-water treatmentCosmetic manufacturing waterCold sanitization of hygienic vessels
Technical Parameters
Generator capacity, oxygen feed, mixer, contact volume and instrumentation are selected from water flow, ozone demand and sanitization cycle.
| Core Material | 316L stainless steel wetted piping and contact vessel with ozone-compatible seals |
|---|---|
| Panel Thickness | Contact vessel wall typically 2.0–6.0 mm |
| Effective Width | Skid width typically 800–1800 mm |
| Maximum Length | Complete skid height or length typically up to 2600 mm |
| Steel Facing Thickness | Generator enclosure and skid sheet typically 1.5–3.0 mm |
| Core Density | 316L stainless steel density approximately 8000 kg/m³ |
| Thermal Conductivity | 316L stainless steel approximately 15 W/(m·K) at ambient temperature |
| Surface Finish | Polished wetted stainless surfaces with satin skid and powder-coated generator cabinet |
| Joint Type | Sanitary-clamp or orbital-weld water path with ozone-rated compression tubing on the gas side |
| Customization | Available based on the intended application and operating environment. |
Available Options
Oxygen concentrator or oxygen supply interfaceDissolved ozone sensorOff-gas destructorContact tank sizeUV ozone destruction integrationRemote communicationStainless generator enclosure
Planning a Ozone Sanitization System specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
