Modular Cleanroom Ceiling Panel

A lightweight suspended ceiling module with an aluminum honeycomb core, smooth coated-steel underside and four-side framing for accurate installation around lights, filters and access components.

Lightweight Ceiling Module
Aluminum Honeycomb Core
Factory Service Cut-Outs
Four-Side Suspension Frame

Request a Quote Browse Products

Product Introduction

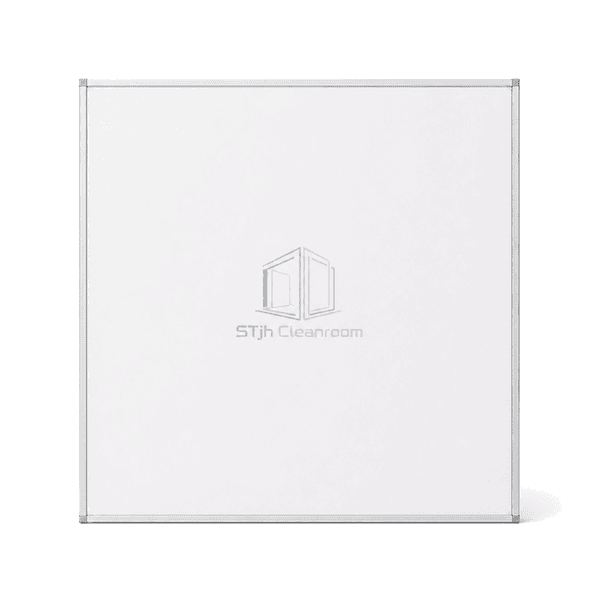

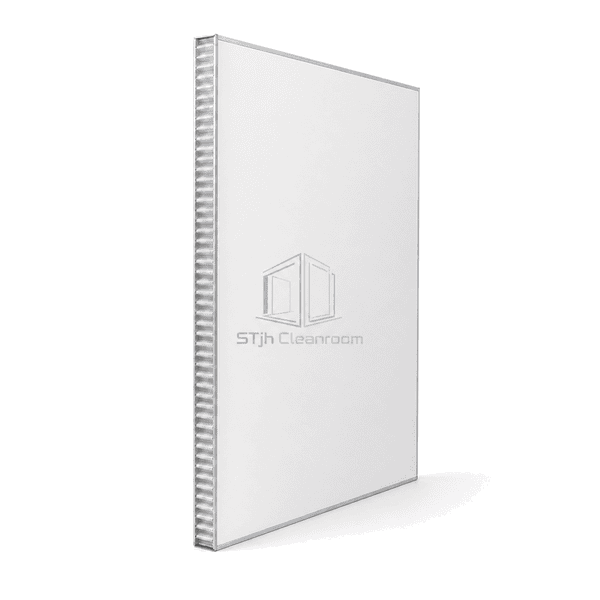

The Modular Cleanroom Ceiling Panel uses expanded aluminum honeycomb to support a broad steel surface with low overhead mass. An aluminum perimeter frame closes the cellular core and provides precise bearing points within the suspended ceiling system. The room-side skin remains smooth and non-shedding, while prepared apertures receive lighting, HEPA housings, diffusers and monitoring devices. Standard modules are intended for supported ceiling grids rather than routine foot traffic, making them efficient for facilities that use separate access walkways above the ceiling.

Key Features

Closely spaced aluminum cells support the facing and limit visible waviness.

Low module weight reduces dead load on the suspension structure.

The metallic core contains no loose mineral fibres above the controlled space.

Perimeter extrusions protect every cut edge and register accurately in the ceiling grid.

Prepared apertures reduce drilling debris when filters and luminaires are installed.

Customer Product Concerns

Ceiling selection commonly focuses on overhead weight, panel sag, clean service openings and access strategy above the room.

Heavy ceiling infill increases the demand on hangers and primary steelwork.An aluminum honeycomb core provides a stiff surface with comparatively low mass.

Field-cut filter and light openings can leave sharp, exposed cellular edges.Factory-framed apertures close the core and present finished bearing surfaces for equipment.

Large unsupported faces may show ripples under bright cleanroom lighting.Uniform honeycomb support maintains close contact with the room-side skin across the module.

Personnel may accidentally treat a standard ceiling tile as an access platform.A separate service walkway and clearly defined access points keep foot loads off non-walkable modules.

Typical Applications

Semiconductor cleanroom ceilingsPharmaceutical packaging roomsResearch laboratory ceilingsMedical-device inspection areasControlled assembly spaces with separate service walkways

Technical Parameters

These dimensions describe a lightweight aluminum-honeycomb panel for a supported modular cleanroom ceiling.

Core Material	3003-series aluminum honeycomb with four-side aluminum frame
Panel Thickness	50 mm
Effective Width	1200 mm
Maximum Length	3000 mm
Steel Facing Thickness	0.50 mm
Core Density	Approximately 27 kg/m³
Thermal Conductivity	0.11–0.15 W/(m·K)
Surface Finish	PVC-laminated, polyester-coated or PET-faced galvanized steel

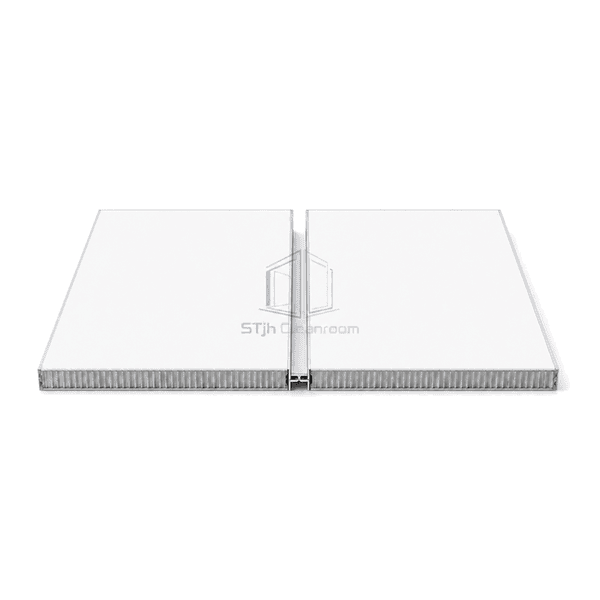

Joint Type	Four-side aluminum frame with PVC or aluminum cruciform tongue
Customization	Module sizes and factory cut-outs are available for the intended ceiling layout and equipment mix

Available Options

HEPA filter and light fixture aperturesPVC, PET or polyester room-side finishRemovable access hatch moduleMatching suspension profiles and hanger hardware
