Laminar Flow and Containment Equipment

Mobile Transfer Isolator

A sealed wheeled barrier chamber that protects materials during movement and docks to compatible process equipment or transfer ports at the destination.

Sealed Mobile Chamber
Battery-Supported Air Handling
Process Docking Interface
Glove-Assisted Transfer

Request a Quote Browse Products

Product Introduction

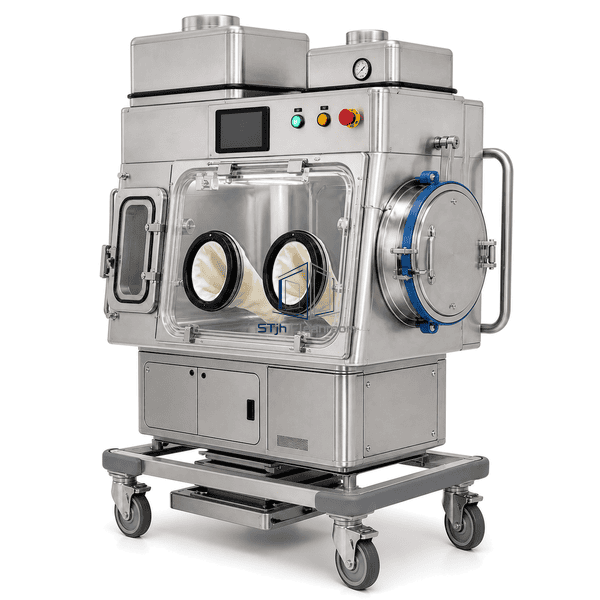

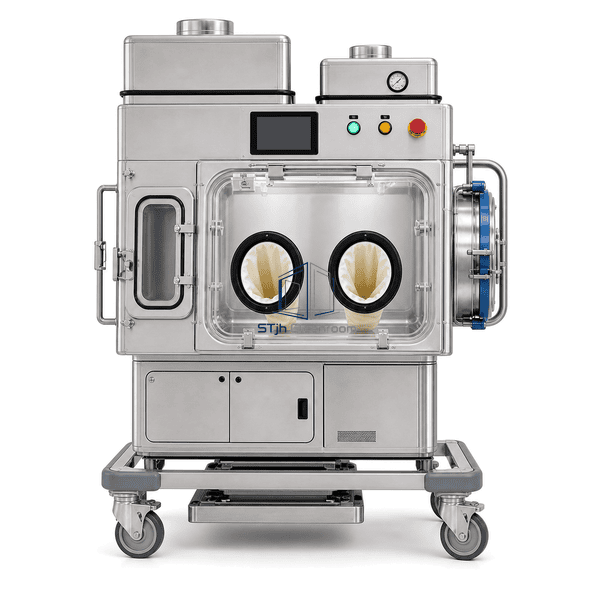

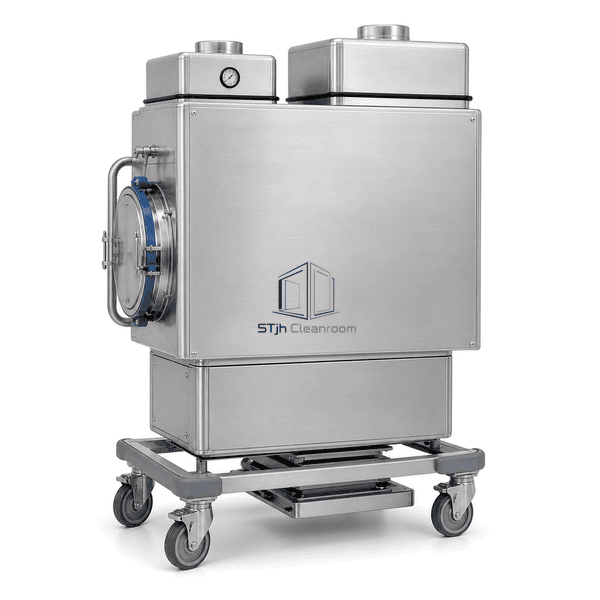

The mobile transfer isolator carries sterile or contained items inside a pressure-controlled chamber mounted on a low-vibration caster chassis. An onboard battery can maintain filtration and chamber pressure while the unit is disconnected from facility power. At the destination, a docking cone, rapid transfer port or gasketed door connects the chamber to compatible equipment. Glove ports allow final positioning without opening the barrier, and brakes plus leveling pads stabilize the isolator before transfer.

Key Features

A sealed chamber protects contents throughout movement between process locations.

Onboard battery power can maintain the selected air-handling mode during transit.

A guided docking interface aligns the mobile chamber with the receiving equipment.

Glove access supports final manipulation after the isolator is docked.

Four-point braking and leveling secure the chassis during connection.

Customer Product Concerns

A mobile barrier must keep pressure and filtration stable during movement, then dock without creating a new open transfer step.

Filtration stops when the unit is unplugged.An onboard battery maintains the blower and controls for the planned transfer period.

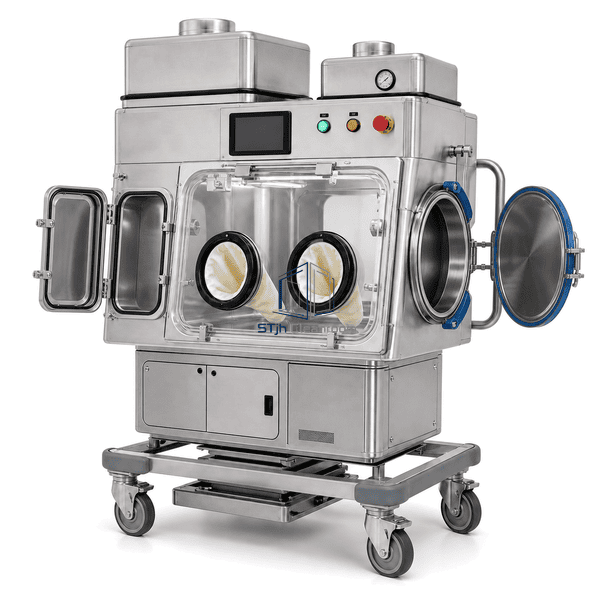

The mobile chamber is difficult to align with the process port.Guide pins, bumpers and adjustable leveling support repeatable docking.

Opening a door at the destination breaks the barrier.A rapid transfer port or double-door docking interface preserves the closed path.

Caster movement strains the dock seal.Brakes and leveling feet carry the chassis load before the connection is opened.

Typical Applications

Sterile component transferContained sample transportMovement between isolators and filling linesProtected transfer through lower-grade corridors

Technical Parameters

Typical configurable construction ranges for a mobile transfer isolator are listed below.

Core Material	Welded SUS316L mobile chamber with safety glass, glove ports and a reinforced stainless caster chassis
Panel Thickness	40-80 mm double-skin chamber and fan sections
Effective Width	600-1400 mm usable transfer width
Maximum Length	Up to 2500 mm overall mobile length
Steel Facing Thickness	1.5-2.5 mm SUS316L chamber; 2.0-3.0 mm chassis members
Core Density	Approximately 8000 kg/m³ for SUS316L structural material
Thermal Conductivity	14-16 W/(m·K) for austenitic stainless steel
Surface Finish	Fine-brushed or electropolished SUS316L with cleanroom-compatible non-shedding casters
Joint Type	Pressure-tight welded chamber with gasketed docking interface, sealed glove rings and bolted caster chassis
Customization	Available based on the intended application and operating environment.

Available Options

Positive- or negative-pressure modeBattery and charging systemRapid transfer or gasketed docking portInternal shelves and retention rails
