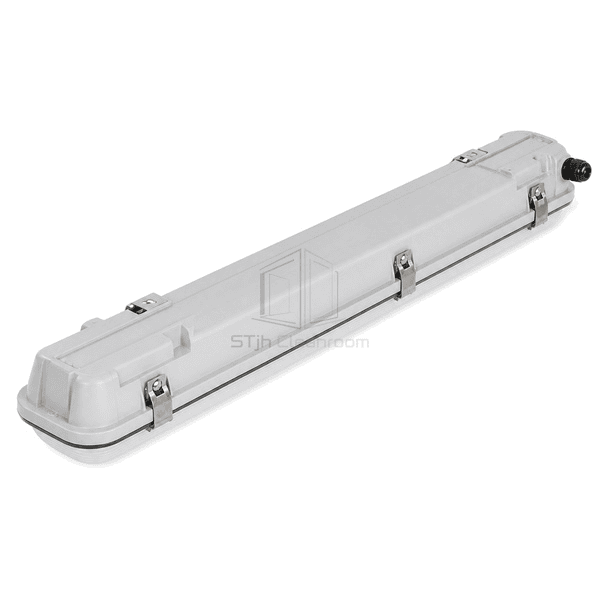

IP-rated cleanroom LED luminaire with sealed white housing and opal lens

Cleanroom Lighting and Electrical Equipment

IP-Rated Cleanroom Light

A water- and dust-resistant LED fixture for controlled areas that combine hygienic cleaning with occasional spray or high humidity.

Sealed Optical Chamber
Washdown-Ready Exterior
Stainless Captive Fasteners
Gasketed Cable Connection

Request a Quote Browse Products

Product Introduction

This fixture uses a robust lens frame, closed-cell perimeter gasket and protected cable connection to resist the entry of cleaning water and airborne dust. Its room-side hardware is stainless or concealed, while the lens sits smooth-side out for easy wiping. The enclosure can be supplied in coated steel, aluminum or stainless steel to suit the expected cleaning chemistry and condensation exposure.

Key Features

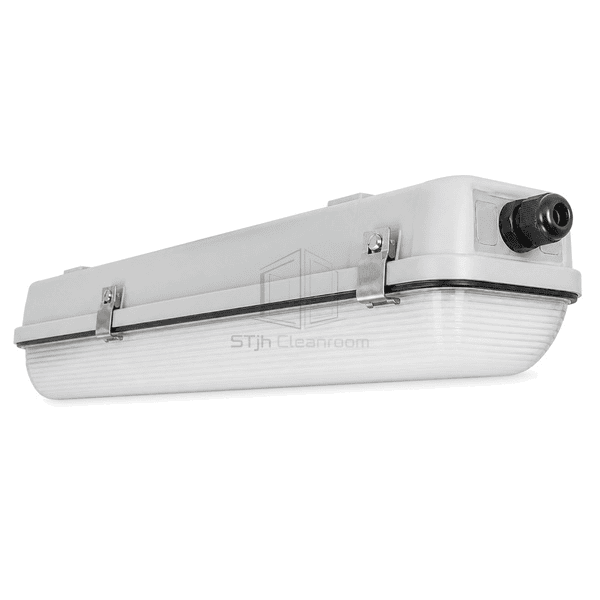

A continuous molded or closed-cell gasket seals the optical door against the housing.

Smooth-side-out lens orientation avoids deep exterior prisms.

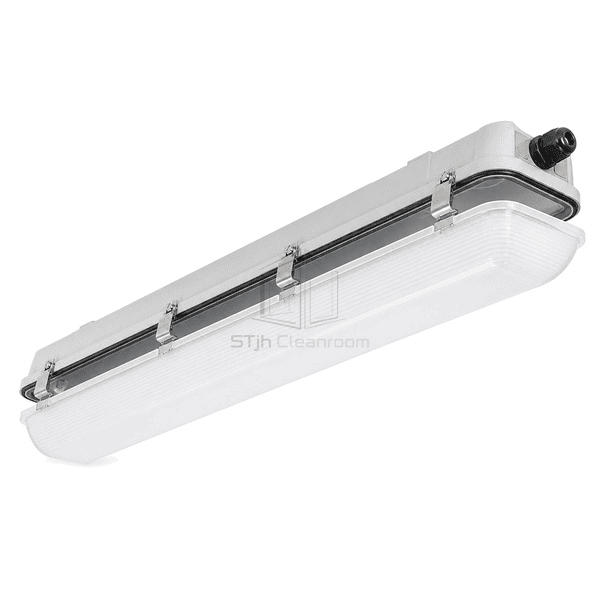

Stainless captive hardware resists corrosion during repeated damp cleaning.

A gasketed conduit plate or cable gland closes the wiring route.

Internal drainage-free geometry keeps the room-side surface free of pockets.

Customer Product Concerns

Moisture resistance depends on the complete enclosure, not merely on using a waterproof LED board inside an open fixture.

Cleaning spray enters around an ordinary hinged lens door.A continuous compressed gasket closes the complete optical perimeter.

Zinc-plated screws discolor after repeated disinfectant exposure.Stainless captive hardware protects the exposed fastening points.

Water follows the supply cable through an open knockout.A correctly sized compression gland seals around the cable sheath.

Deep lens ribs hold droplets and residue.The smooth optical surface faces the room for direct drying and wiping.

Typical Applications

Washdown clean areasFood and beverage clean zonesHumid process roomsPharmaceutical utility corridors

Technical Parameters

Typical configurable construction ranges for an IP-rated cleanroom LED luminaire are listed below.

Core Material	Coated steel, aluminum or stainless enclosure with LED modules and impact-resistant polycarbonate optic
Panel Thickness	70-140 mm enclosure depth
Effective Width	150-650 mm exposed fixture width
Maximum Length	Up to 1500 mm overall luminaire length
Steel Facing Thickness	0.9-1.5 mm coated or stainless sheet-metal housing
Core Density	Approximately 1200 kg/m³ for the polycarbonate optical cover
Thermal Conductivity	0.20-0.22 W/(m·K) for the polycarbonate lens
Surface Finish	Smooth white powder coat or brushed stainless steel with clear or opal polymer lens
Joint Type	Compression-gasketed optical frame with stainless captive fasteners and sealed conduit or cable entry
Customization	Available based on the intended application and operating environment.

Available Options

Surface or recessed mountingPolycarbonate or tempered-glass lensHigh-humidity driver packageStainless steel enclosure

Planning a IP-Rated Cleanroom Light specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
