Cleanroom Wall and Ceiling Systems

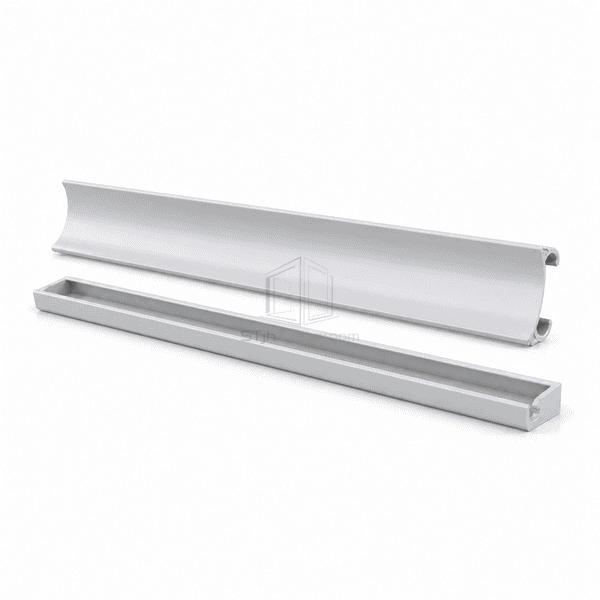

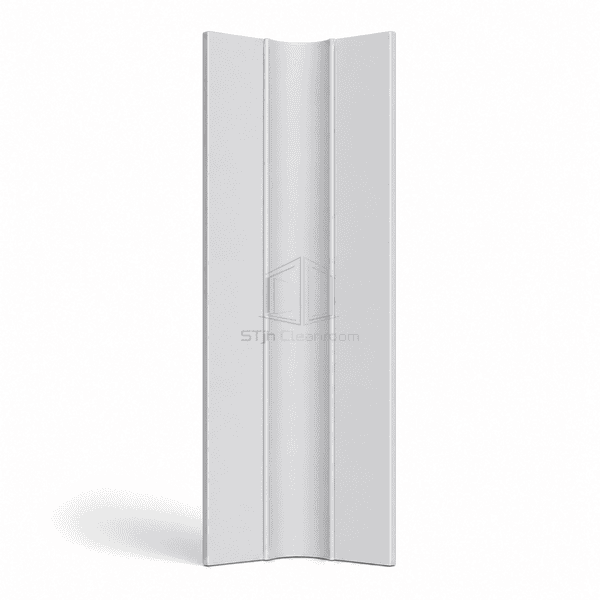

Internal Cleanroom Coving Profile

A radiused two-part aluminum cove that replaces a sharp internal junction with a smooth, cleanable transition inside controlled rooms.

Smooth 50 mm internal radius
Two-part clip-on construction
Cleanable powder-coated surface
Suitable for wall, floor and ceiling junctions

Request a Quote Browse Products

Product Introduction

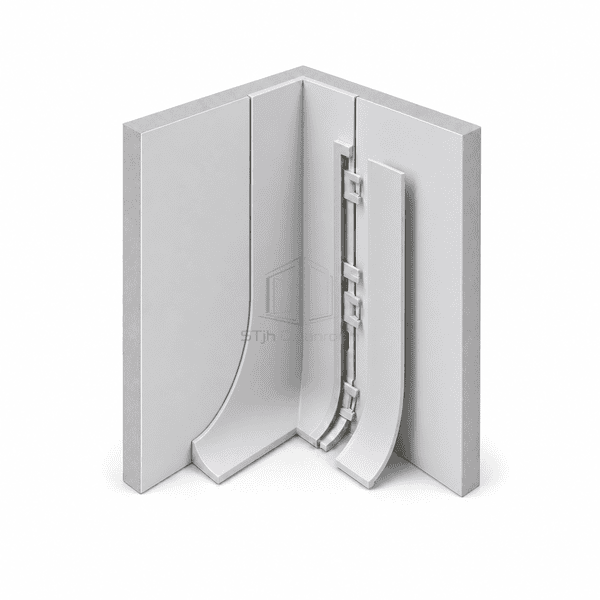

The Internal Cleanroom Coving Profile forms a continuous concave radius where two room surfaces meet. A concealed backing section is fixed first, then the finished cove face clips into position to cover fasteners and bridge the junction. The rounded geometry makes wiping easier than a tight square corner and can remain in place while compatible wall panels are removed from nearby bays.

Key Features

The concave radius eliminates a difficult-to-reach sharp internal corner.

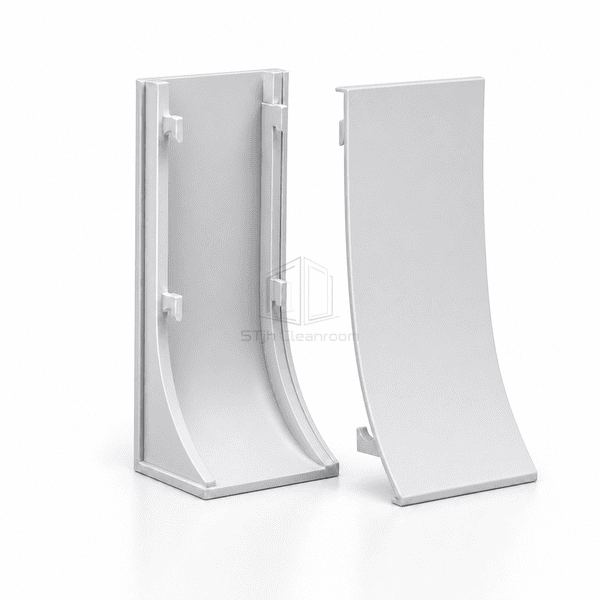

A separate backing channel keeps primary fixings behind the finished face.

Clip-on assembly creates an even exposed line along long room junctions.

Powder-coated aluminum tolerates routine wipe-down cleaning.

Matching end caps and three-way pieces can finish intersecting cove runs.

Customer Product Concerns

Sharp internal corners are awkward to wipe, visually emphasize sealant irregularities and can collect residue at the meeting point of two surfaces.

Cleaning cloths cannot maintain full contact inside a tight 90-degree recess.A 50 mm concave radius creates a broad, accessible wiping path.

Exposed fixings interrupt the surface at a hygiene-critical junction.The finished cove snaps over its backing channel and conceals the attachment points.

Hand-formed corner sealant often varies in width and appearance.A factory-extruded face establishes a uniform radius along the entire run.

Complex corner intersections require improvised cuts that are hard to seal neatly.Compatible end, internal and three-way accessories provide shaped termination pieces.

Typical Applications

Wall-to-ceiling cleanroom junctionsWall-to-wall internal cornersWall-to-floor perimeter transitionsHygienic laboratory interiorsPharmaceutical processing rooms

Technical Parameters

This profile is a finishing component rather than an insulated panel. Its defining dimension is the internal radius and its material properties come from the aluminum extrusion.

Core Material	Two-part 6063 aluminum backing channel and cove face
Panel Thickness	N/A — not applicable to an internal coving profile
Effective Width	50 mm standard internal cove radius
Maximum Length	3000 mm
Steel Facing Thickness	N/A — the profile is extruded aluminum
Core Density	N/A — no insulated core; aluminum alloy density is approximately 2700 kg/m³
Thermal Conductivity	N/A — no insulated core; aluminum alloy is approximately 200 W/(m·K)
Surface Finish	White polyester powder-coated or clear anodized
Joint Type	Snap-on cove face over a concealed backing channel with sealed edges
Customization	Available based on the intended application and operating environment

Available Options

50 mm radius internal coveAlternative 75 mm radiusThree-way internal corner pieceEnd caps and matching sealed transitions

Planning a Internal Cleanroom Coving Profile specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
