Laminar Flow and Containment Equipment
Glovebox Isolator

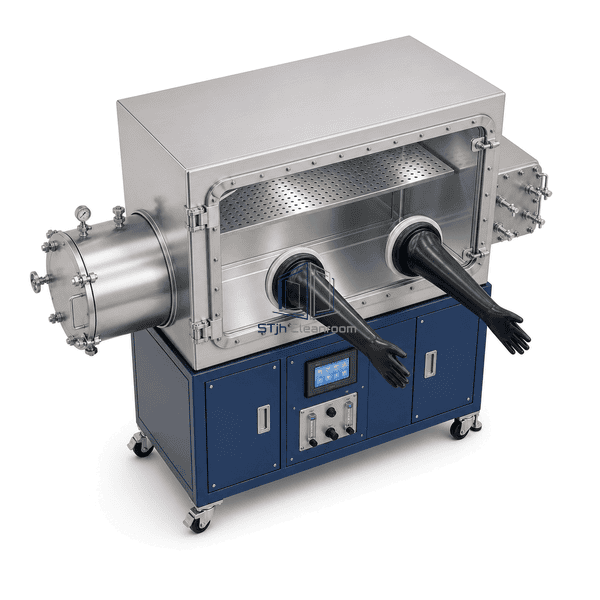

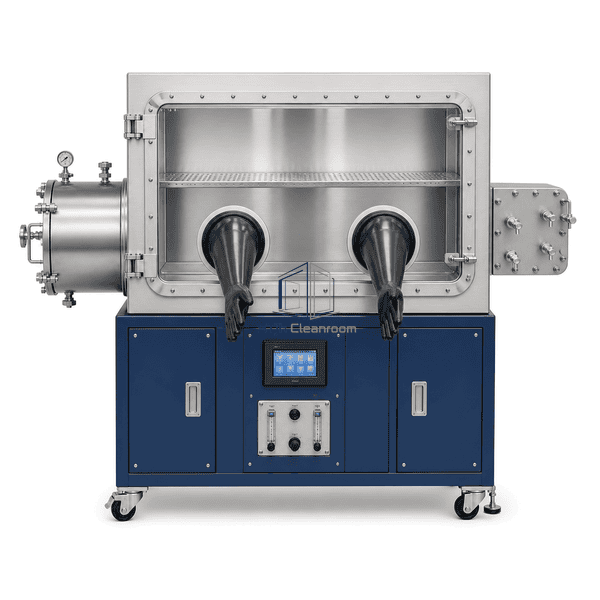

A modular closed chamber that uses glove ports to separate operators from a selected clean, contained or inert process environment.
- Modular Closed Chamber
- Replaceable Glove Ports
- Positive Negative or Inert Operation
- Configurable Transfer Airlock
Product Introduction
The glovebox isolator is a flexible base platform for processes that need physical separation but do not require a dedicated filling, pharmacy or sterility-test layout. The welded stainless chamber can be configured for filtered positive pressure, filtered negative pressure or inert-gas operation. Glove ports, shelves and service penetrations are arranged around the equipment, while an attached transfer airlock controls material movement. Pressure mode and filtration are selected for the actual product and operator-protection need.
Key Features

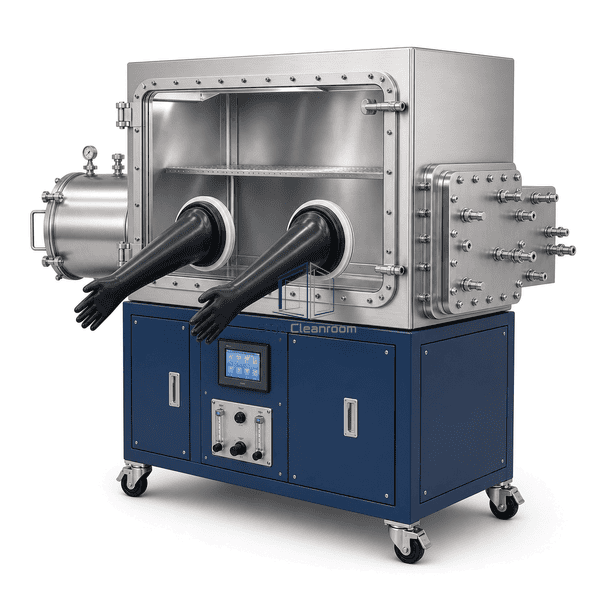

Replaceable glove rings permit different glove materials and port positions.

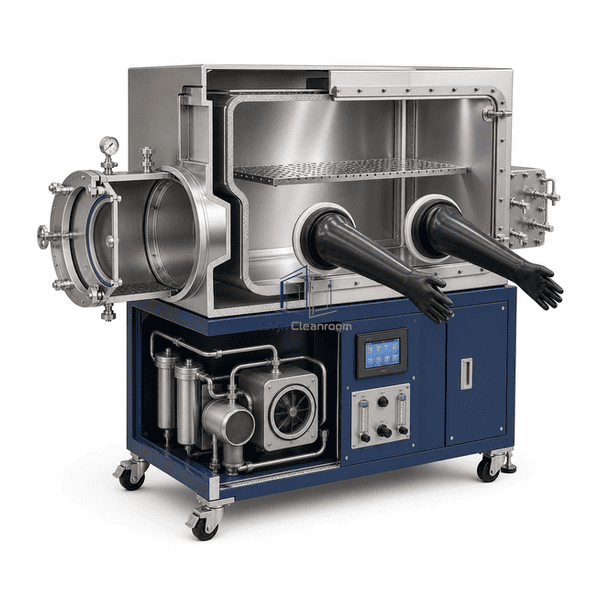

A transfer airlock isolates material entry from the main work chamber.
Blank service plates accept utilities without field-cutting the pressure shell.
Modular chamber lengths allow a small test setup or longer process train.
Customer Product Concerns
A general glovebox must be configured from the process need rather than assuming one pressure direction or one gas-handling method.
A standard chamber has glove ports in unusable positions.Port locations are set from equipment reach and manipulation studies.
New utilities require drilling through the finished chamber.Replaceable sealed service plates accept planned electrical and process connections.
Material loading exposes the working atmosphere.A separate transfer airlock preserves the main chamber condition.
One pressure mode is assumed for unrelated applications.Positive, negative or inert operation is selected according to product and operator needs.
Typical Applications
Closed laboratory processingMoisture-sensitive handlingSmall-scale powder containmentProtected component assembly
Technical Parameters
Typical configurable construction ranges for a modular glovebox isolator are listed below.
| Core Material | Welded SUS304 or SUS316L chamber with laminated safety glass and interchangeable glove assemblies |
|---|---|
| Panel Thickness | 40-80 mm double-skin chamber and utility sections |
| Effective Width | 900-3000 mm usable chamber width |
| Maximum Length | Up to 5000 mm modular chamber length |
| Steel Facing Thickness | 1.5-3.0 mm SUS304 or SUS316L pressure shell |
| Core Density | Approximately 7900-8000 kg/m³ for austenitic stainless steel |
| Thermal Conductivity | 14-16 W/(m·K) for austenitic stainless steel |
| Surface Finish | Fine-brushed or electropolished stainless interior with clear laminated viewing panels |
| Joint Type | Pressure-tight welded chamber with bolted sealed service plates, glove rings and transfer-airlock flange |
| Customization | Available based on the intended application and operating environment. |
Available Options
Positive, negative or inert atmosphereSUS304 or SUS316L chamberTransfer airlock or rapid portTwo to eight glove positions
Planning a Glovebox Isolator specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
