Cleanroom Installation Accessories

Firestop Sealant

A flexible firestop joint compound for closing smoke paths at cleanroom construction joints and compatible penetration-system interfaces.

Smoke-Tight Joint Closure
Movement-Capable Seal
Low-Shrink Application
System-Compatible Detailing

Request a Quote Browse Products

Product Introduction

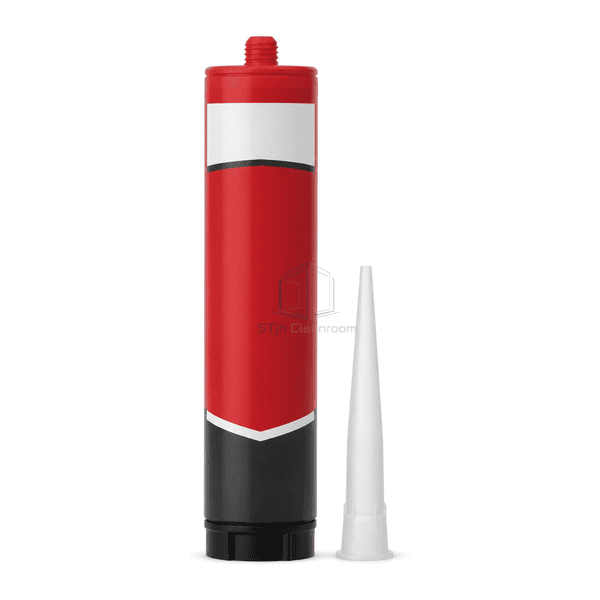

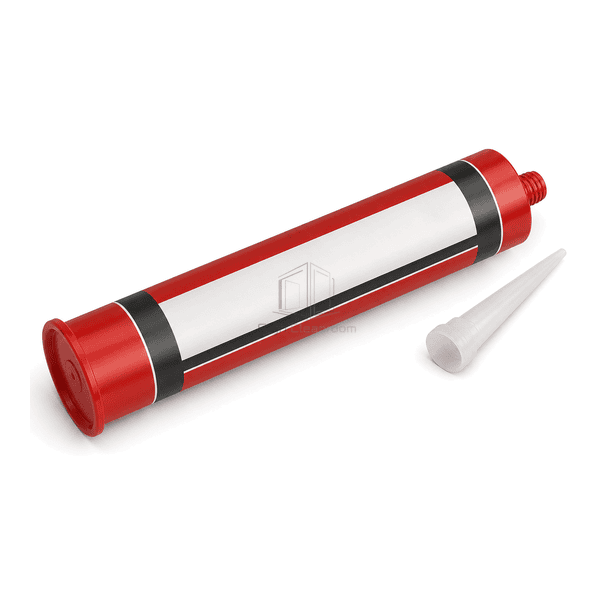

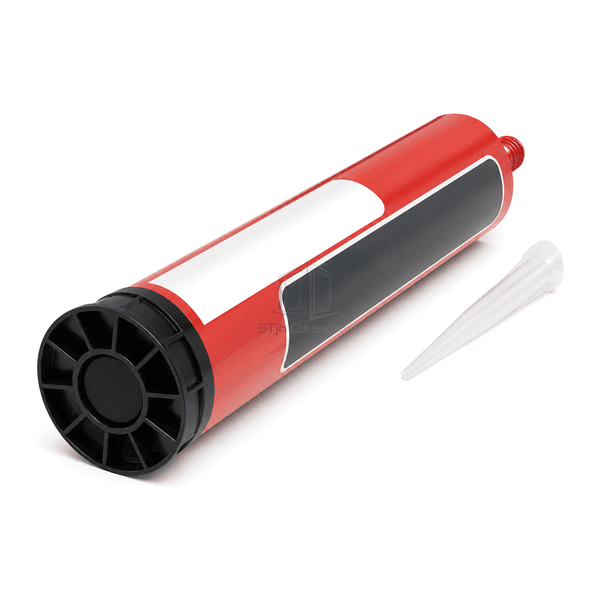

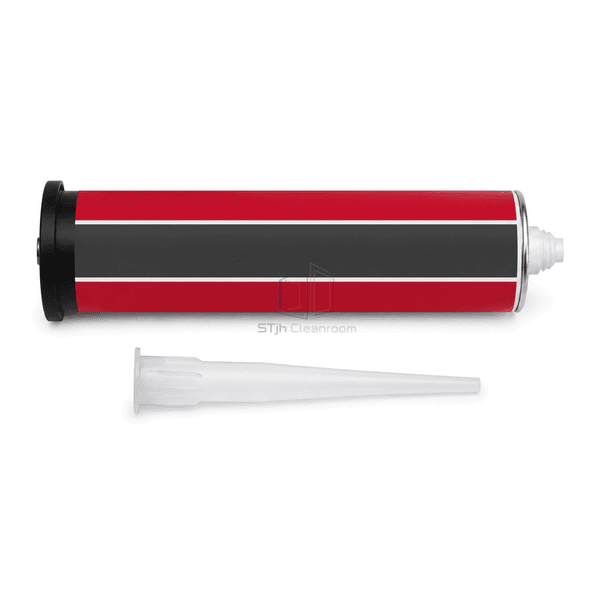

Firestop sealant is a cartridge-applied compound used as the exposed seal component in tested wall, floor and service-penetration arrangements. The non-sag paste is tooled over the specified backing material to create a continuous smoke-resistant joint while retaining the movement capability needed at modular panel and building interfaces. Selection is based on the complete supporting construction, opening geometry and service conditions rather than on sealant alone.

Key Features

Non-sag consistency supports controlled installation in vertical and overhead joint openings.

Elastic grades accommodate cyclic movement at perimeter and construction joints.

Low-shrink curing helps preserve contact with prepared joint flanks.

Red or contrasting compounds make installed coverage easier to inspect before enclosure.

Customer Product Concerns

A fire-resisting cleanroom interface must close smoke paths while remaining compatible with the complete wall, backing and penetration arrangement.

Sealant selected independently of the supporting assembly may not suit the opening geometry.Joint width, depth, backing, substrates and services are matched as one defined firestop system.

Building movement can split a rigid perimeter seal and create a smoke path.A movement-capable grade and correct width-to-depth profile allow controlled elastic deformation.

Dust or weak coatings cause adhesion loss along joint flanks.Sound substrates are cleaned and, where required, primed before backing and sealant placement.

Inconsistent bead depth leaves thin sections around penetrations.Specified backing material controls depth and supports uniform tooling around the full opening.

Typical Applications

Cleanroom wall-to-slab jointsFire-rated partition perimetersService-penetration annular sealsCable and pipe opening systemsSmoke-control construction joints

Technical Parameters

Typical construction and application ranges for an elastic cartridge-applied firestop joint sealant are listed below.

Core Material	One-component acrylic, silicone or hybrid firestop elastomer
Panel Thickness	6-25 mm typical installed seal depth
Effective Width	6-50 mm practical construction-joint width
Maximum Length	Up to 10000 mm continuous prepared joint section
Steel Facing Thickness	0.50-1.50 mm compatible coated-steel panel facing
Core Density	Approximately 1300-1700 kg/m³ uncured compound density
Thermal Conductivity	Approximately 0.20-0.50 W/(m·K) for cured sealant
Surface Finish	Smooth tooled red, white or gray elastomeric surface
Joint Type	Backed perimeter, construction or penetration annular joint within a compatible firestop assembly
Customization	Available based on the intended application and operating environment.

Available Options

Red, white or gray compoundAcrylic or silicone chemistryCartridge or foil-pack supplyCompatible mineral-wool or backing system
