Cleanroom Wall and Ceiling Systems

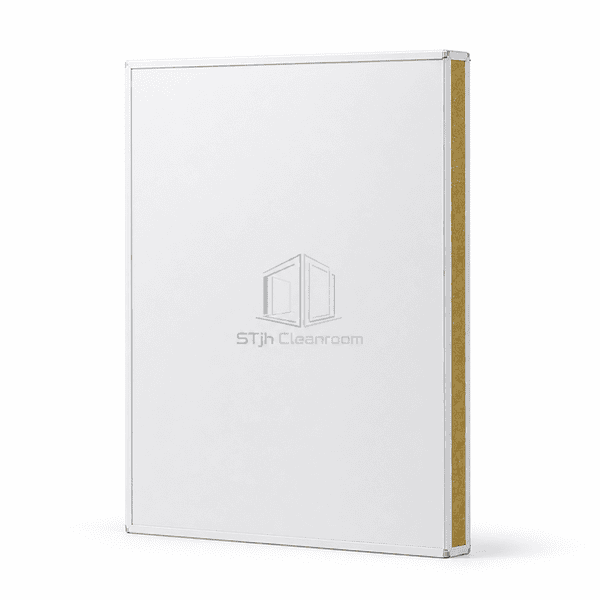

Fire-Rated Rock Wool Cleanroom Panel
A steel-faced rock wool cleanroom panel configured for fire-rated wall and ceiling assemblies, combining non-combustible mineral insulation, protected joints, controlled service openings and smooth hygienic room surfaces for clean manufacturing interiors.
- High-Density Stone Wool Core
- Fire-Rated Assembly Construction

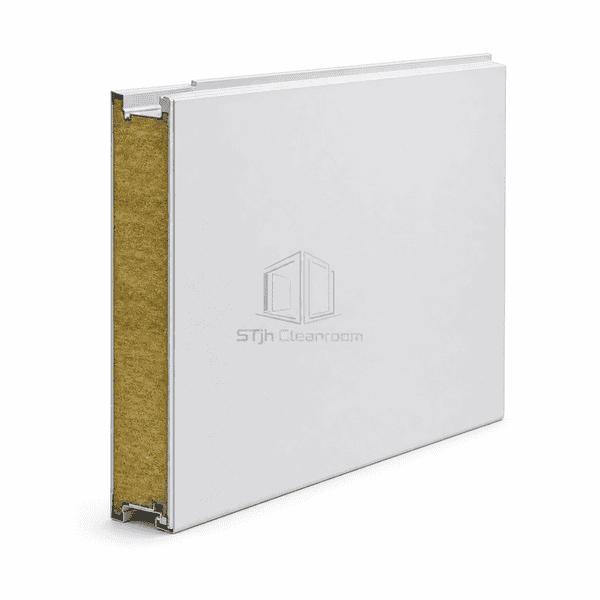

- Protected Interlocking Joints
- Hygienic Steel Surfaces
Product Introduction

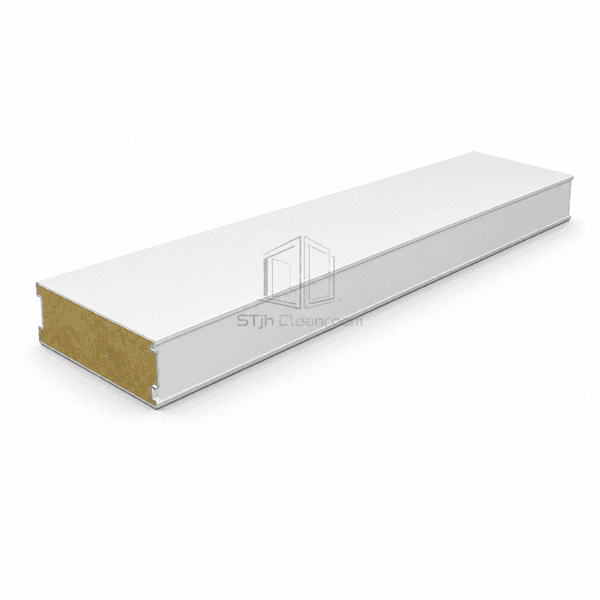

Fire-Rated Rock Wool Cleanroom Panels use vertically oriented stone-wool lamellas between steel facings and incorporate joint, frame and fixing details that preserve integrity during fire exposure. The panel is treated as part of a complete wall or ceiling assembly rather than as an isolated core material. Higher density and increasing panel thickness support longer fire-resistance configurations, while metal edge closures protect the core and maintain a clean internal finish. The system is suitable for controlled areas that require both hygienic surfaces and compartmentation using tested mineral-core construction.
Key Features

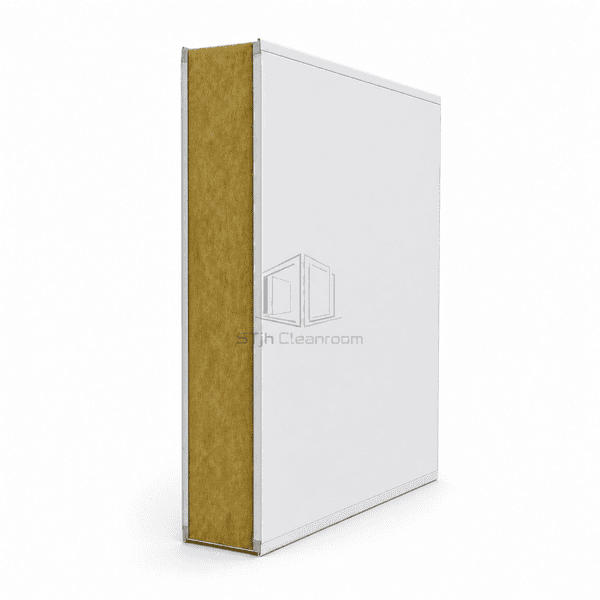

Vertical lamella orientation improves through-thickness mechanical support between the steel skins.
Joint geometry limits direct flame and hot-gas paths between adjacent modules.
Protected service openings preserve the continuity of the fire-separating layer.
Smooth room-side steel remains compatible with normal cleanroom wiping and disinfection.
Customer Product Concerns
Customers need the panel thickness, joint, support spacing and penetration details to work together as one fire-separating construction.
A non-combustible core alone does not stop hot gases passing through an open joint.Profiled interlocks, mineral packing and compatible fire-stop seals protect the full panel connection.
Unprotected service penetrations can bypass the fire-resisting wall.Tested collars, sleeves and perimeter seals close openings around cables, ducts and pipes.
Insufficient density or thickness reduces the available fire-resistance configuration.The selected stone-wool density and panel depth are matched to the required assembly duration.
Fire-focused materials can introduce rough surfaces into a hygienic room.Continuous steel skins and closed edges keep the mineral insulation outside the cleanable surface.
Typical Applications
Pharmaceutical fire-compartment partitionsClean corridors adjoining plant roomsBattery and electronics controlled areasLaboratory walls beside utility zonesMineral-core cleanroom ceilings
Technical Parameters
Common construction ranges for steel-faced fire-rated rock wool panels are shown below.
| Core Material | Vertically oriented hydrophobic stone wool lamellas |
|---|---|
| Panel Thickness | 60, 80, 100, 120 or 150 mm |
| Effective Width | 950, 1000 or 1150 mm |
| Maximum Length | 6000 mm |
| Steel Facing Thickness | 0.50–0.80 mm |
| Core Density | 100–150 kg/m³ |
| Thermal Conductivity | 0.039–0.045 W/(m·K) |
| Surface Finish | Pre-painted galvanized steel or stainless steel cleanroom finish |
| Joint Type | Fire-protected tongue-and-groove joint with mineral packing and sealant |
| Customization | Available based on the intended application and operating environment |
Available Options
EN 13501-2 EI assembly configurationsAlternative rock wool densityStainless steel room-side faceFire-stopped service penetration modules
Planning a Fire-Rated Rock Wool Cleanroom Panel specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
