Cleanroom Doors, Windows and Interlock Systems

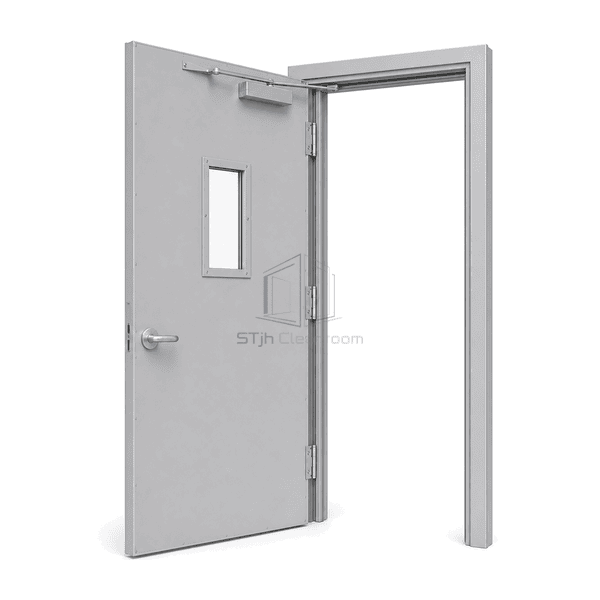

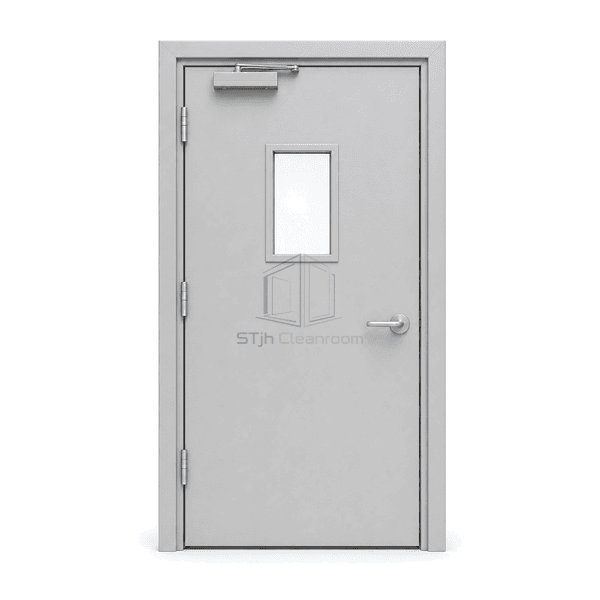

Fire-Rated Cleanroom Door
A complete hygienic steel doorset built around a dense mineral-wool core, reinforced frame and intumescent edge system for cleanroom boundaries that also require fire compartmentation.
- Mineral-Wool Insulated Leaf
- Intumescent Perimeter Protection
- Hygienic Powder-Coated Faces
- Reinforced Complete Doorset
Product Introduction

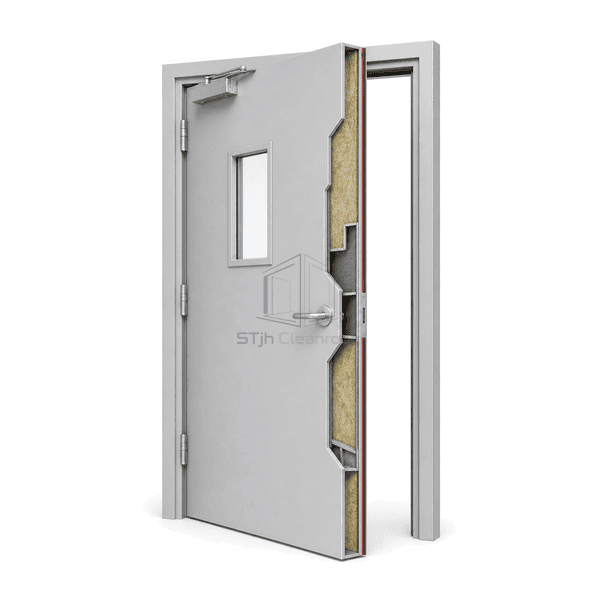

The Fire-Rated Cleanroom Door combines the smooth surfaces expected in a controlled room with the heavier leaf, frame reinforcement and heat-reactive seals used in a fire-resisting doorset. Dense mineral wool fills the steel leaf, while intumescent strips are protected within the perimeter detail. Hinges, latch, closer, glazing and frame anchors are selected as parts of one compatible assembly rather than added independently after manufacture.
Key Features
Protected intumescent strips expand under heat without creating everyday cleaning ledges.
Reinforced hinge and closer zones control the greater mass of a fire-resisting leaf.
Powder-coated galvanized faces remain smooth for routine cleanroom housekeeping.
Optional fire-resisting glazing preserves observation in compatible door configurations.
Customer Product Concerns
A fire-rated cleanroom opening must retain hygienic surfaces without weakening the complete door assembly through unsuitable seals, hardware or site modifications.
A standard lightweight cleanroom leaf does not provide the mass or edge protection needed at a fire boundary.Mineral wool, reinforced steel skins and protected intumescent seals form a purpose-built heavy-duty leaf.

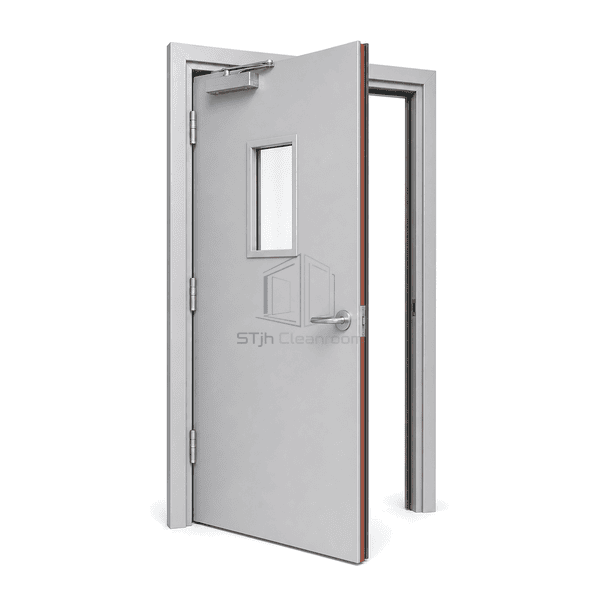

Projecting fire seals create additional dirt traps around the opening.Intumescent material is recessed within a smooth perimeter carrier and protected in normal service.
Heavy leaves sag when ordinary cleanroom hinges are retained.Load-rated hinges and reinforced fixing plates spread the increased door mass into the frame.
Unplanned glazing or access hardware interrupts the intended barrier.Compatible vision panels, closers and latching preparations are incorporated during doorset manufacture.
Typical Applications
Pharmaceutical fire compartmentsBattery manufacturing clean areasLaboratory escape routesHealthcare cleanroom boundariesControlled technical plant access
Technical Parameters
Typical physical construction values for a mineral-wool fire-rated cleanroom doorset are shown below.
| Core Material | High-density non-combustible mineral wool |
|---|---|
| Panel Thickness | 50-60 mm insulated door leaf |
| Effective Width | 800-1250 mm single-leaf clear opening |
| Maximum Length | 2400 mm maximum leaf height |
| Steel Facing Thickness | 1.0-1.2 mm galvanized or stainless steel skins |
| Core Density | 96-140 kg/m³ mineral wool |
| Thermal Conductivity | 0.035-0.045 W/(m·K) typical mineral-wool range |
| Surface Finish | Smooth powder-coated galvanized steel or brushed stainless steel |
| Joint Type | Rebated steel frame with protected intumescent strip and elastomer smoke/cleanroom seal |
| Customization | Available based on the intended application and operating environment |
Available Options
Single or double doorsetCompatible fire-resisting vision panelStainless steel surface finishPanic exit and controlled-access hardware
Planning a Fire-Rated Cleanroom Door specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
