ESD Grounding Socket
The ESD Grounding Socket is a fixed bonding point that consolidates wrist-strap, mat and equipment-ground connections at a workstation.
- Dual banana jacks provide convenient operator connection points.
- Central snap supports mat or accessory bonding.
- High-visibility faceplate distinguishes the ESD ground interface.
Product Introduction

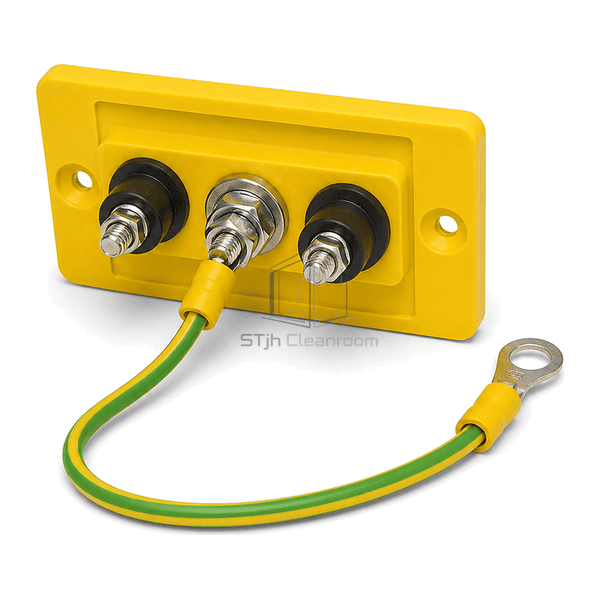

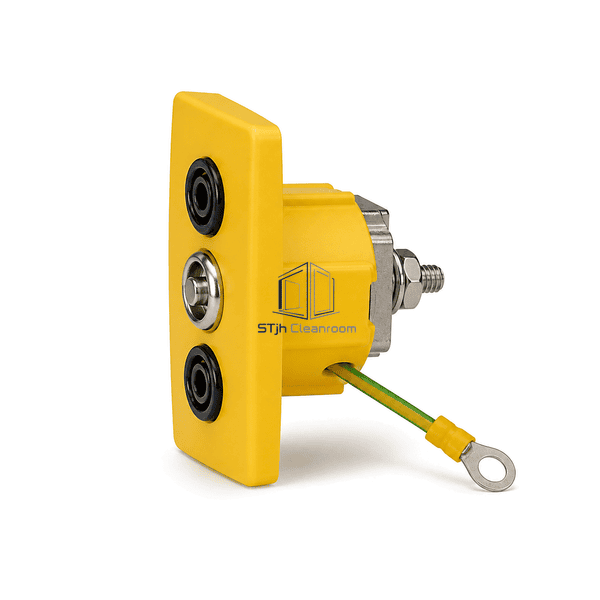

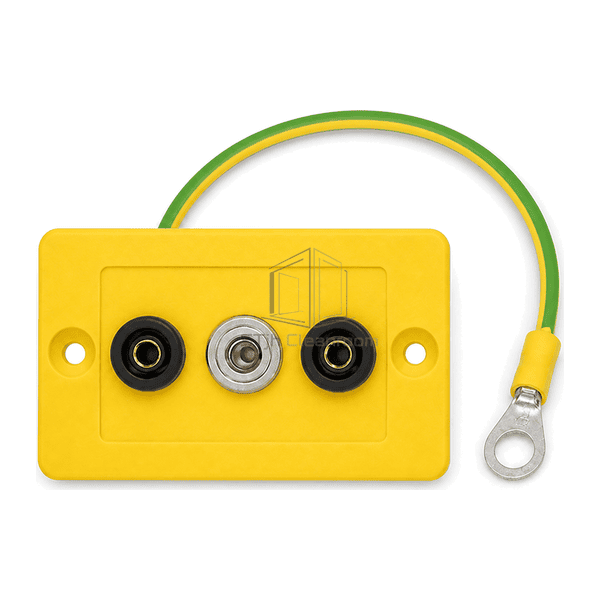

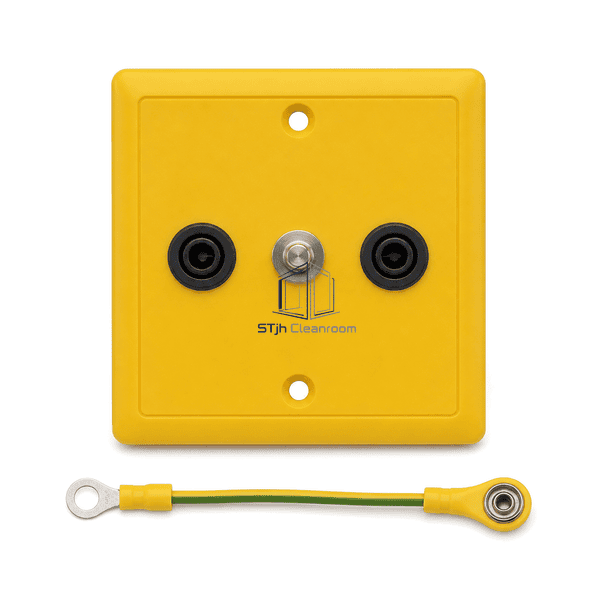

A durable yellow insulating faceplate carries two standard banana receptacles and a stainless snap interface. Rear terminals join the contacts to a green-and-yellow protective-earth conductor ending in a ring lug. Recessed mounting holes support bench, wall or furniture-panel installation while keeping the connection point visible and accessible.
Key Features
Stainless snap accepts common mat-grounding hardware.
Rear screw or stud terminal provides a defined earth connection.
Bright yellow housing aids recognition during audits.
Recessed fasteners produce a tidy fixed installation.
Modular faceplate format suits benches and partition panels.
Customer Product Concerns
A fixed bonding point must be readily identifiable, mechanically secure and electrically joined to the designated facility grounding network.
Operators connect to an unverified metal fixture.A dedicated yellow faceplate clearly identifies the approved bonding point.
One socket cannot serve a second operator.Dual banana receptacles provide two accessible cord connections.
Mat and wrist-strap connections compete for the same interface.Separate banana jacks and snap hardware accommodate different terminations.
A loose rear wire creates intermittent grounding.Mechanical terminal hardware and a crimped ring lug establish a serviceable connection.
Surface-mounted hardware is snagged or damaged.Recessed mounting holes and a compact plate protect the working interfaces.
Typical Applications
Electronics assembly workbenches.Laboratory and service stations.ESD-protected room partitions.Grounded packing and inspection tables.Training and visitor work positions.
Technical Parameters
The representative dimensions below cover common fixed earth-bonding points; plate format, socket count, snap type and lead length can be configured.
| Core Material | Flame-retardant ABS faceplate with brass and stainless contacts |
|---|---|
| Panel Thickness | 3.0–5.0 mm faceplate thickness |
| Effective Width | 85–120 mm faceplate width |
| Maximum Length | Up to 3000 mm protective-earth lead length |
| Steel Facing Thickness | 0.8 mm nominal stainless snap and terminal hardware thickness |
| Core Density | 1030–1080 kg/m³ ABS resin density |
| Thermal Conductivity | 0.17–0.22 W/(m·K) |
| Surface Finish | High-visibility yellow matte molded faceplate with black and silver contacts |
| Joint Type | Dual banana receptacles and 10 mm snap bonded to rear earth terminal and ring-lug lead |
| Customization | Available based on the intended application and operating environment. |
Available Options
One, two or four banana jacks.4 mm or 10 mm snap formats.Surface, flush or bench-edge mounting.Yellow, black or white faceplates.Straight lead or rear screw-terminal connection.Alternative cable length and ring-lug bore.
Planning a ESD Grounding Socket specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
