ESD Grounding Cord

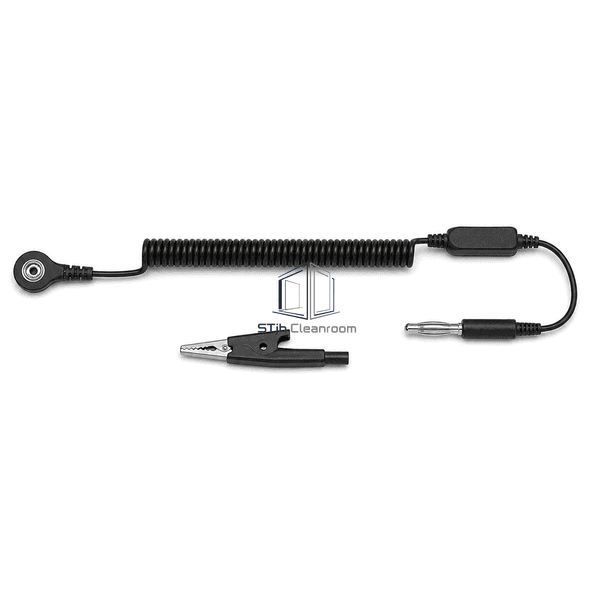

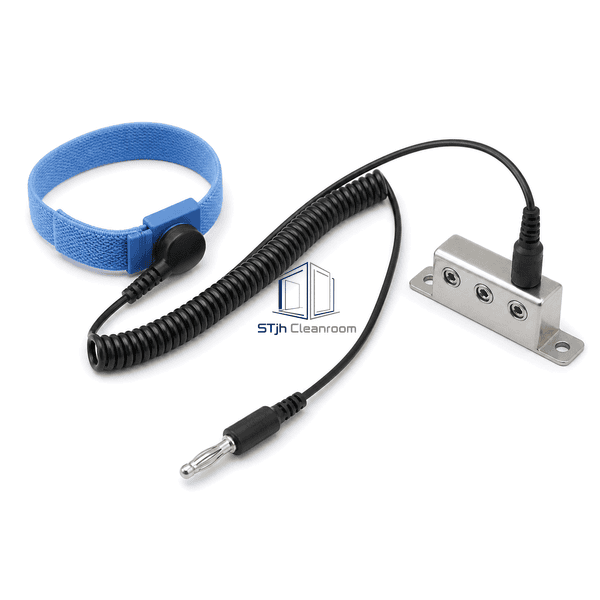

The ESD Grounding Cord is a flexible coiled lead that connects a wrist strap or garment snap to an approved workstation grounding point.

Retractile coil follows operator movement while limiting loose cable.
Molded resistor housing supports controlled personnel grounding.
Standard snap and banana interfaces connect common ESD hardware.

Request a Quote Browse Products

Product Introduction

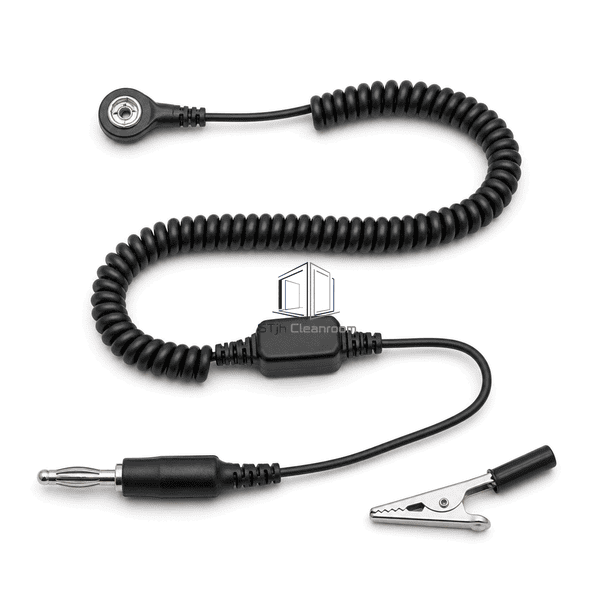

Stranded copper conductors are protected by a durable polyurethane jacket formed into a retractile coil. Molded strain relief supports both ends, while the snap socket joins wearable grounding equipment and the banana plug connects to a common-point ground or tester. Selected personnel cords incorporate a current-limiting resistor in the termination assembly.

Key Features

Coiled geometry provides working reach with compact retraction.

Flexible insulation tolerates repeated operator movement.

Molded strain relief reduces bending stress at terminations.

Detachable snap allows rapid replacement and testing.

Banana plug fits standard workstation grounding jacks.

Optional clip adapter supports temporary approved connections.

Customer Product Concerns

Cord reliability depends on correct resistance, durable strain relief, secure terminations and enough working reach without unmanaged cable.

Straight cable drapes across the work surface.A retractile coil shortens the cord when full reach is unnecessary.

Repeated flexing breaks conductors near the plug.Molded strain relief distributes bending away from the termination.

The cord pulls free during normal movement.Positive snap and spring-contact banana plug maintain defined connections.

An unsuitable cord bypasses personnel protection resistance.Specified personnel versions include a molded current-limiting resistor.

An intermittent lead looks normal externally.Detachable construction permits separate continuity and resistance checks.

Typical Applications

Wrist-strap grounding at assembly benches.Groundable garment connections.Portable ESD service kits.Workstation common-point grounding.Personnel tester connections.

Technical Parameters

The following values describe common single-wire personnel grounding cords; snap size, extended length, resistor and terminal format can be configured.

Core Material	Stranded copper conductor with polyurethane insulation
Panel Thickness	2.5–4.0 mm finished cable diameter
Effective Width	18–28 mm molded snap-head width
Maximum Length	Up to 3600 mm extended coil length
Steel Facing Thickness	0.5 mm nominal stainless snap-contact thickness
Core Density	1100–1250 kg/m³ polyurethane jacket density
Thermal Conductivity	0.16–0.22 W/(m·K)
Surface Finish	Black molded polyurethane with nickel-plated metal contacts

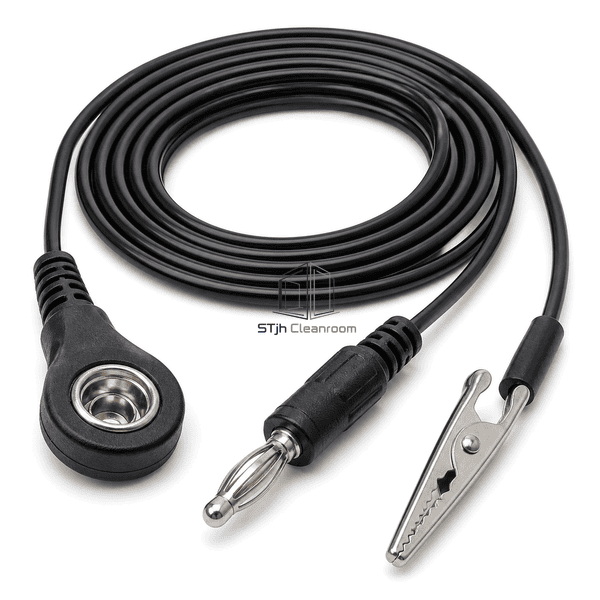

Joint Type	Female snap to coiled lead, molded resistor housing and banana plug
Customization	Available based on the intended application and operating environment.

Available Options

4 mm or 10 mm snap socket.1.5–3.6 m extended coil lengths.One-megohm or alternative specified resistance.Straight or right-angle banana plug.Alligator-clip or ring-terminal adapter.Single-wire and monitor-compatible dual-wire formats.

Planning a ESD Grounding Cord specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
