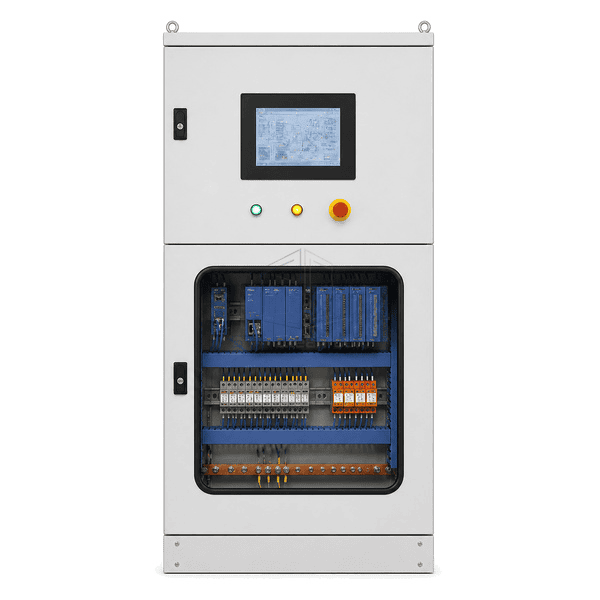

Complete cleanroom PLC control cabinet with touchscreen in three-quarter view

Cleanroom Control and Environmental Monitoring Systems

Cleanroom PLC Control System

A deterministic PLC automation panel for cleanroom HVAC sequences, fast equipment interlocks, room-control loops and industrial field communication.

Deterministic PLC Logic
Modular Industrial I/O
Hardwired Safety Interlocks
Networked Equipment Control

Request a Quote Browse Products

Product Introduction

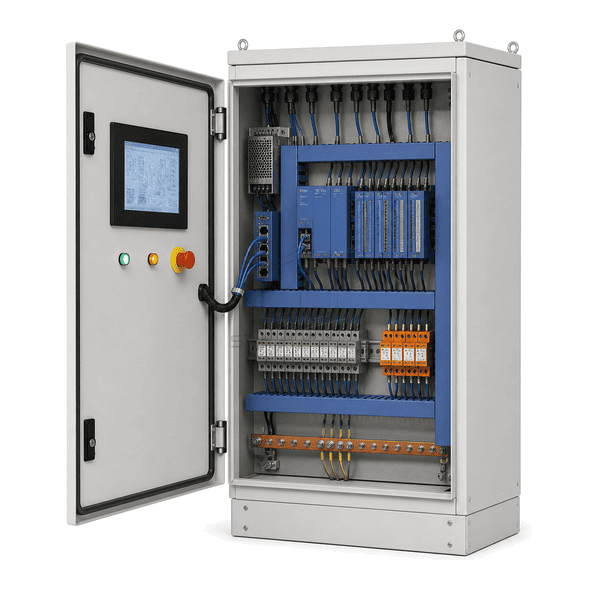

The PLC cabinet concentrates power distribution, controller hardware, isolated I/O and communication modules for cleanroom plant equipment. Control routines execute locally for fans, dampers, valves, pumps, terminal units and room-pressure sequences even when a supervisory workstation is unavailable. Hardwired permissives and emergency contacts remain separate from ordinary software commands. Modular terminals and labeled wiring ducts provide service access without disturbing adjacent control circuits.

Key Features

Scan-based control executes repeatable HVAC sequences independently of the supervisory computer.

Modular digital, analog and network I/O accommodates both conventional and intelligent field devices.

Dedicated interlock circuits protect fans, heaters and pressure-critical equipment states.

Separated power and signal wiring reduces electrical noise in low-level sensor channels.

Customer Product Concerns

Cleanroom PLC hardware must combine dependable real-time logic with wiring clarity and maintainable separation between control and power circuits.

Loss of the operator workstation stops environmental control.The PLC retains all local sequences, setpoints and interlocks without supervisory dependence.

Mixed high-voltage and sensor wiring introduces unstable readings.Partitioned wiring ducts, shield terminals and isolated analog modules separate signal classes.

Expansion requires replacing the complete control panel.Spare rail space and modular remote I/O allow additional cleanroom points to be added.

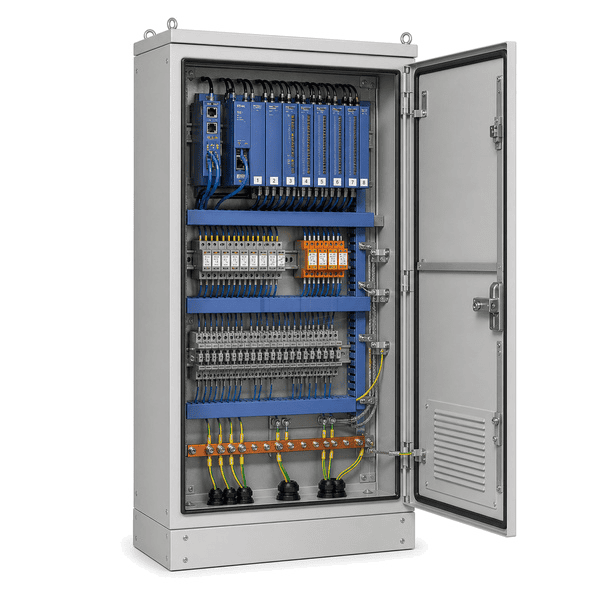

Troubleshooting is slowed by unidentified field wiring.Numbered terminals, ferrules and device labels correspond directly with controller I/O schedules.

Typical Applications

AHU automation panelsCleanroom utility skidsPressure-control plant roomsProcess equipment interlocking

Technical Parameters

Typical construction values for a cleanroom PLC control cabinet are listed below.

Core Material	Powder-coated steel cabinet with FR-4 PLC modules, copper busbars and flame-retardant wiring ducts
Panel Thickness	250-500 mm enclosure depth
Effective Width	600-1400 mm panel width
Maximum Length	Up to 2200 mm cabinet height
Steel Facing Thickness	1.5-2.0 mm powder-coated steel enclosure
Core Density	7800-8050 kg/m³ for steel structural components
Thermal Conductivity	45-60 W/(m·K) for the steel enclosure
Surface Finish	Light-gray textured powder coating with laser-engraved device labels
Joint Type	DIN-rail modular assembly with segregated power, I/O and communication terminal zones
Customization	Available based on the intended application and operating environment.

Available Options

Redundant PLC processorsHot-swappable remote I/OTouchscreen operator panelManaged industrial Ethernet switch

Planning a Cleanroom PLC Control System specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
