Cleanroom Penetration Boot

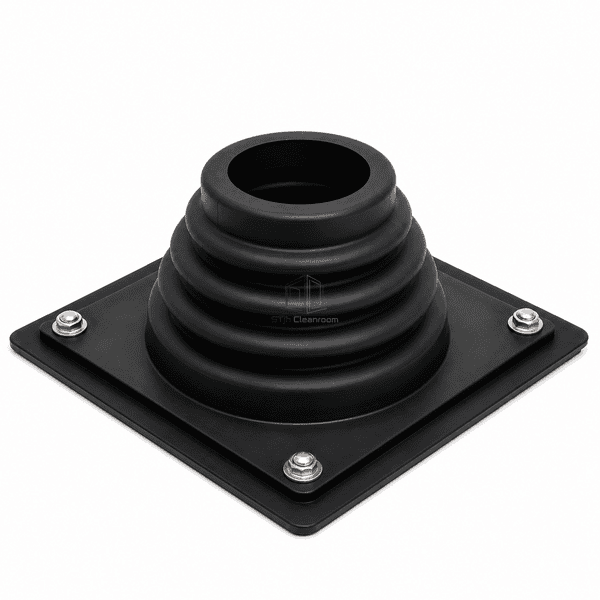

A flanged EPDM bellows boot that forms a flexible, cleanable transition around pipes or conduits passing through cleanroom partitions.

Flexible Bellows Neck
Four-Bolt Square Flange
Movement-Tolerant Seal
Replaceable EPDM Assembly

Request a Quote Browse Products

Product Introduction

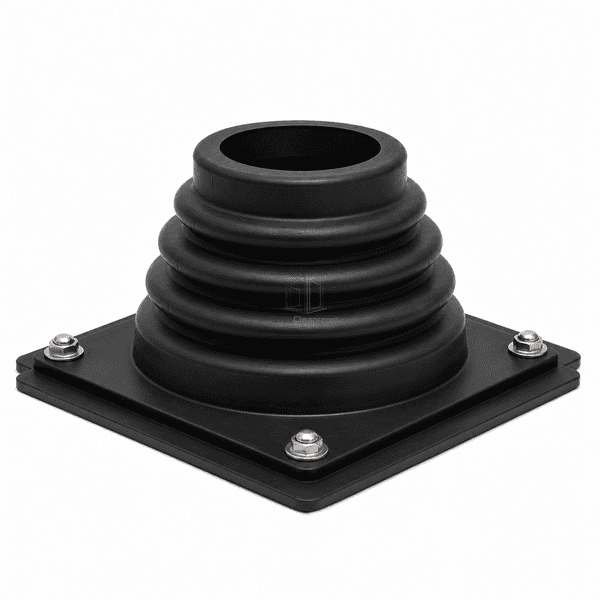

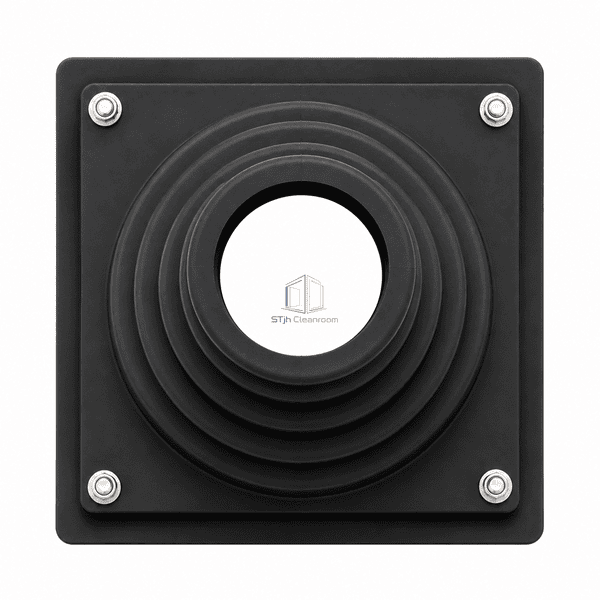

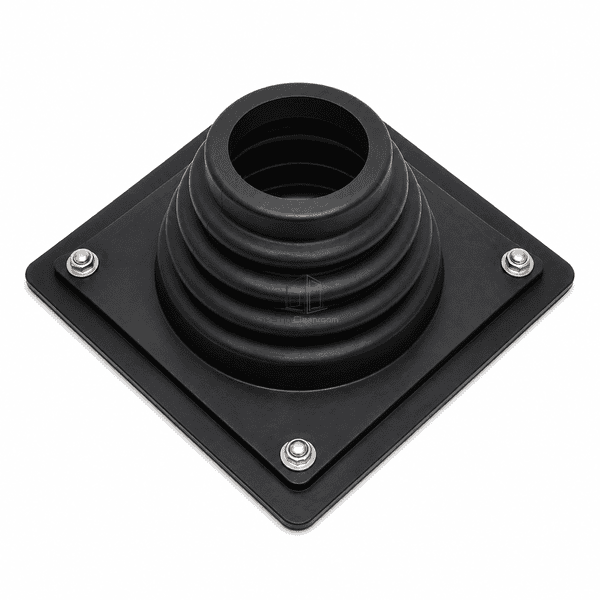

The boot combines a molded EPDM accordion neck with a rigid square double-flange base and four stainless corner fasteners. Its circular neck grips a compatible service while the convolutions accommodate limited movement.

Key Features

Accordion convolutions accommodate limited service movement.

A square double-flange base distributes clamping pressure.

Four stainless fasteners provide balanced retention.

Smooth molded EPDM supports routine wiping.

Customer Product Concerns

Rigidly sealed services can crack when movement shifts the pipe relative to the partition.

Movement stresses rigid sealant.The accordion neck flexes while maintaining contact.

Cutouts leave untidy edges.The broad flange covers the opening perimeter.

Uneven clamping leaves gaps.Four fasteners distribute retention.

Potting complicates service changes.The bolted assembly can be replaced.

Typical Applications

Cleanroom pipe penetrationsElectrical conduit transitionsEquipment utility connectionsFlexible service entries

Technical Parameters

Typical construction ranges for a flanged EPDM cleanroom penetration boot are listed below.

Core Material	Molded black EPDM bellows with rigid clamping flanges
Panel Thickness	40-150 mm compatible partition thickness
Effective Width	25-200 mm compatible service diameter
Maximum Length	Up to 450 mm overall flange dimension
Steel Facing Thickness	1.00-3.00 mm optional stainless plate thickness
Core Density	Approximately 1100-1300 kg/m³ for EPDM
Thermal Conductivity	Approximately 0.20-0.30 W/(m·K) for EPDM
Surface Finish	Matte black elastomer with satin stainless fasteners
Joint Type	Four-point bolted flange with flexible compression fit
Customization	Available based on the intended application and operating environment.

Available Options

EPDM or silicone elastomerMultiple neck diametersSplit retrofit constructionPolymer or stainless flanges
