Cleanroom Drainage, Hygiene and Safety Equipment
Cleanroom Linear Drain
Narrow stainless linear channel for collecting wash water along cleanroom walls, equipment lines or room thresholds.
- Continuously Welded Channel
- Built-In Drainage Fall
- Removable Hygienic Grating
- Configurable Outlet Positions
Product Introduction

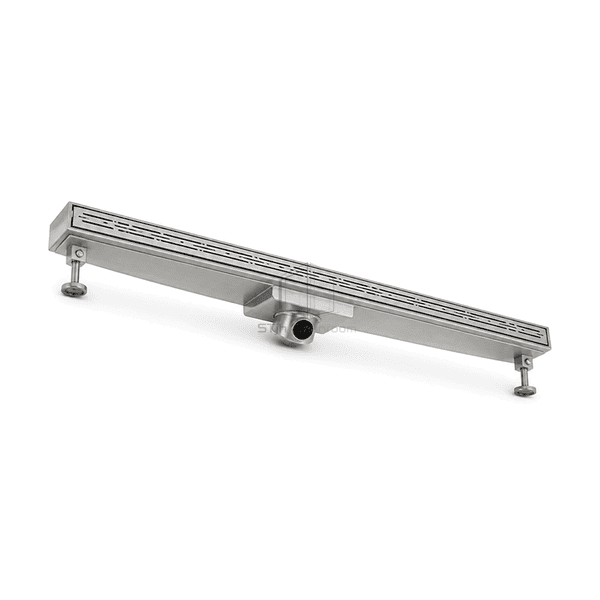

The cleanroom linear drain uses a continuously welded 304 or 316L stainless channel to collect wash water along an extended floor edge. A controlled internal fall directs liquid toward one or more outlets, while sectional removable grates expose the radiused channel for cleaning. Edge and flange profiles can be matched to resin, vinyl or tiled floor systems without leaving unnecessary exposed joints.
Key Features
Sectional removable grates provide access to the complete channel interior.
Radiused stainless surfaces limit sharp internal residue traps.
Outlet quantity and position can be arranged around room drainage routes.
Customer Product Concerns
Long wet boundaries require consistent floor collection without standing water, inaccessible channel sections or weak joints between drain modules.
A level channel can leave water standing at the end of a long wash-down run.A fabricated internal fall directs flow toward the selected outlet positions.
Fixed covers prevent complete inspection of long drain interiors.Lift-out sectional grates expose the full radiused channel for cleaning.
Numerous field joints can create leakage and residue-retention points.Factory-welded sections minimize joints, with flanged connections reserved for transport-length modules.
Floor finishes need different edge and waterproofing details.Resin, vinyl and tile flange profiles are available for the intended floor build-up.
Typical Applications
Cleanroom wash baysProcess-skid perimetersFill-finish support roomsHygienic corridors and thresholds
Technical Parameters
Typical ranges for a hygienic stainless linear channel are listed below; run length, fall, grate and outlet layout are selected for flow and floor construction.
| Core Material | AISI 304 or 316L stainless steel channel |
|---|---|
| Panel Thickness | 1.5-2.0 mm channel wall |
| Effective Width | 80-300 mm clear channel width |
| Maximum Length | Up to 6000 mm per fabricated section |
| Steel Facing Thickness | 1.5-2.0 mm exposed stainless surfaces |
| Core Density | 7900-8000 kg/m³ for stainless steel |
| Thermal Conductivity | 14-16 W/(m·K) for stainless steel |
| Surface Finish | Satin, pickled and passivated, or electropolished stainless steel |
| Joint Type | Continuously welded channel with optional flanged transport-section joints |
| Customization | Available based on the intended application and operating environment. |
Available Options
304 or 316L gradeSlot or ladder grate500-6000 mm fabricated sectionsEnd, bottom or side outlets
Planning a Cleanroom Linear Drain specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
