Cleanroom Lighting and Electrical Equipment

Cleanroom Intercom System

A networked hands-free communication system using flush sealed stations that remain operable through cleanroom gloves.

Sealed Membrane Stations
Hands-Free Full-Duplex Audio
PoE or Two-Wire Network
Remote Function Monitoring

Request a Quote Browse Products

Product Introduction

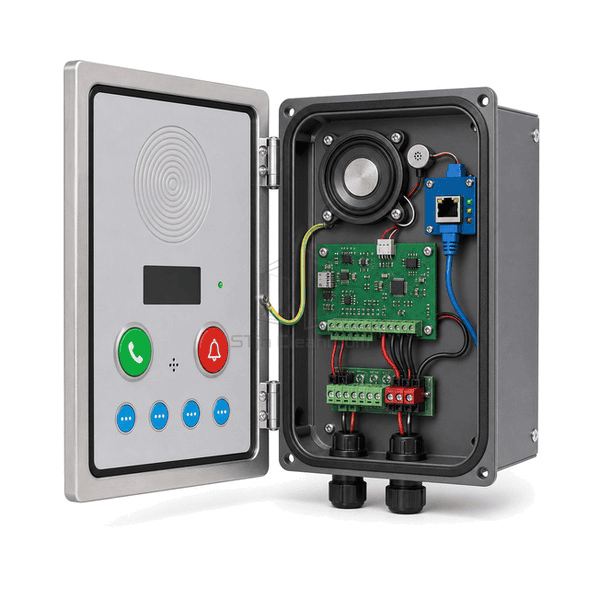

The cleanroom intercom links wall stations in controlled rooms to operator desks, airlocks and external support areas. Each room station uses a closed membrane front over the microphone, loudspeaker and large function keys. Voice processing controls echo and background noise, while PoE, SIP or dedicated two-wire interfaces carry calls without an exposed handset inside the clean zone.

Key Features

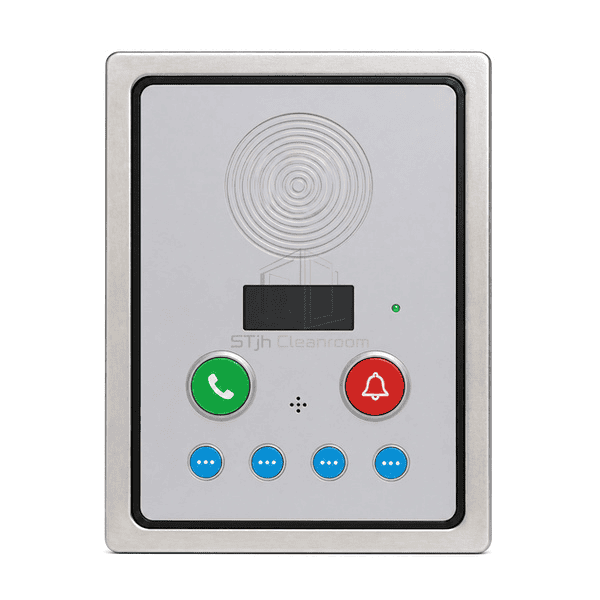

A continuous membrane face tolerates direct wiping around keys and audio openings.

Hands-free operation avoids handling a shared handset through gloves.

Noise and echo processing improves speech around fans and production equipment.

Programmable keys place direct calls to defined external stations.

Line and station monitoring can report communication faults centrally.

Customer Product Concerns

Sealed rooms isolate personnel acoustically, but ordinary telephones and perforated speakers add difficult-to-clean touch surfaces.

Operators remove gloves to use a small telephone keypad.Large membrane keys and hands-free calling remain practical through cleanroom gloves.

Fan noise makes speech difficult to understand.Automatic gain, echo control and noise processing improve intelligibility.

Open speaker grilles trap residue inside the wall device.Audio passes through a sealed printed membrane rather than exposed perforations.

A failed station remains unnoticed until an urgent call.Central supervision monitors device and connection availability.

Typical Applications

Aseptic processing roomsLaboratory communicationCleanroom airlocksSterile production support

Technical Parameters

Typical configurable construction ranges for a cleanroom intercom system are listed below.

Core Material	SUS304 face frame with sealed chemical-resistant membrane, microphone, loudspeaker, controller and recessed steel back box
Panel Thickness	2.0-4.0 mm sealed front assembly thickness
Effective Width	150-320 mm station face width
Maximum Length	Up to 450 mm overall station height
Steel Facing Thickness	1.5-2.5 mm stainless face frame and back-box components
Core Density	Approximately 1200-1400 kg/m³ for the sealed engineering-polymer membrane assembly
Thermal Conductivity	0.20-0.35 W/(m·K) for the polymer front membrane
Surface Finish	Light-grey or white sealed membrane in a fine-brushed stainless flush frame with colored key legends

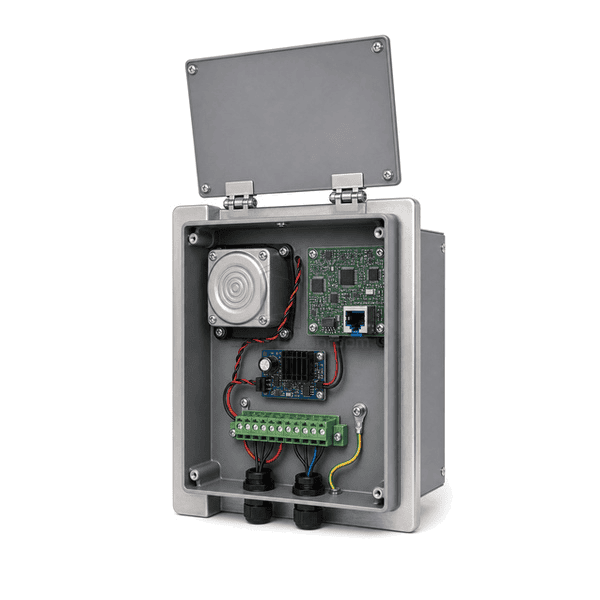

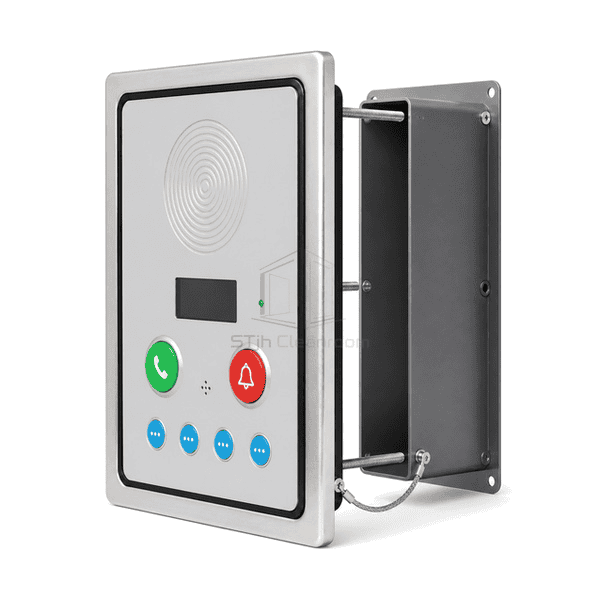

Joint Type	Flush gasketed wall frame with sealed membrane face and PoE, two-wire or SIP rear connection
Customization	Available based on the intended application and operating environment.

Available Options

IP/SIP or dedicated two-wire networkNumeric, direct-call or emergency keysVideo display stationDesk, surface or flush mounting
