Cleanroom Gowning Mirror

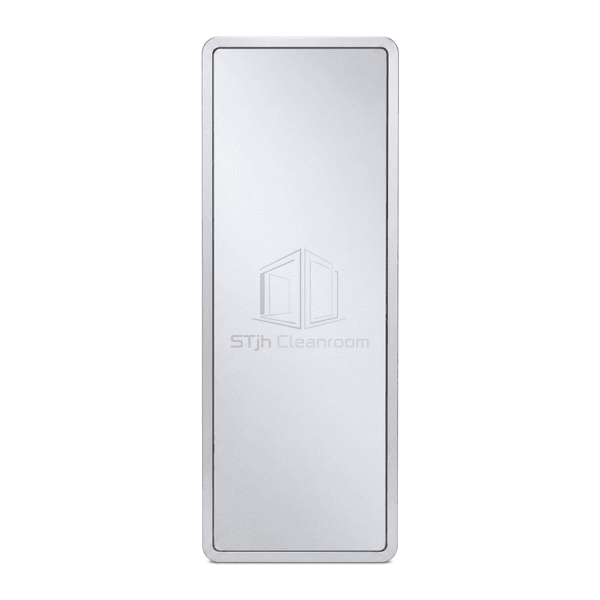

A full-length safety-backed mirror in a sealed Type 304 stainless frame with rounded corners and concealed flush mounting for final clean-garment inspection.

Full-length 1450 mm viewing field
Safety-backed mirror glass
Sealed rounded stainless frame
Concealed flush wall mount

Request a Quote Browse Products

Product Introduction

The cleanroom gowning mirror provides a 400 mm-wide full-length viewing field for checking coverall closures, hoods, masks, gloves and footwear before entry. Six-millimetre mirror glass is bonded to a continuous safety backing and captured inside a folded Type 304 stainless channel. Rounded frame corners and a sealed glass perimeter avoid projecting clips on the wipeable face. Rear keyhole brackets pull the 25 mm-deep assembly close to the wall while allowing controlled removal for replacement.

Key Features

The tall narrow viewing field shows head-to-foot garment condition without occupying gowning bench space.

Continuous safety backing retains fractured glass against the support panel instead of leaving an unsupported mirror sheet.

A sealed stainless capture channel protects the glass edge and presents rounded wipeable corners.

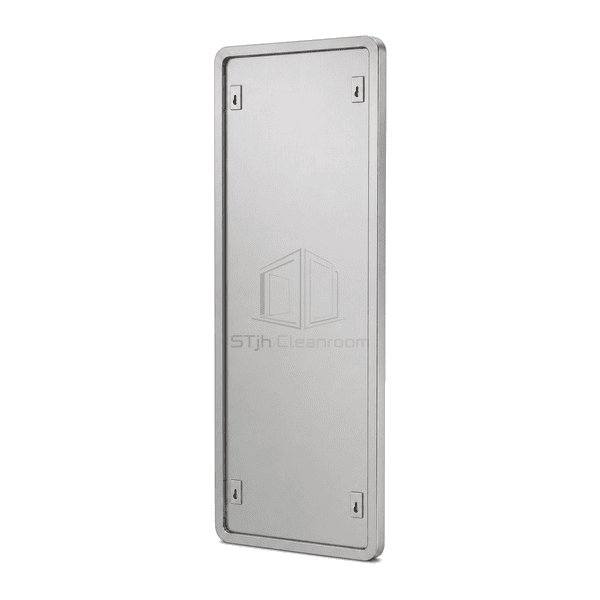

Concealed keyhole brackets hold the mirror close to the wall without fastener heads across the viewing face.

Customer Product Concerns

Gowning personnel need a full-body check without exposed glass edges, projecting clips or a deep frame that creates an inaccessible wall gap.

Small mirrors do not show open leg zips, loose boot covers or garment contact with the floor.The 1450 mm vertical viewing area supports a complete head-to-foot check.

Unbacked mirror glass can release loose pieces after accidental impact.A continuous adhesive safety backing retains the glass against its support panel.

Exposed edge clips and sharp corners catch wipes and collect residue.The folded stainless capture channel encloses all four edges with rounded welded corners.

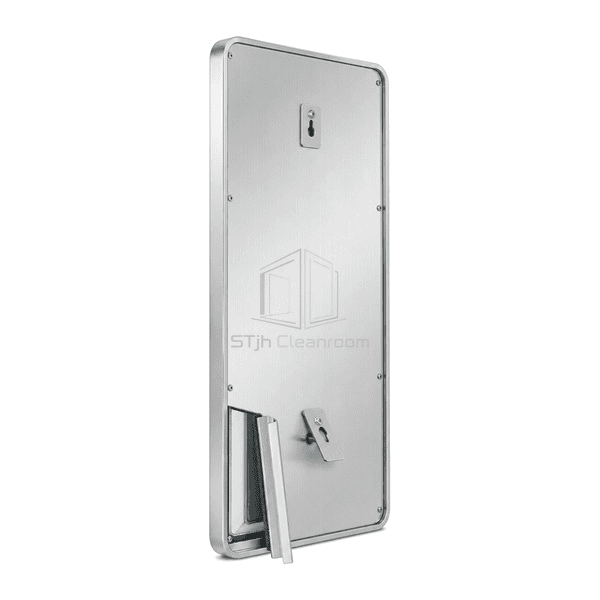

A projecting frame leaves a deep, difficult-to-reach strip against the wall.Rear keyhole brackets pull the 25 mm assembly into a close flush-mounted position.

Typical Applications

Final coverall inspection in personnel airlocksHood and mask fit checksCleanroom footwear verificationVisitor gowning stationsSterile-support change rooms

Technical Parameters

Typical configurable specifications for a full-length flush cleanroom gowning mirror are listed below.

Core Material	6 mm safety-backed mirror glass on a sealed Type 304 stainless support and capture frame
Panel Thickness	25 mm overall framed mirror depth
Effective Width	400 mm clear full-length viewing width
Maximum Length	1450 mm maximum overall mirror height
Steel Facing Thickness	1.0 mm Type 304 stainless folded frame and rear support
Core Density	2500 kg/m³ for mirror glass; 7900–8000 kg/m³ for stainless frame
Thermal Conductivity	0.8–1.0 W/(m·K) for mirror glass
Surface Finish	Clear silvered mirror face with neutral-cure perimeter seal and satin-brushed stainless frame
Joint Type	Bonded safety-backed glass captured in a welded rounded channel with concealed rear keyhole brackets
Customization	Available based on the intended application and operating environment.

Available Options

600 mm wider viewing fieldType 316 stainless frameElectropolished borderFloor-standing tilt frame
