Cleanroom Furniture and Stainless Steel Products
Cleanroom Garment Sterilizing Cabinet
An enclosed Type 304L stainless cabinet with shielded UV-C lamps, separate hanging and footwear zones, an adjustable timer and door-activated lamp interlock.
- Shielded 253.7 nm UV-C lamps
- Door-activated lamp safety interlock
- Separate garment and footwear zones
- Adjustable cycle timer and status lights
Product Introduction

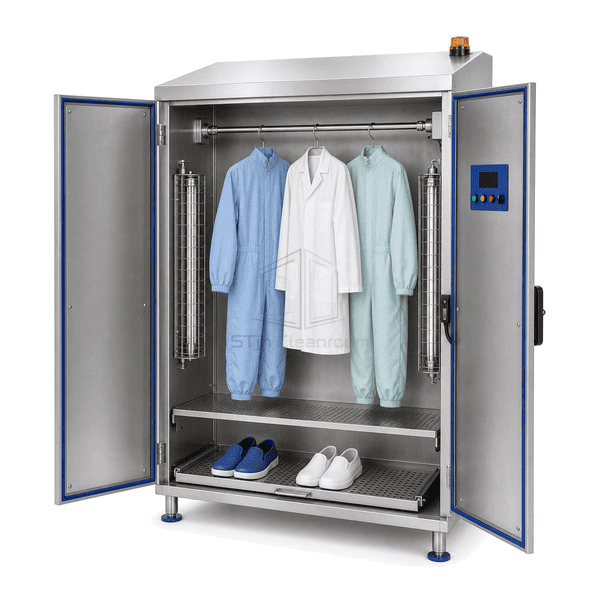

The cleanroom garment sterilizing cabinet encloses hanging apparel and footwear inside an opaque Type 304L stainless chamber during a timed UV-C exposure cycle. Two guarded 253.7 nm lamp assemblies are positioned beside the hanging zone, while a perforated divider separates the lower footwear compartment without blocking reflected light. A door safety switch disconnects the lamps as either door opens. The flush blue control panel provides timer setting, cycle start, lamp status and an amber in-process indicator without placing exposed controls inside the treatment chamber. The cabinet interior uses polished stainless reflectors, a removable perforated shoe tray and a full-width hanger rail.
Key Features
A hardwired door switch interrupts lamp power before an operator can access the treatment chamber.
The perforated lower divider keeps footwear separate while allowing light to reach the removable shoe tray.
The exterior timer, cycle switch and colored status indicators give operators a clear control point outside the opaque enclosure.
Customer Product Concerns
UV-C garment treatment needs an enclosed, interlocked chamber that organizes clothing while controlling operator exposure and shadowed surfaces.
A single unguarded lamp leaves garment folds shadowed and exposes fragile tubes to contact.Opposed guarded lamp assemblies illuminate the hanging zone from both sides while protecting the tubes.
Opening a treatment cabinet during a running cycle can expose the operator to active UV-C light.A positive-action door safety switch removes lamp power as soon as either door releases.
Footwear placed beneath hanging garments blocks light and transfers residue to longer apparel.A perforated stainless divider creates a separate removable footwear tray below the hanging rail.
Operators cannot distinguish ready, active and interrupted cycles on cabinets with one unlabeled switch.Separate green ready, amber cycle and red fault indicators communicate operating state beside the digital timer.
Typical Applications
Reusable cleanroom garment treatmentPharmaceutical gowning supportMedical and laboratory coat sanitationFood-production protective clothing roomsClean footwear and accessory treatment
Technical Parameters
Typical configurable specifications for an enclosed UV-C cleanroom garment sterilizing cabinet are listed below.
| Core Material | Type 304L stainless steel double-skin enclosure with two guarded 253.7 nm UV-C lamps, hanger rail and removable perforated footwear tray |
|---|---|
| Panel Thickness | 1.2–1.5 mm inner and outer stainless enclosure panels |
| Effective Width | 900–1100 mm overall cabinet width |
| Maximum Length | 2100 mm maximum cabinet height including status beacon |
| Steel Facing Thickness | 1.2–1.5 mm Type 304L stainless inner chamber, doors and outer body |
| Core Density | 7900–8000 kg/m³ for Type 304L stainless steel |
| Thermal Conductivity | 14–16 W/(m·K) for Type 304L stainless steel |
| Surface Finish | Brushed exterior stainless with reflective polished interior, blue silicone door seals and blue flush control panel |
| Joint Type | Continuously welded double-skin chamber with opaque gasketed doors, concealed hinges, compression latch and hardwired door interlock |
| Customization | Available based on the intended application and operating environment. |
Available Options
0–60 minute digital or rotary cycle timerAdditional guarded lamp assembliesTop-mounted filtered-air circulation moduleType 316L electropolished treatment chamber
Planning a Cleanroom Garment Sterilizing Cabinet specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
