Cleanroom Fog Generator

A portable ultrasonic cleanroom fog generator producing adjustable high-purity water mist for airflow visualization and dynamic smoke studies.

Residue-free high-purity water fog.
Adjustable density and gentle outlet velocity.
Cleanable stainless portable construction.

Request a Quote Browse Products

Product Introduction

This fog generator converts DI, ultrapure or WFI water into a dense visible mist without combustion residue. A cleanable stainless reservoir, ultrasonic transducer array and variable output blower provide controllable fog density and discharge velocity. The flexible hose and interchangeable outlet wand direct fog beneath HEPA filters, around process equipment and across doorways for recorded airflow studies.

Key Features

Water-only ultrasonic generation avoids oil-based smoke residue.

Adjustable fog density and outlet velocity protect delicate flow patterns.

Electropolished stainless housing and reservoir simplify cleaning.

Flexible hose positions the outlet away from the generator body.

Quick drain and level indication support controlled water handling.

Compact wheeled format moves easily through controlled areas.

Customer Product Concerns

Airflow visualization requires a dense visible tracer that follows the actual air path without adding residue or momentum that could misrepresent the pattern.

Conventional smoke can leave residue in a controlled environment.Ultrasonic generation uses only suitable high-purity water to create the visible mist.

High discharge velocity can distort the airflow being observed.Independent density and outlet controls allow a gentle fog stream matched to the study.

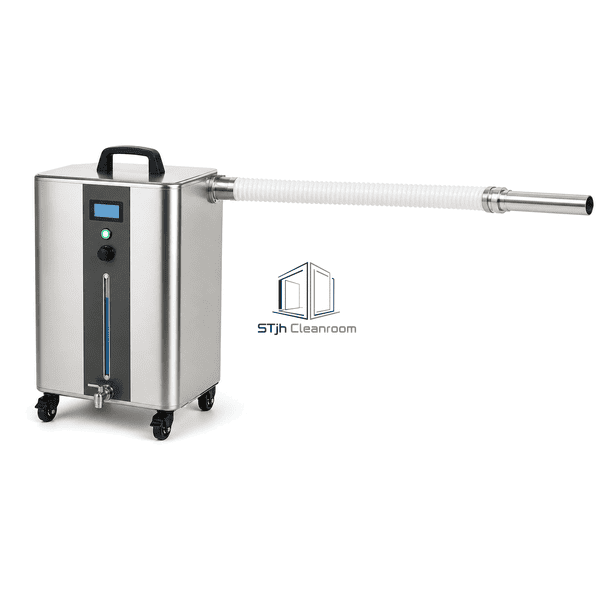

The generator body cannot always be placed at the observation point.A flexible hose and outlet wand deliver fog beneath filters and around equipment.

Water-contact surfaces must be emptied and cleaned between studies.A drainable stainless reservoir and accessible level path support controlled drying and cleaning.

Typical Applications

Cleanroom airflow visualizationDynamic smoke studiesUnidirectional-flow verificationDoorway and pressure-boundary studiesBiosafety cabinet and isolator airflow tracing

Technical Parameters

Representative portable water-fogger construction is listed below; reservoir size, hose length and outlet geometry can be matched to the visualization area.

Core Material	Ultrasonic transducer array, 316L stainless reservoir, polymer hose and electronic controls
Panel Thickness	Typically 1.0-1.5 mm for stainless enclosure panels

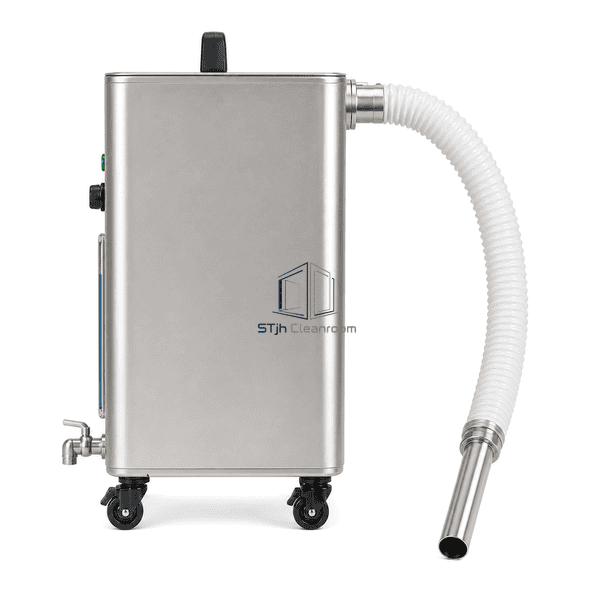

Effective Width	Approximately 150-250 mm across the portable generator body
Maximum Length	Approximately 300-450 mm for body; discharge hose typically 1500-3000 mm
Steel Facing Thickness	Typically 1.0-1.5 mm for 316L stainless enclosure and reservoir
Core Density	Approximately 7950-8000 kg/m³ for 316L stainless steel
Thermal Conductivity	Approximately 14-16 W/(m·K) for 316L stainless steel

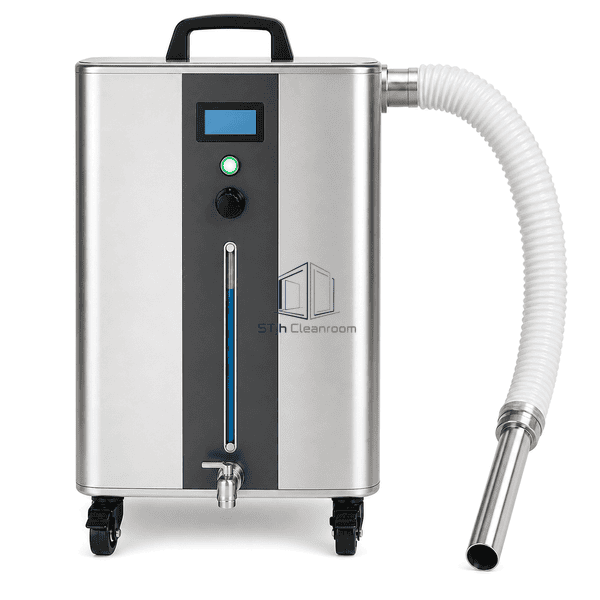

Surface Finish	Electropolished stainless body with graphite controls, clear level tube and white discharge hose

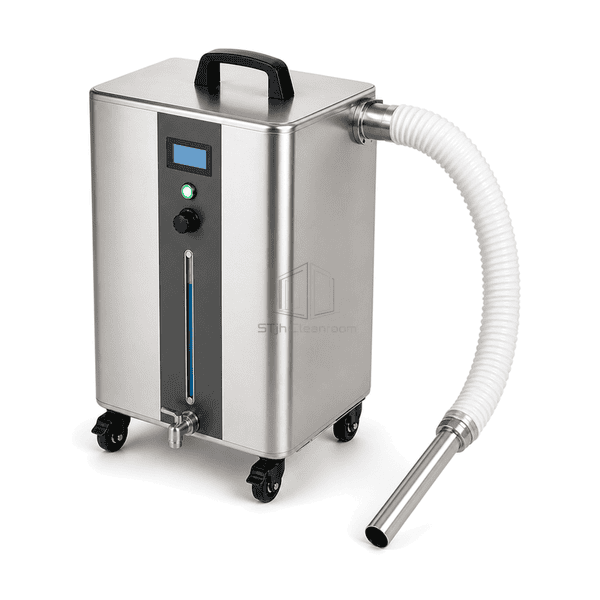

Joint Type	Sanitary reservoir closure with quick-connect fog hose and interchangeable outlet wand
Customization	Available based on the intended application and operating environment.

Available Options

Compact or high-output capacityFlexible dispersion hoseStraight or curtain outlet wandBattery or mains powerFog illuminatorShock-resistant transport case
