Cleanroom Data Outlet Panel

A flush stainless network plate that organizes sealed copper and fiber connections at the cleanroom wall while protecting unused ports.

Sealed RJ45 and Fiber Modules
Flush Stainless Faceplate
Retained Dust Caps
Permanent Port Identification

Request a Quote Browse Products

Product Introduction

The data outlet panel groups industrial RJ45, fiber, USB or other low-voltage interfaces on one cleanroom plate. Each bulkhead adapter seals to the panel and connects to fixed cabling in the rear box, avoiding loose patch leads through an open wall penetration. Retained caps close unused ports, and engraved labels map each connector to the network or equipment endpoint.

Key Features

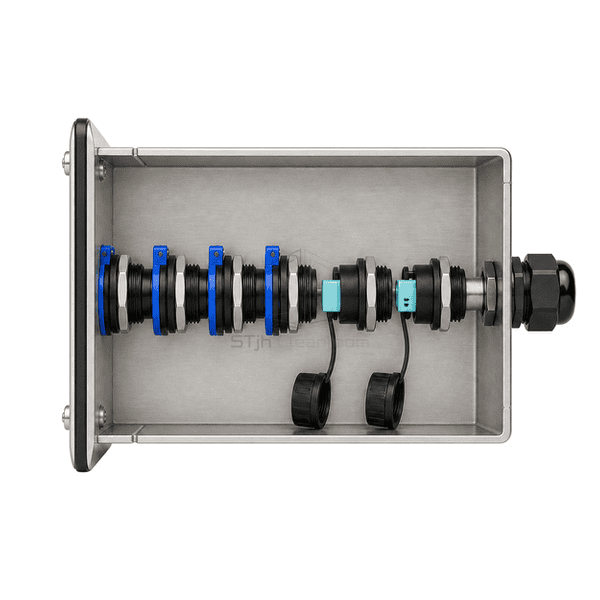

Bulkhead adapters isolate room patch leads from permanent in-wall cable.

Retained caps protect unused connector faces during cleaning.

Engraved port numbers remain legible after repeated disinfectant wiping.

The stainless plate closes the wall opening with one concealed gasket.

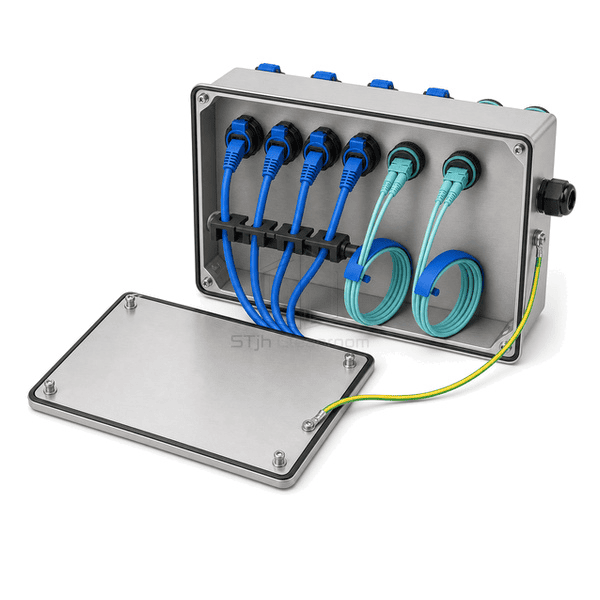

Rear cable management preserves bend radius and strain relief for copper and fiber.

Customer Product Concerns

Data access must remain flexible without leaving open ports, unlabeled cables or an unsealed path into the wall cavity.

Loose network cables pass directly through a drilled wall hole.Bulkhead couplers terminate permanent cabling at a sealed plate.

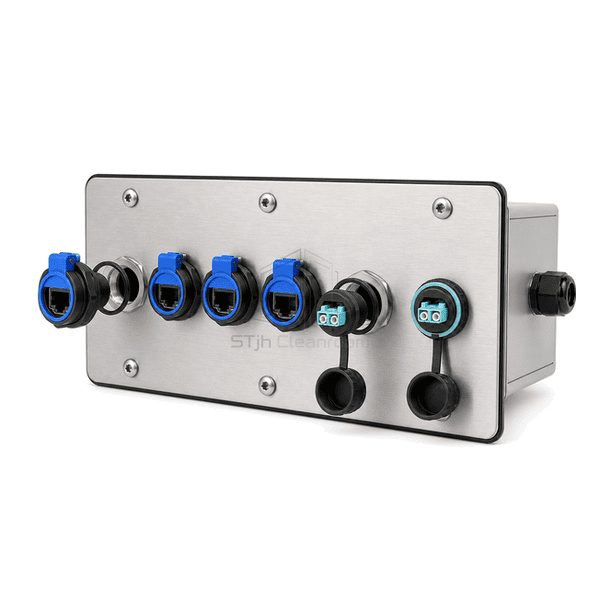

Unused RJ45 and fiber ports fill with dust or cleaning mist.Tethered caps close each unoccupied connector.

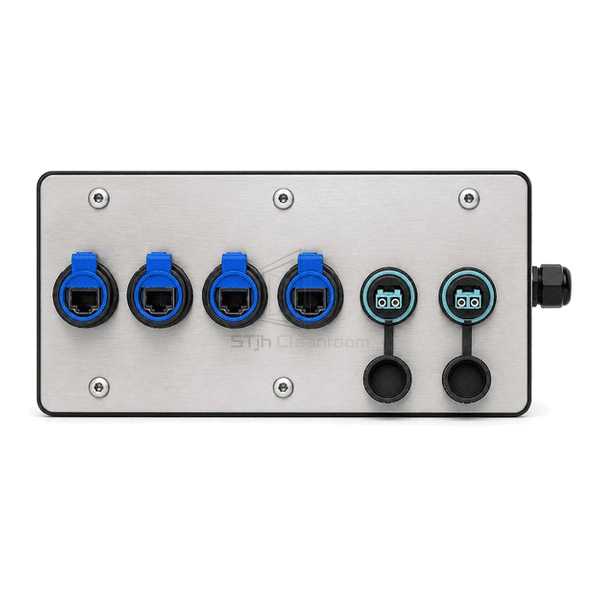

Patch leads are connected to the wrong network segment.Permanent port numbers and color coding identify each service.

Tight rear bends damage fiber at a shallow back box.A deeper cable-management zone controls bend radius and strain relief.

Typical Applications

Cleanroom equipment networkingLaboratory data connectionsMonitoring system portsTemporary validation instruments

Technical Parameters

Typical configurable construction ranges for a cleanroom data outlet panel are listed below.

Core Material	SUS304/SUS316L faceplate with industrial RJ45, fiber or USB bulkhead adapters and enclosed rear cable box
Panel Thickness	1.5-3.0 mm stainless faceplate thickness
Effective Width	120-400 mm data panel width
Maximum Length	Up to 500 mm overall panel height
Steel Facing Thickness	1.5-3.0 mm cleanroom-facing stainless plate
Core Density	Approximately 7900-8000 kg/m³ for the stainless plate material
Thermal Conductivity	14-16 W/(m·K) for the stainless faceplate
Surface Finish	Fine-brushed stainless with black or blue connector modules, colored port IDs and tethered caps
Joint Type	Flush gasketed plate with individually sealed bulkhead adapters and strain-relieved rear cable enclosure
Customization	Available based on the intended application and operating environment.

Available Options

Copper RJ45, fiber, USB or mixed interfacesSingle or multi-port layoutTethered sealing capsColor and laser port identification
