Cleanroom Equipment Spare Parts
Air Shower Nozzle

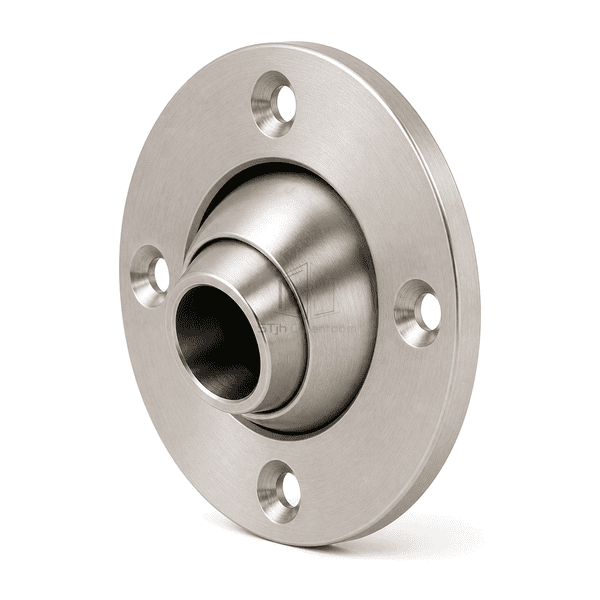

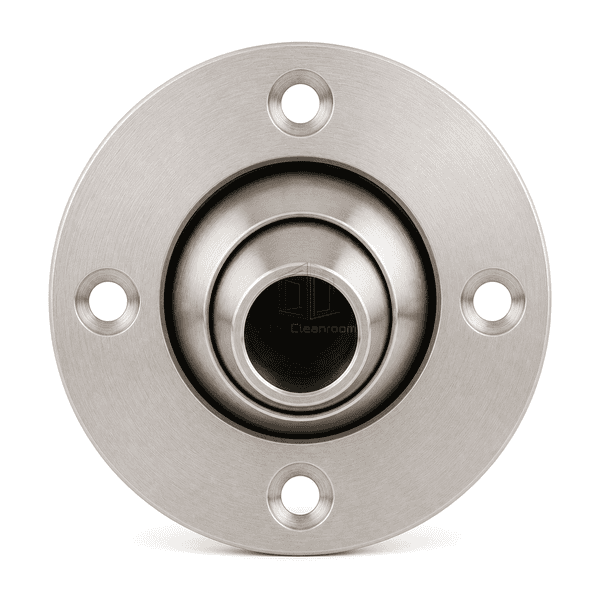

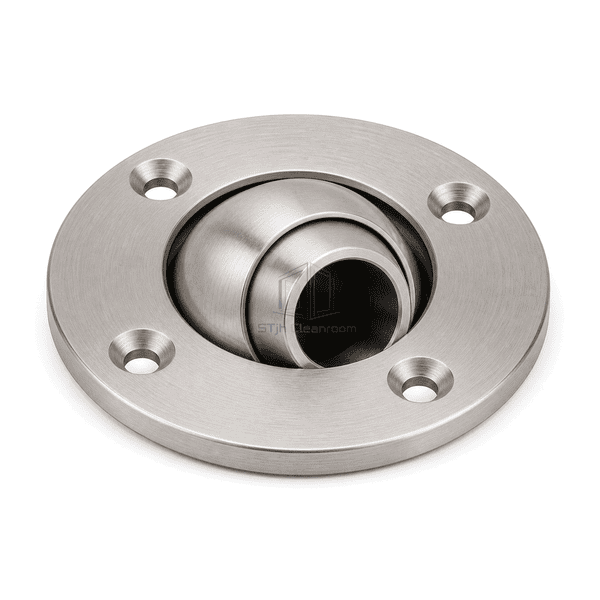

An adjustable stainless steel jet nozzle that directs high-velocity filtered air across garments, components and packaged materials inside an air shower.
- Directional Ball Joint
- Satin Stainless Steel
- Four-Hole Mounting Flange
- Focused Air Jet
Product Introduction

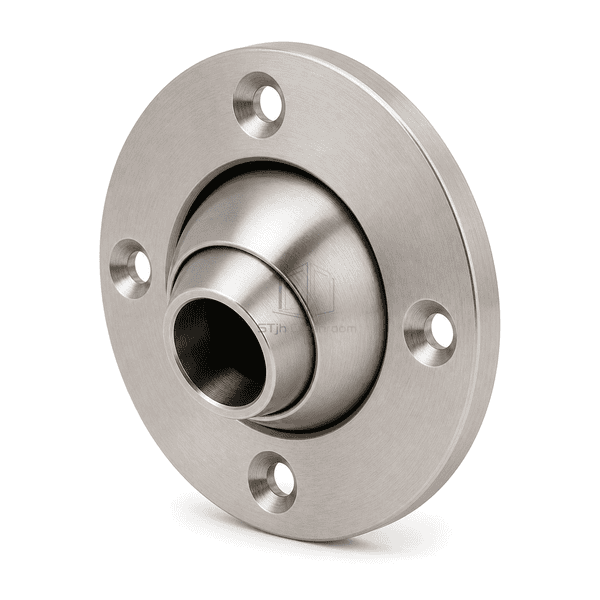

The air shower nozzle converts plenum airflow into a focused cleaning jet and allows its discharge direction to be set during commissioning. Its spherical eyeball rotates within a circular retaining flange, while a short smooth outlet limits unnecessary turbulence. Satin stainless-steel construction suits repeated cleaning and visually matches common air-shower interiors. Replacement work should verify flange diameter, mounting-hole pitch, outlet bore and available adjustment clearance.
Key Features
A smooth circular outlet provides a defined discharge path without protruding vanes.
Four countersunk mounting holes distribute clamping around the round flange.
Satin stainless-steel surfaces provide durable, cleanable exposed hardware.
Customer Product Concerns
Nozzle geometry and aiming range determine whether filtered air reaches the intended surfaces without leaving sheltered zones.
A fixed outlet cannot be aimed at garment folds or irregular material loads.The spherical eyeball provides directional adjustment during air-shower balancing.
An incorrect flange diameter leaves exposed cutouts in the cabinet panel.The mounting flange and hole pitch can be matched to the existing panel opening.
Rough internal edges create noise and an uneven discharge pattern.A smooth machined outlet supports a focused and repeatable air jet.
Corroded or difficult-to-clean outlets compromise the chamber interior.Satin stainless-steel construction provides a durable wipe-clean exposed surface.
Typical Applications
Personnel air shower walls and ceilingsMaterial air shower chambersCleanroom pass-through air showersReplacement nozzle upgrades and refurbishment
Technical Parameters
Typical construction and dimensional ranges for adjustable air shower jet nozzles are shown below.
| Core Material | 304 stainless-steel flange, spherical eyeball and discharge tube |
|---|---|
| Panel Thickness | 20-100 mm compatible air-shower wall or ceiling assembly |
| Effective Width | 60-120 mm nominal mounting-flange diameter |
| Maximum Length | Up to 110 mm overall nozzle depth |
| Steel Facing Thickness | 1.0-2.0 mm nominal formed or machined stainless-steel section |
| Core Density | 7900-8000 kg/m³ for stainless-steel components |
| Thermal Conductivity | 14-16 W/(m·K) for austenitic stainless steel |
| Surface Finish | Fine satin-brushed natural stainless steel with smooth outlet bore |
| Joint Type | Adjustable spherical eyeball retained in a four-hole circular mounting flange |
| Customization | Available based on the intended application and operating environment. |
Available Options
Alternative flange diametersMatched outlet bore sizesCustom mounting-hole pitch304 or 316 stainless-steel construction
Planning a Air Shower Nozzle specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
