Air Filters and Chemical Filtration

Washable Aluminum Mesh Filter

A lightweight permanent filter that uses multiple layers of crimped aluminum mesh to collect coarse dust, lint and grease by impingement.

All-Aluminum Construction
Multi-Layer Crimped Mesh
High-Airflow Washability
Corrosion-Resistant Frame

Request a Quote Browse Products

Product Introduction

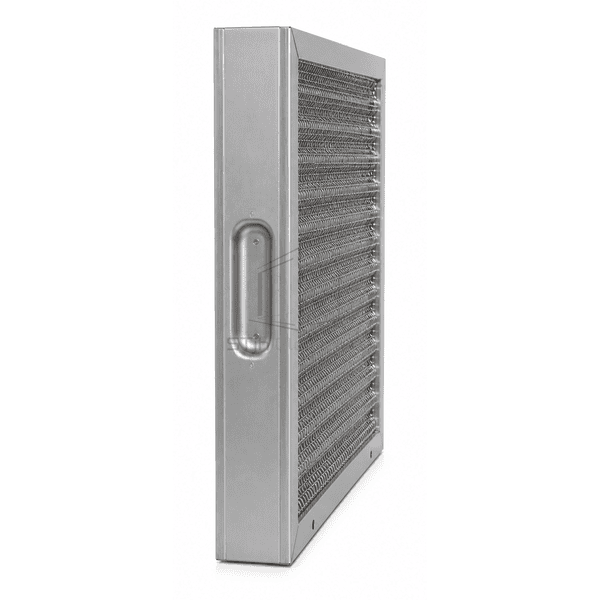

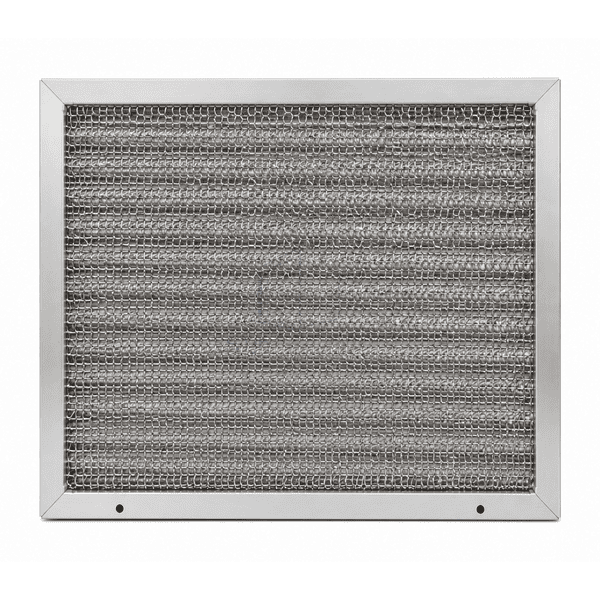

The washable aluminum mesh filter packs alternating layers of crimped aluminum screen and expanded metal into an all-aluminum frame. Successive changes in mesh direction create a tortuous air path that brings coarse particles, lint and light oil mist into contact with the large metal surface area. Protective face grids retain the media under elevated face velocity, while drain openings prevent wash water from remaining inside the lower rail. The non-corroding lightweight construction is suited to repeated cleaning where a disposable fiber pad would be consumed quickly.

Key Features

Alternating crimp directions create multiple impingement surfaces without densely blocking the air path.

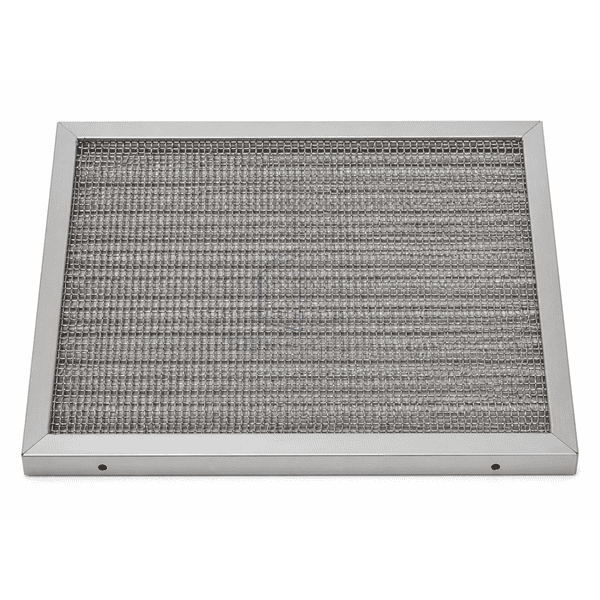

Aluminum media, face grids and frame keep the assembly lightweight and corrosion resistant.

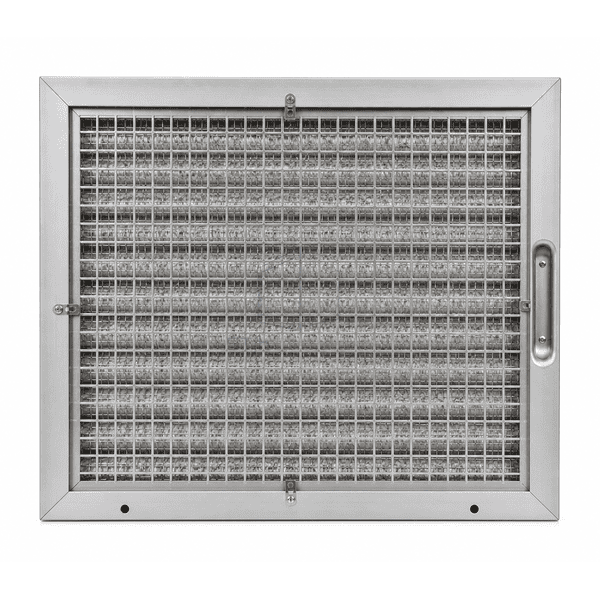

Rigid expanded-metal retainers prevent the internal screens from shifting during washing.

Drain slots in the frame allow rinse water to leave the media pack before reinstallation.

Customer Product Concerns

Permanent aluminum filters must balance open airflow with enough tortuous metal surface to collect contamination and survive frequent washing.

Disposable media clogs rapidly in oily or lint-heavy intake air.Layered aluminum mesh presents washable impingement surfaces that can be restored with water and suitable detergent.

A dense metal pack creates excessive fan resistance after only moderate loading.Crimped layers maintain open passages and distribute contamination through the filter depth.

Loose internal screens settle and leave an unfiltered path across the top of the frame.Expanded-metal face retainers compress and locate every media layer around the full perimeter.

Rinse water trapped in the bottom channel accelerates staining and microbial growth.Drain slots and an all-aluminum construction support complete drying before the filter returns to service.

Typical Applications

Outdoor-air intake pre-filtrationCompressor and generator ventilationCommercial kitchen make-up airIndustrial cabinets and machinery coolingWashable AHU coarse-filter banks

Technical Parameters

Typical construction ranges for an all-aluminum washable mesh panel are shown below.

Core Material	Multiple layers of crimped aluminum wire cloth and expanded aluminum mesh
Panel Thickness	25, 50 or 100 mm nominal depth
Effective Width	300-610 mm standard face width
Maximum Length	Up to 1220 mm with suitable internal mesh support
Steel Facing Thickness	0.50-0.80 mm aluminum expanded-metal face retainers; no steel in the standard version
Core Density	Approximately 2700 kg/m³ for the aluminum mesh alloy
Thermal Conductivity	Approximately 205-235 W/(m·K) for the aluminum alloy media
Surface Finish	Mill-finish or conversion-coated natural aluminum
Joint Type	Crimped mesh layers mechanically retained between expanded-aluminum faces in a folded frame
Customization	Available based on the intended application and operating environment.

Available Options

25 mm single-bank or 50 mm double-bank constructionDry or light-tackified expanded-aluminum layersIntegrated handles and drain holesCustom face size and corrugated-mesh layer count
