Laminar Flow and Containment Equipment
Vertical Laminar Flow Clean Bench
A top-filtered clean bench that directs uniform HEPA-filtered air downward across non-hazardous products and the stainless work surface.
- Top-Mounted HEPA Supply
- Uniform Vertical Downflow
- Stainless Work Surface
- Compact Bench Depth
Product Introduction

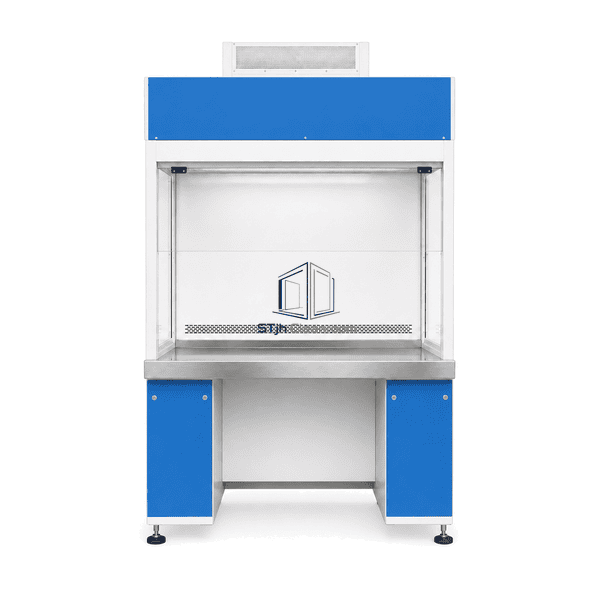

The vertical clean bench places its fan-filter section above the work zone so filtered air moves from the ceiling diffuser toward the perforated or open work area. This arrangement keeps the cabinet depth compact and allows larger instruments to sit near the rear wall without blocking a rear filter face. The inner liner and work tray are formed from cleanable stainless steel, while a clear front sash helps limit room-air disturbance. It is intended for non-hazardous assembly, preparation and inspection work that requires product protection rather than personnel containment.
Key Features

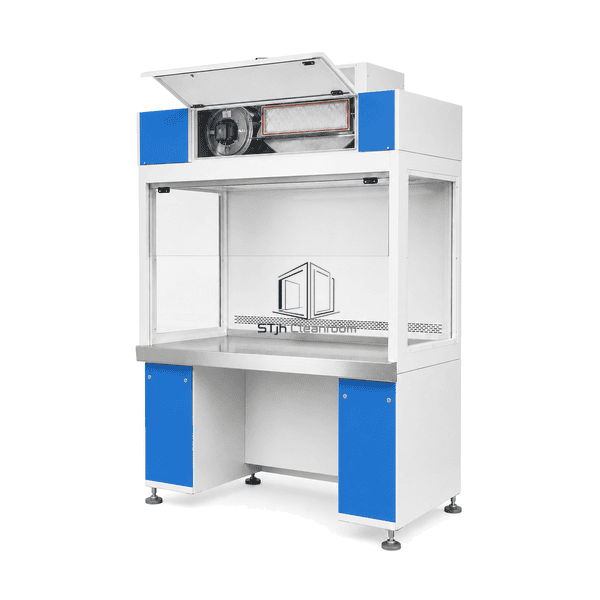

The top-mounted fan-filter section preserves usable rear-wall space for instruments and fixtures.

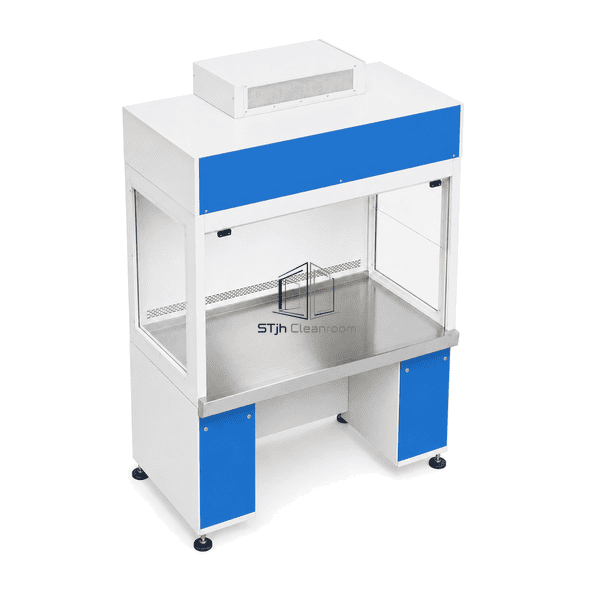

A removable stainless work tray exposes the lower collection area for cleaning.
The adjustable front sash reduces cross-drafts while retaining comfortable hand access.
A differential-pressure indicator makes filter loading visible during routine operation.
Customer Product Concerns
A vertical bench must maintain clean downward airflow without allowing tall equipment, room drafts or service work to compromise the protected zone.
Tall instruments create stagnant pockets beneath a small supply grille.A full-width ceiling diffuser distributes air around equipment footprints from above.
Room movement disturbs the open working face.The lowered clear sash and side panels shield the downflow while preserving access.
Spills collect beneath a fixed work surface.Lift-out stainless work sections provide direct cleaning access to the lower pan.
Operators cannot see gradual filter loading.A visible pressure gauge or electronic alarm indicates increasing resistance.
Typical Applications
Medical-device assemblyOptical component inspectionCulture-media preparation with non-hazardous materialsPrecision electronics handling
Technical Parameters
Typical configurable construction ranges for a vertical laminar flow clean bench are listed below.
| Core Material | SUS304 work-zone liner with a powder-coated steel outer cabinet and mineral-wool acoustic infill |
|---|---|
| Panel Thickness | 25-40 mm double-skin cabinet sections |
| Effective Width | 900-1800 mm clear working width |
| Maximum Length | Up to 2200 mm overall cabinet height |
| Steel Facing Thickness | 0.8-1.2 mm powder-coated steel; 1.0-1.2 mm SUS304 work-zone liner |
| Core Density | 80-120 kg/m³ mineral-wool acoustic infill |
| Thermal Conductivity | 0.035-0.045 W/(m·K) for the mineral-wool infill |
| Surface Finish | Low-sheen white powder coating outside with brushed SUS304 work surfaces |

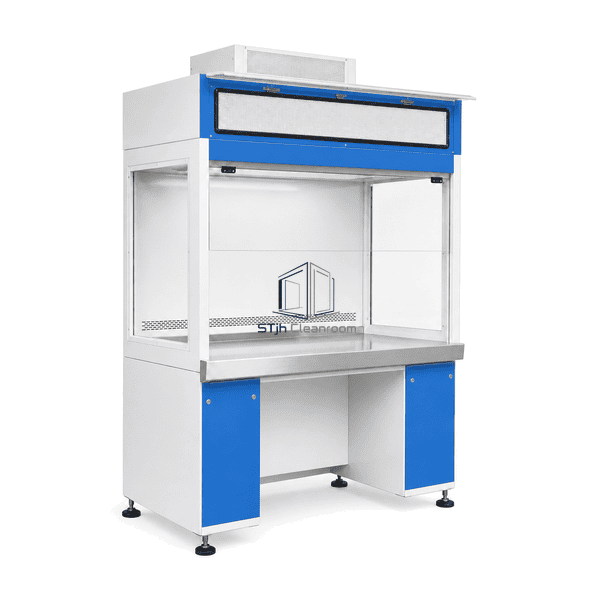

| Joint Type | Sealed double-skin cabinet seams with a removable work tray and gasketed HEPA filter frame |
| Customization | Available based on the intended application and operating environment. |
Available Options
HEPA or ULPA final filterManual or motorized front sashUV-resistant clear side panelsElectrical outlets and service taps
Planning a Vertical Laminar Flow Clean Bench specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
