Cleanroom Testing and Validation Instruments
Thermal Imaging Camera

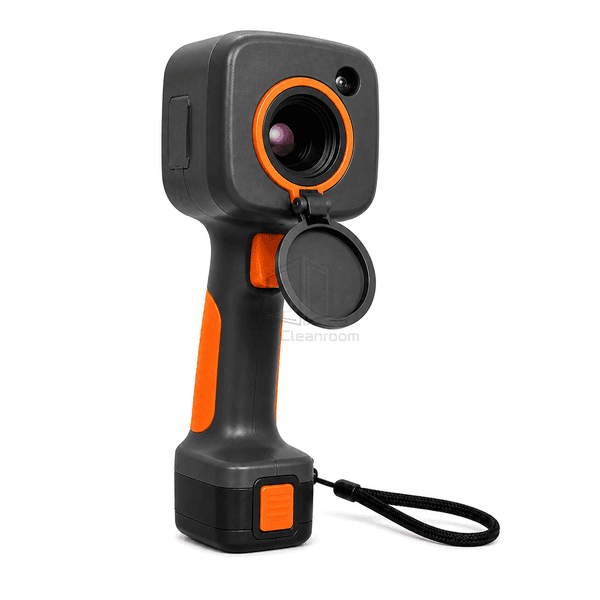

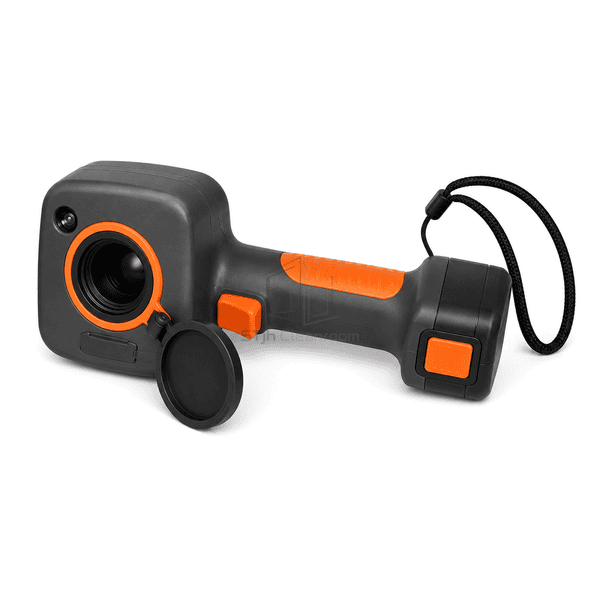

A handheld gun-style thermal imaging camera with a radiometric infrared detector, visible-light context, rear color display and trigger capture for non-contact surface-temperature surveys.
- Radiometric non-contact thermal surveys.
- Visible-light context and palette control.
- Emissivity correction and stored analysis data.
Product Introduction

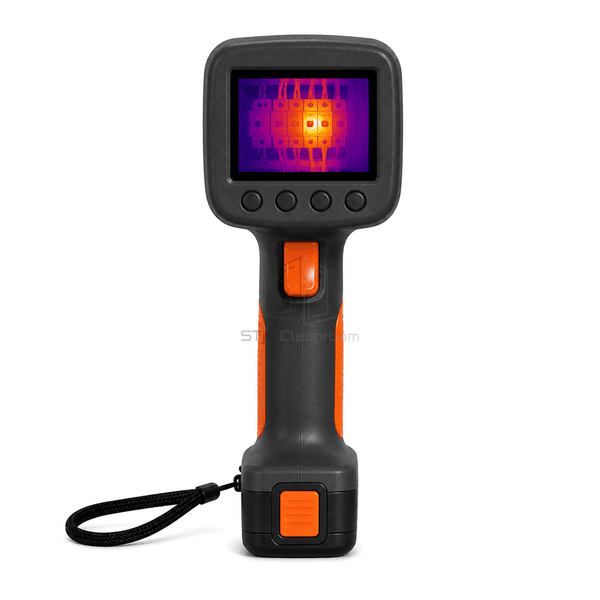

This portable thermal imaging camera converts long-wave infrared radiation from a surface into a radiometric temperature map. An uncooled microbolometer, protected infrared optic and onboard visible-light camera help the operator locate electrical, mechanical, HVAC and enclosure anomalies without contacting the target. The rear color display supports palette selection, spot and area analysis, while adjustable emissivity and reflected-temperature inputs address common surface-measurement variables. Trigger capture stores the thermogram with its measurement data so the original radiometric file can be reviewed and reported after the inspection.
Key Features

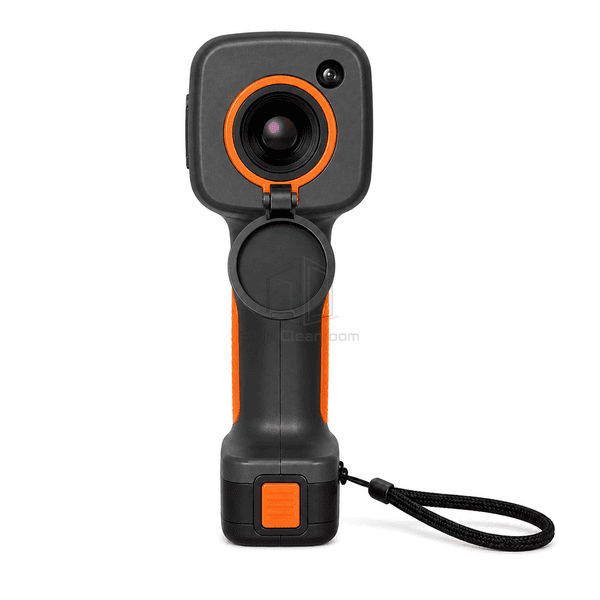

Visible-light camera supplies recognizable equipment context and supports blended or picture-in-picture viewing.
Center spot plus movable area minimum and maximum tools help screen a surface for localized anomalies.
Adjustable emissivity and reflected-temperature inputs support measurements on materials with different radiative properties.
Multiple palettes and manual or automatic level-and-span settings make subtle temperature patterns easier to distinguish.
One-handed trigger capture, rear color display, protected lens and removable battery suit routine field inspection.
Customer Product Concerns
Useful thermography depends on surface emissivity, reflected surroundings, focus, viewing distance, spatial resolution and stable operating load; a thermogram shows a surface-temperature pattern that should be interpreted with inspection context.
Low-emissivity metal can reflect surrounding heat and produce a misleading apparent temperature.Set emissivity and reflected temperature for the surface, use a suitable high-emissivity reference patch where permitted, and compare like surfaces from a controlled angle.
A blurred image or excessive working distance can conceal a small thermal anomaly.Use the specified focus method, observe the minimum focus distance, and move close enough for the target to cover multiple detector pixels while maintaining safe clearance.
Automatic color scaling can make similar temperatures look dramatically different between two images.Lock or manually set level and span when comparing assets, and retain the numerical spot or area readings with the thermogram.
A thermal pattern may indicate a surface anomaly without identifying its underlying cause.Store the radiometric and visible images together, document operating load and conditions, then confirm significant findings with the appropriate electrical, mechanical or airflow test.
Typical Applications
Electrical-panel and control-component temperature surveysAir-handling unit, duct and HVAC distribution checksInsulation, door-seal and building-envelope investigationsMotor, bearing, pump and rotating-equipment screeningProcess-equipment and cleanroom utility troubleshooting
Technical Parameters
Representative construction for a professional handheld thermal imaging camera is listed below; detector resolution, field of view, focus method, temperature range and communication options should be selected for the intended survey distance and target size.
| Core Material | PC/ABS gun-style enclosure with TPE grip, uncooled VOx microbolometer, germanium infrared optic, visible-light CMOS camera, color LCD, lithium-ion battery and stainless fasteners |
|---|---|
| Panel Thickness | Typically 2.0-3.0 mm for the molded enclosure wall |
| Effective Width | Approximately 90-120 mm across the optical head |
| Maximum Length | Approximately 210-260 mm from lens bezel to handle base |
| Steel Facing Thickness | Typically 0.5-1.0 mm for internal EMI shielding, fasteners and threaded inserts |
| Core Density | Approximately 1100-1200 kg/m³ for the PC/ABS enclosure blend |
| Thermal Conductivity | Approximately 0.19-0.22 W/(m·K) for the PC/ABS enclosure blend |
| Surface Finish | Fine-texture graphite PC/ABS body, orange TPE grip and trigger, black lens cap, coated germanium optic and full-color rear LCD |
| Joint Type | Threaded or bayonet infrared-lens bezel with hinged protective cap, sealed data-interface cover, slide-lock battery compartment and 1/4-inch tripod insert |
| Customization | Available based on the intended application and operating environment. |
Available Options
Infrared detector resolutions from survey-grade to higher-detail configurationsFixed-focus or manual-focus infrared opticsWide-angle or telephoto lens configurationVisible-light fusion and picture-in-picture modesRemovable battery, charging cradle and spare-battery kitRadiometric analysis software, data cable, wrist strap and protective case
Planning a Thermal Imaging Camera specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
