Cleanroom Furniture and Stainless Steel Products
Stainless Steel Shoe Rack
An electropolished Type 304 stainless wire rack with 40 divided shoe compartments, ten storage rows and open front-and-back access for cleanroom gowning areas.
- Forty divided shoe compartments
- Ten open storage rows
- Two-sided gowning-room access
- Electropolished Type 304 wire
Product Introduction

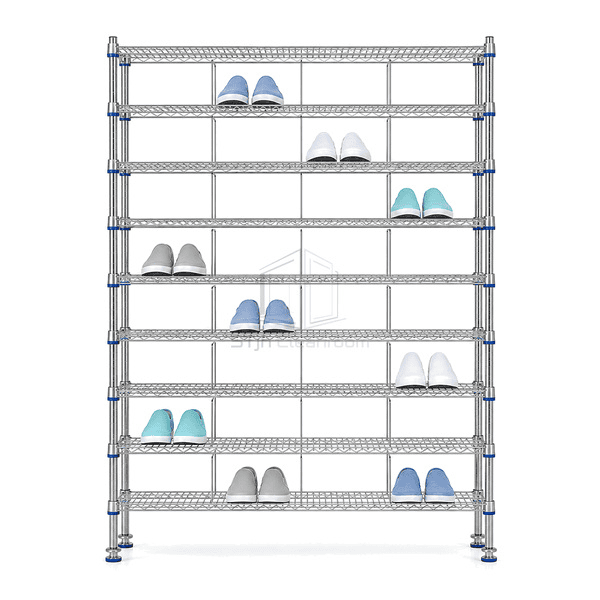

The stainless steel shoe rack organizes forty pairs of clean footwear in a shallow open-wire frame measuring approximately 356 mm deep. Eleven horizontal wire shelves create ten storage rows, and stainless divider rods with formed tabs split each row into four equal compartments. The 165 mm vertical pitch accommodates common cleanroom shoes while keeping every pair visible from the front or back. Electropolished Type 304 posts and shelf wires expose minimal horizontal area to room airflow. Threaded leveling bolts stabilize the tall 914 mm-wide rack without closing the floor zone beneath it.
Key Features

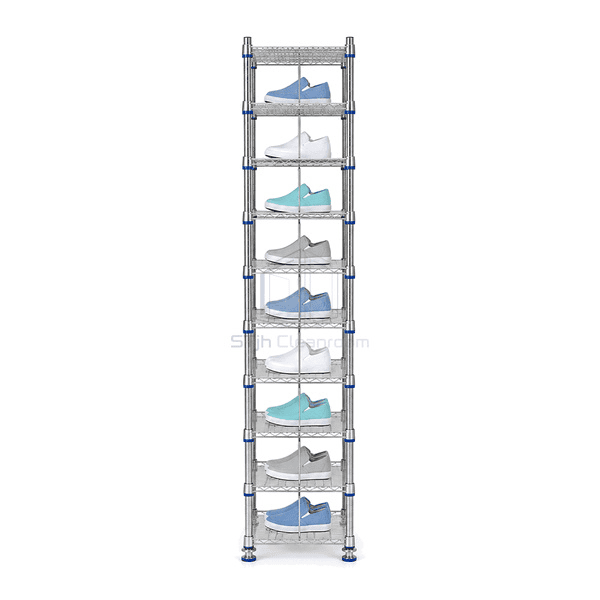

A shallow 356 mm depth and access from both faces allow the rack to serve a gowning-room boundary without blocking the aisle.

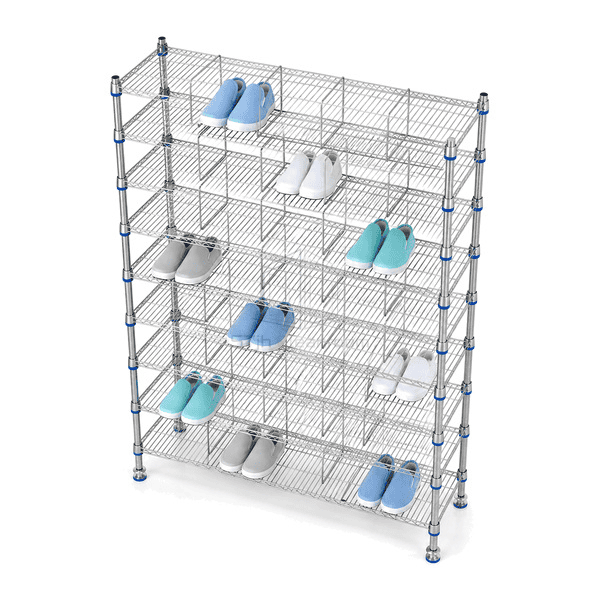

Open wire shelves, rods and tabs support footwear while leaving room air and cleaning spray paths unobstructed.
Removing selected divider rods or shelf levels creates taller positions for clean boots while retaining the same four-post frame.
Customer Product Concerns
High-volume gowning areas need individually visible footwear positions without enclosed cubbies that obstruct airflow or trap debris.
Shoes stored in open piles become mixed and consume valuable gowning-room floor space.Ten rows divided into four positions provide forty consistent pair locations in a narrow vertical footprint.
Closed cubbies conceal debris and restrict air movement around damp footwear.Electropolished wire shelves and rod dividers keep the storage volume open from both sides.
Single-sided racks create congestion when personnel enter and exit through adjacent gowning zones.The shallow frame is accessible from the front and back so pairs can be reached from either aisle.
Uniform low compartments cannot accommodate occasional clean boots.Selected divider rods or shelf levels can be omitted to form taller locations within the modular post structure.
Typical Applications
Cleanroom gowning-room shoe organizationPharmaceutical personnel entrancesBiotechnology change areasMedical-device footwear stagingLaboratory clean-zone access points
Technical Parameters
Typical configurable specifications for a 40-compartment stainless cleanroom shoe rack are listed below.
| Core Material | Type 304 stainless four-post frame with 11 electropolished wire shelves, divider rods, formed tabs and threaded leveling bolts |
|---|---|
| Panel Thickness | 3.0 mm shelf wire with 6.0 mm perimeter and divider rods |
| Effective Width | 914 mm overall rack width |
| Maximum Length | 2210 mm maximum overall height including leveling bolts |
| Steel Facing Thickness | 1.5 mm wall thickness for 25 mm Type 304 stainless tubular posts |
| Core Density | 7900–8000 kg/m³ for Type 304 stainless steel |
| Thermal Conductivity | 14–17 W/(m·K) for Type 304 stainless steel |
| Surface Finish | Bright electropolished Type 304 stainless shelves, posts, divider rods and formed tabs |

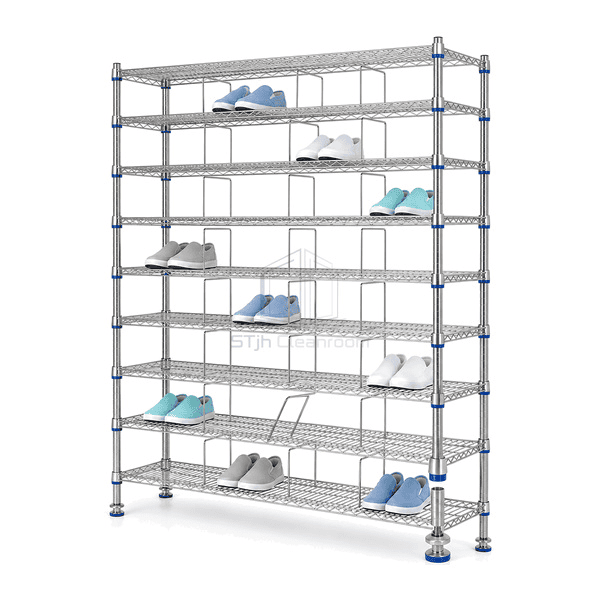

| Joint Type | Tapered shelf collars on split post sleeves with fixed rod-and-tab compartment dividers, 165 mm row spacing and threaded leveling bolts |
| Customization | Available based on the intended application and operating environment. |
Available Options
50-, 60- or 80-compartment widthsTaller clean-boot openingsNumbered blue compartment tagsStainless wall or floor anchoring brackets
Planning a Stainless Steel Shoe Rack specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
