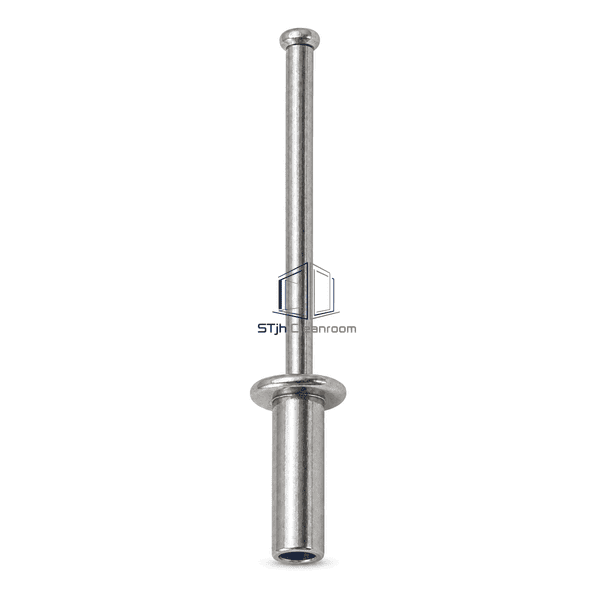

Three-quarter view of a stainless steel blind rivet for cleanroom assembly

Cleanroom Installation Accessories

Stainless Steel Rivet

A stainless steel blind rivet that forms a permanent mechanical joint where cleanroom sheet-metal components are accessible from only one side.

One-Side Installation
Stainless Construction
Controlled Clamping
Compact Flush Head

Request a Quote Browse Products

Product Introduction

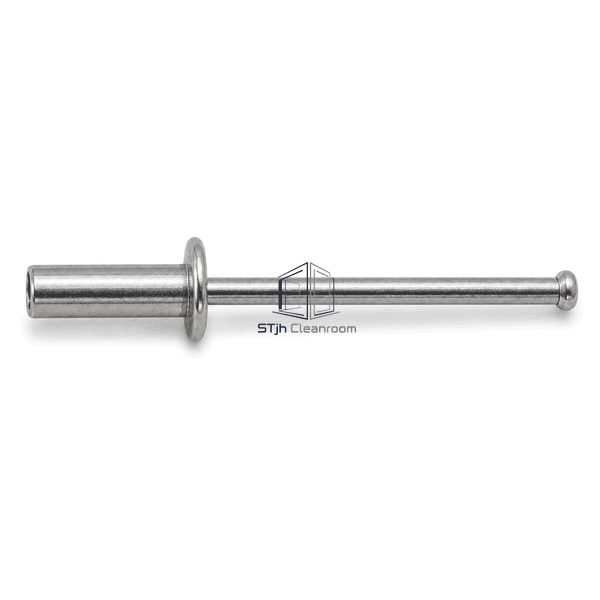

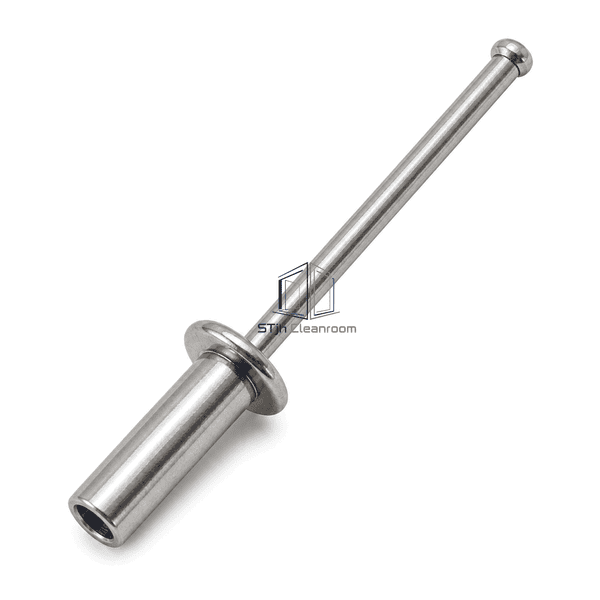

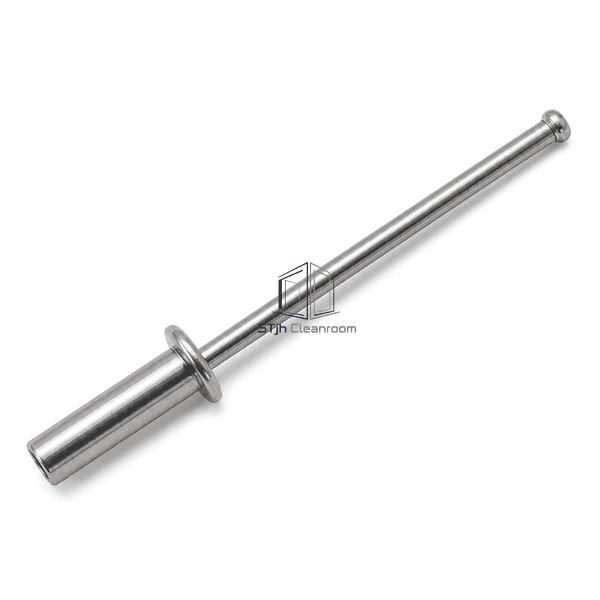

This blind rivet combines a tubular stainless sleeve, low-profile flange head and central pull mandrel. A compatible riveting tool draws the mandrel to expand the concealed end of the sleeve, clamping overlapping sheet-metal parts without rear access. The compact head suits trims, closures and light-gauge cleanroom fabrications where exposed fasteners should remain neat and easy to wipe.

Key Features

Blind installation secures overlapping components when the rear face cannot be reached.

Stainless construction supports corrosion resistance in routinely cleaned interior environments.

The formed rear bulb spreads clamping force across thin sheet instead of relying on cut threads.

A low domed head creates a compact exposed profile on trims and closures.

Customer Product Concerns

Thin cleanroom sheet-metal parts often require a permanent joint even when finished panels block access to the rear surface.

Installers cannot hold a nut behind a closed panel or trim cavity.Blind-rivet setting forms the concealed retaining bulb entirely from the accessible face.

Ordinary carbon-steel fasteners can stain or corrode after repeated cleaning.A stainless sleeve and compatible mandrel provide improved corrosion resistance for controlled interiors.

Oversized fasteners distort light-gauge sheet around the fixing point.Correct rivet diameter, grip range and drilled-hole tolerance distribute clamp load without excessive tightening torque.

Protruding hardware creates an untidy, difficult-to-wipe surface.The compact domed flange leaves a smooth exposed head after the mandrel breaks.

Typical Applications

Cleanroom trim fasteningSheet-metal enclosure assemblyPanel closure stripsDoor and window frame accessoriesLight-duty duct and service covers

Technical Parameters

Typical construction and compatibility ranges for stainless blind rivets used with cleanroom sheet-metal accessories are listed below.

Core Material	A2 or A4 stainless-steel sleeve with stainless pull mandrel
Panel Thickness	0.8-6.0 mm combined material grip range
Effective Width	3.2-6.4 mm nominal rivet diameter
Maximum Length	Up to 25 mm rivet body length
Steel Facing Thickness	0.30-0.80 mm tubular sleeve wall
Core Density	Approximately 7900-8000 kg/m³ for stainless steel
Thermal Conductivity	Approximately 14-17 W/(m·K) for austenitic stainless steel
Surface Finish	Natural passivated silver stainless-steel finish
Joint Type	Blind mechanical fastening with mandrel-expanded sleeve and domed flange head
Customization	Available based on the intended application and operating environment.

Available Options

A2 or A4 stainless gradeStandard or large flange headMultiple diameters and grip rangesSealed-end body for reduced leakage paths

Planning a Stainless Steel Rivet specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
