Cleanroom Furniture and Stainless Steel Products
Stainless Steel Hand Washing Sink
A compact wall-mounted Type 304 stainless basin with a mechanical knee push panel, coved rectangular bowl, sloped backsplash, premixing valve and 40 mm waste outlet.
- Mechanical knee water control
- Coved single-piece basin
- 30-degree sloped backsplash
- Accessible plumbing shroud
Product Introduction

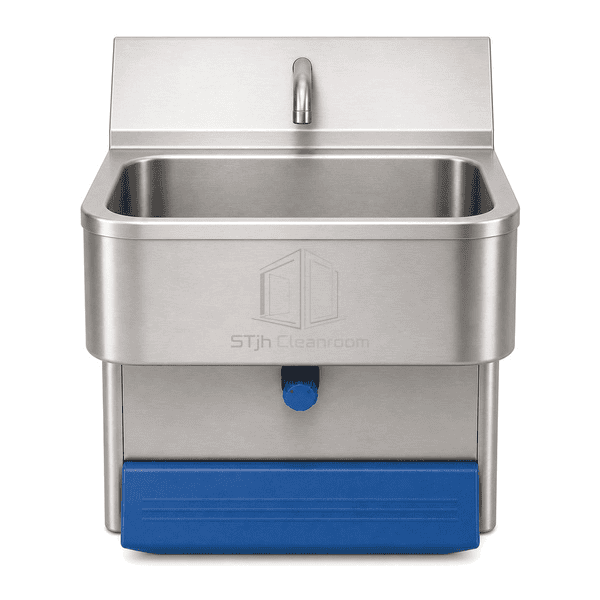

This stainless steel hand washing sink uses a broad front knee panel to actuate the concealed mechanical water valve, leaving both hands free throughout washing. The 460 mm-wide Type 304 basin has radiused internal corners, an integral tap ledge and a 30-degree sloped backsplash that drains splashes toward the bowl. A preset hot/cold premixing valve supplies the fixed stainless spout, while a removable lower shroud protects the valve, hoses and 40 mm drain without sealing them into an inaccessible cabinet.
Key Features

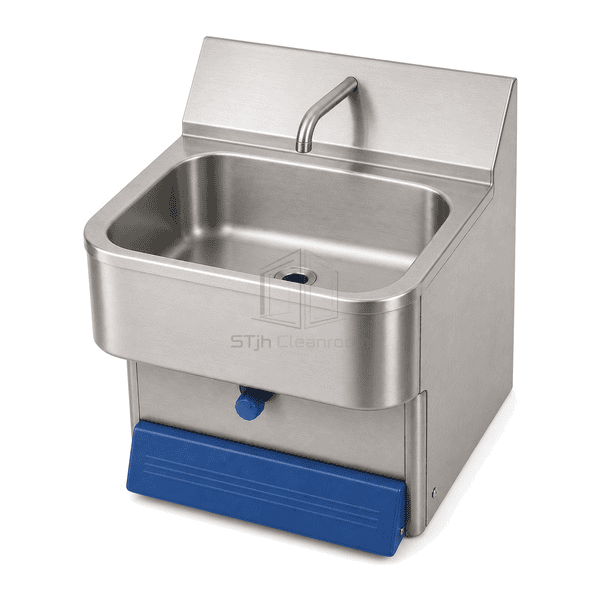

The coved rectangular bowl and welded drain transition remove sharp internal intersections around standing water.

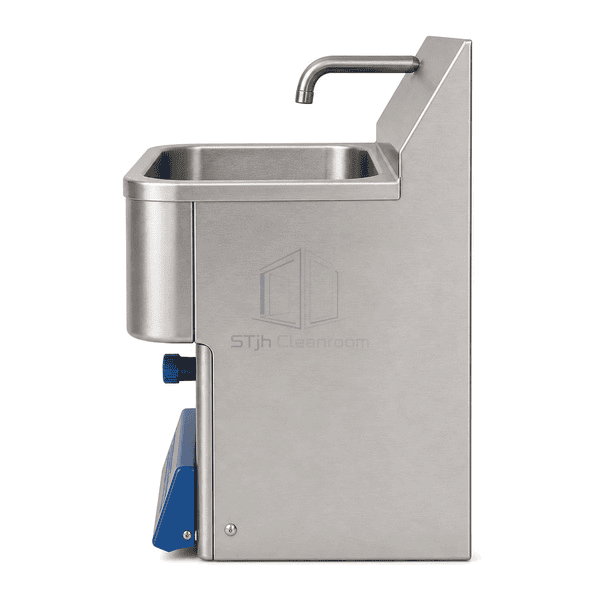

The backward-sloped backsplash returns spray toward the bowl rather than forming a horizontal ledge.
A removable stainless shroud conceals plumbing while retaining direct service access to the mixer and valve linkage.
Customer Product Concerns
Entry hand washing needs reliable hands-free water control, a compact wall footprint and serviceable plumbing without introducing electronic components into every station.
Operators touch a faucet handle immediately after soaping their hands.The broad knee panel controls the valve while both hands remain over the bowl.
Flat splashbacks retain droplets behind the spout and mixer area.The 30-degree rear panel slopes continuously back toward the coved basin.
Square bowl seams and separate tap decks trap residue around their junctions.A formed one-piece bowl and integral tap ledge use welded radiused transitions.

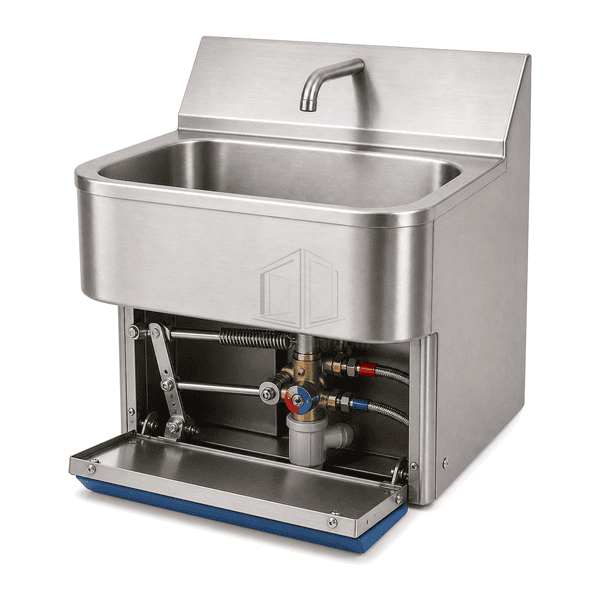

Fully enclosed cabinets make mechanical valve and drain maintenance slow.The front shroud removes independently to expose the linkage, mixer and 40 mm waste.
Typical Applications
Cleanroom personnel entrance hand washingFood high-care hygiene stationsPharmaceutical support laboratoriesMedical-device production wash pointsControlled packaging room access
Technical Parameters
Typical configurable specifications for a compact knee-operated stainless hand washing sink are listed below.
| Core Material | Type 304 stainless coved bowl, sloped backsplash, knee panel, mechanical valve, premixer and removable plumbing shroud |
|---|---|
| Panel Thickness | 1.2 mm formed basin, splashback and front shroud |
| Effective Width | 460 mm overall single-station width |
| Maximum Length | 524 mm maximum overall height including backsplash |
| Steel Facing Thickness | 1.2 mm Type 304 stainless exposed sheet surfaces |
| Core Density | 7900–8000 kg/m³ for Type 304 stainless steel |
| Thermal Conductivity | 14–17 W/(m·K) for Type 304 stainless steel |
| Surface Finish | Uniform #4 satin-brushed exterior with smooth coved bowl and passivated welds |
| Joint Type | Wall hanger bracket with sealed backsplash, knee-linked mechanical valve, flexible inlet unions and 40 mm welded waste |
| Customization | Available based on the intended application and operating environment. |
Available Options
Cold-water-only valveTimed mechanical shutoffIntegrated soap dispenserFloor-standing pedestal frame
Planning a Stainless Steel Hand Washing Sink specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
