Electropolished stainless cleanroom gowning bench with parallel rod seat

Cleanroom Furniture and Stainless Steel Products

Stainless Steel Gowning Bench

An electropolished Type 304 stainless gowning bench with a parallel-rod seat, recessed welded base and adjustable non-marking glides for open, easy-access footwear changing areas.

Airflow-through rod seat
Recessed floor-cleaning base
Continuous welded construction
Electropolished Type 304 stainless steel

Request a Quote Browse Products

Product Introduction

This stainless steel gowning bench uses closely spaced round rods instead of a broad sheet seat, leaving an open airflow and visual path through the changing station. The cylindrical end frames are recessed from the seat corners to increase toe clearance when personnel reach footwear. Each rod is continuously joined to the perimeter rails, while smooth electropolished Type 304 surfaces and rounded exposed edges support routine wipe-down. Four threaded cleanroom glides level the freestanding bench without adding a shoe shelf or closed under-seat cavity.

Key Features

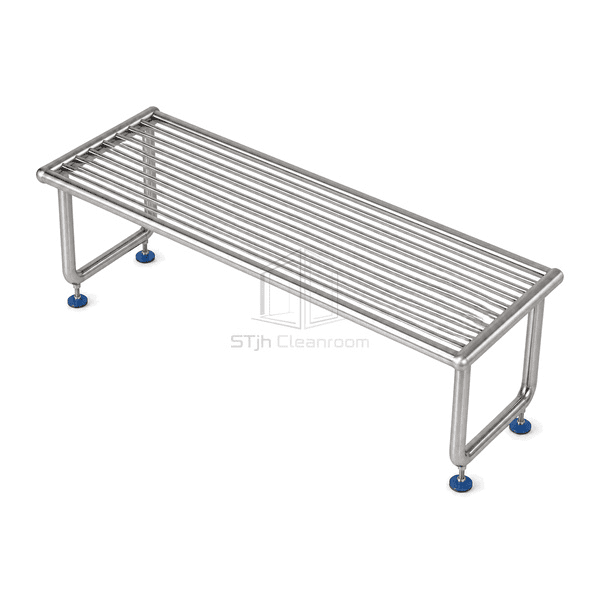

Parallel stainless seat rods reduce uninterrupted horizontal collection area while supporting a comfortable seated changing position.

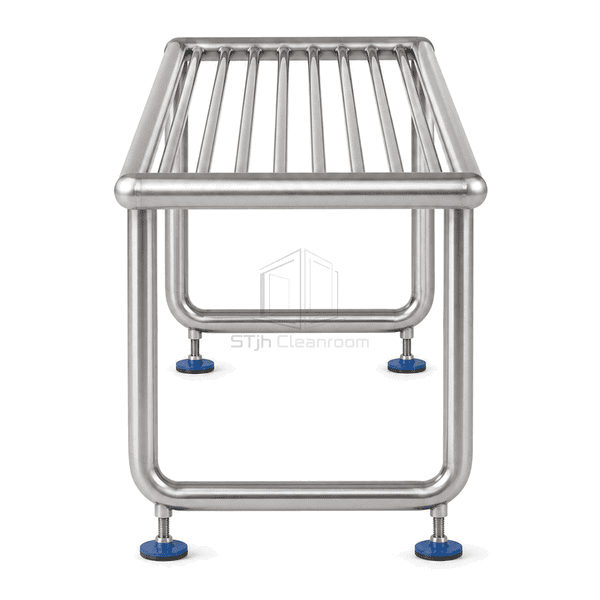

The recessed end frames leave usable toe and heel clearance beneath both ends of the gowning position.

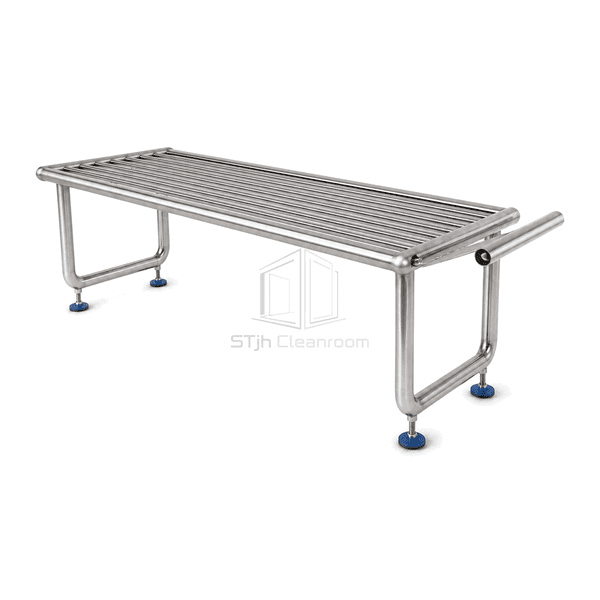

Continuous welds close the rod-to-rail interfaces instead of leaving mechanical fastener pockets across the seat.

Wide non-marking leveling glides stabilize the bench and preserve access to the surrounding floor perimeter.

Customer Product Concerns

A frequently used gowning seat must keep its under-bench area open, avoid broad particle ledges and remain stable while operators reach toward their feet.

A solid seat creates a broad upward-facing surface that needs frequent complete wiping.Closely spaced round rods reduce the continuous horizontal area and expose all sides for cleaning.

Square legs positioned at the corners obstruct shoes and restrict the operator's foot movement.Recessed cylindrical end frames move the support line away from the active changing zone.

Bolted seat slats leave repeated crevices and loose hardware above the gowning floor.Each stainless rod is continuously welded into smooth perimeter rails.

A long bench can rock when one operator sits close to an end on an uneven floor.Four independently threaded non-marking glides establish a stable bearing plane.

Typical Applications

Personnel airlock garment and footwear changesPharmaceutical gowning-room seatingBiotechnology clean apparel transitionsSemiconductor fab changing areasHospital sterile-support change rooms

Technical Parameters

Typical configurable specifications for an airflow-through electropolished stainless gowning bench are listed below.

Core Material	Type 304 stainless parallel seat rods, cylindrical recessed end frames, welded perimeter rails and non-marking leveling glides
Panel Thickness	25 mm diameter solid or sealed hollow stainless seat rods
Effective Width	1200 mm standard usable seating length
Maximum Length	450 mm maximum overall bench height
Steel Facing Thickness	1.5 mm Type 304 stainless tubular frame wall thickness
Core Density	7900–8000 kg/m³ for Type 304 stainless steel
Thermal Conductivity	14–17 W/(m·K) for Type 304 stainless steel
Surface Finish	Uniform electropolished Type 304 stainless rods, rails and recessed end frames
Joint Type	Continuous rod-to-rail welds on a fully welded recessed base with threaded cleanroom glides
Customization	Available based on the intended application and operating environment.

Available Options

900, 1500 or 1800 mm seat lengthPerforated formed seatFloor-mount end framesType 316 stainless construction

Planning a Stainless Steel Gowning Bench specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
