Cleanroom Furniture and Stainless Steel Products
Stainless Steel Container

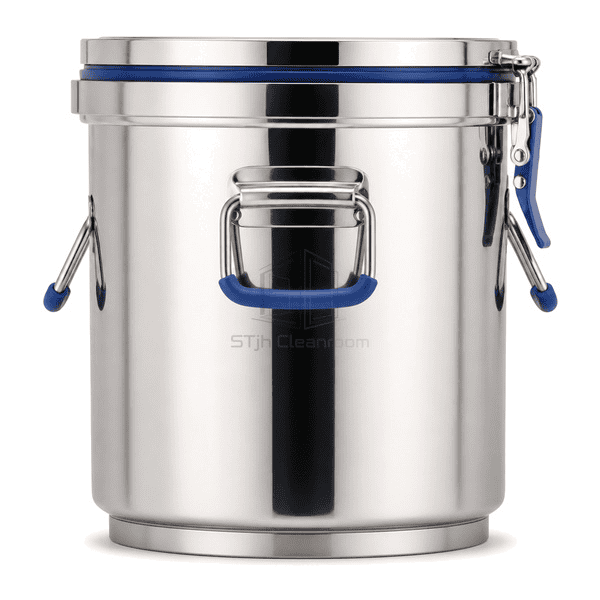

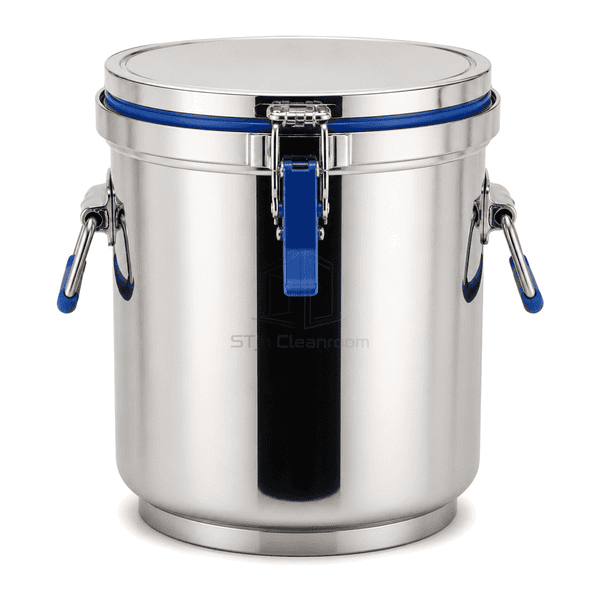

A 30 L Type 316L cylindrical process container with a polished seamless body, removable silicone-gasketed lid, over-center clip band and folding side handles.
- 30 L cylindrical vessel
- 316L product-contact surfaces
- Silicone-gasketed clip lid
- Folding stainless handles
Product Introduction
The stainless steel container holds powders, granules and cleaned components in a closed vessel between controlled process steps. Its cylindrical Type 316L body has a rolled upper bead and rounded base transition for easy access during cleaning. A flat stainless lid compresses a blue silicone gasket through an over-center clip band, providing a practical atmospheric-pressure closure without threaded product-contact parts. Folding Type 304 side handles lie close to the body when the vessel is stored or transferred on a cart.
Key Features

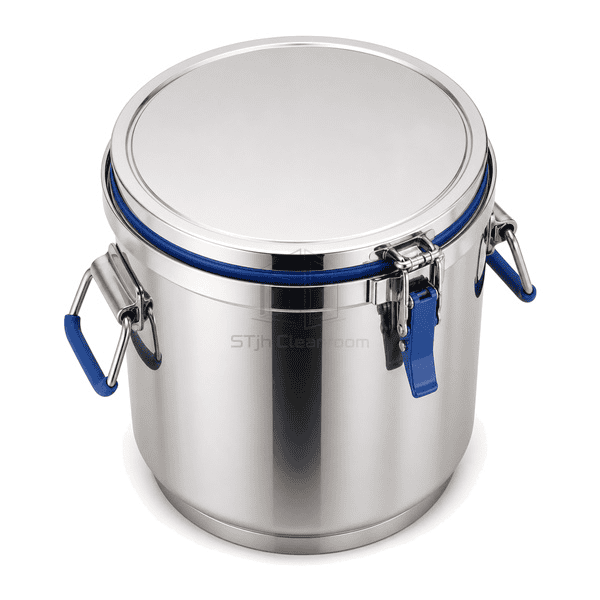

The over-center clip band applies even gasket compression without multiple loose fasteners.

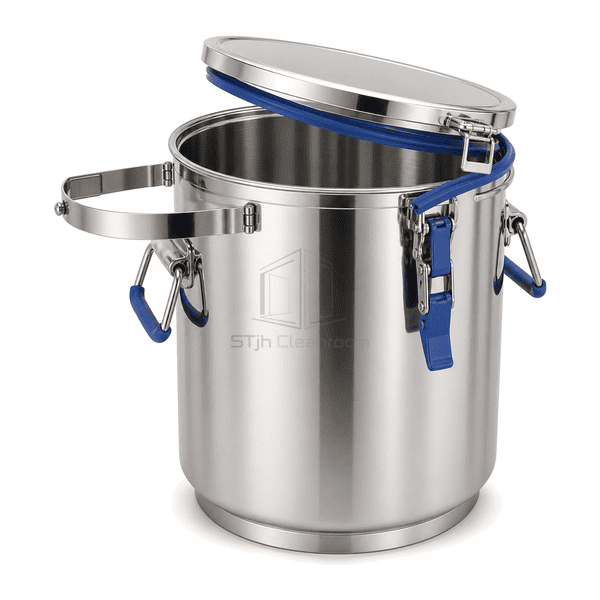

A blue silicone gasket is visible at the rim and can be removed separately for inspection.
Folding side handles reduce the outside envelope while retaining two-handed lifting points.
Customer Product Concerns
A reusable process container must close predictably, expose its seal for inspection and remain easy to handle without threaded crevices around the product opening.
Individual lid clamps create uneven pressure and slow repeated opening.One over-center clip band distributes compression around the full silicone gasket.
A hidden lid seal cannot be checked before filling the vessel.The removable blue gasket seats visibly on the rolled upper rim.
Sharp base corners retain powder at the bottom perimeter.The cylindrical wall blends into the base through a broad internal radius.
Rigid protruding handles interfere with close cart loading and cabinet storage.Two stainless handles fold flat against the container body when released.
Typical Applications
Pharmaceutical powder stagingClean component closed transferFood and cosmetic ingredient holdingLaboratory bulk sample storageBioprocess consumable collection
Technical Parameters
Typical configurable specifications for a Type 316L clip-sealed cleanroom process container are listed below.
| Core Material | Type 316L stainless cylindrical body and lid, Type 304 clip band and handles, blue silicone gasket |
|---|---|
| Panel Thickness | 1.0 mm cylindrical vessel wall and lid panel |
| Effective Width | 360 mm nominal vessel diameter |
| Maximum Length | 440 mm maximum overall width across folded side handles |
| Steel Facing Thickness | 1.0 mm Type 316L body and lid sheet |
| Core Density | 7950–8050 kg/m³ for Type 316L stainless body components |
| Thermal Conductivity | 14–16 W/(m·K) for Type 316L stainless body components |
| Surface Finish | Buff-polished internal and external stainless surfaces with contrasting blue silicone seal |
| Joint Type | Rolled vessel rim with removable silicone gasket and circumferential over-center clip-band closure |
| Customization | Available based on the intended application and operating environment. |
Available Options
10–65 L capacitiesEPDM or FKM gasketElectropolished interiorDrain ferrule or sampling port
