Cleanroom Material Handling and Storage
Stainless Steel Cleanroom Drum

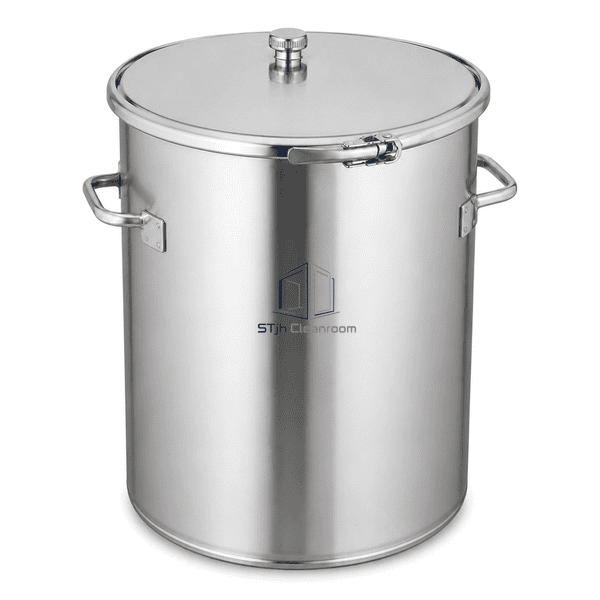

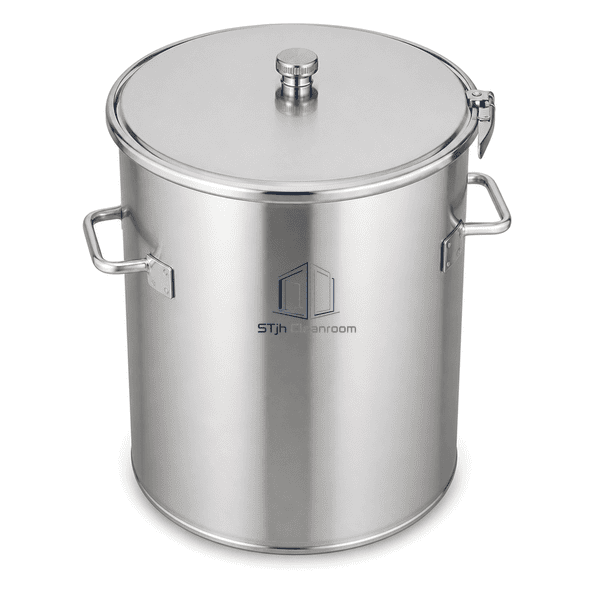

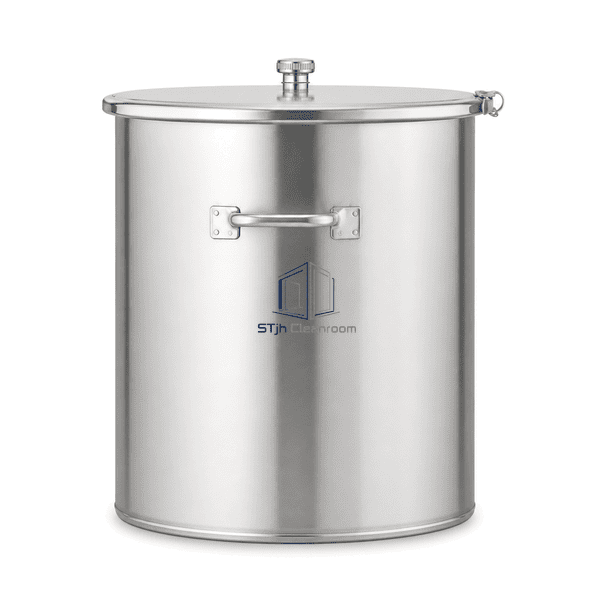

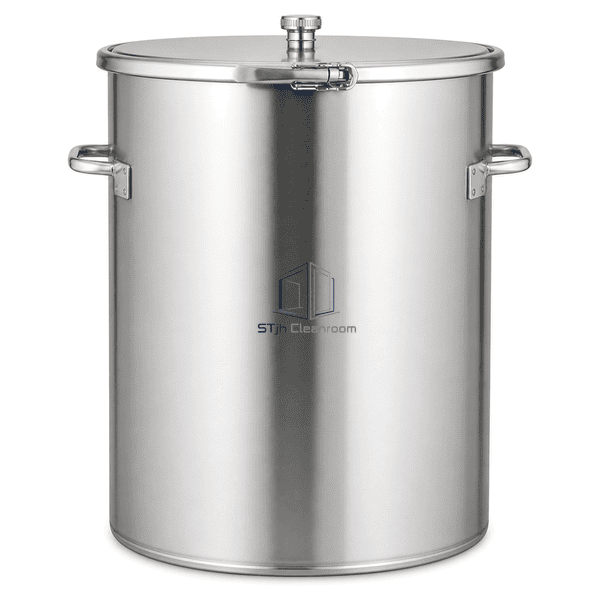

A cylindrical stainless steel cleanroom drum with a welded hygienic body, removable gasketed lid, over-centre closure, top vent fitting and two handling grips.
- Crevice-controlled stainless shell supports repeatable wipe-down and inspection
- Gasketed removable lid shields powders, components and process materials in transit
- Twin welded handles simplify controlled manual transfer between workstations
Product Introduction
This cleanroom drum provides a robust reusable vessel for staging and transferring dry materials, packaged components or process accessories. The smooth cylindrical shell has a welded bottom and rolled reinforcement at the upper and lower edges. A close-fitting lid compresses a selected gasket through an over-centre closure, while opposed side grips support controlled lifting. Stainless product-contact surfaces can be supplied brushed, mechanically polished or electropolished to suit cleaning practice.
Key Features
Removable lid opens the full vessel diameter for loading and cleaning access.
Gasketed rim limits dust and ambient moisture ingress during closed handling.
Two opposed handles distribute manual lifting force around the vessel.
Optional capped top connection accommodates venting, sampling or purge service.
Customer Product Concerns
Painted drums can shed coatings, folded seams can retain residue, and loosely fitted covers expose clean materials during internal movement.
Residue at inaccessible seamsContinuously welded stainless surfaces provide a visible, cleanable interior path.
Dust entering during transferThe selected gasket is compressed around the lid perimeter by the closure hardware.
Corrosion after repeated cleaning304 or 316L stainless grades can be selected for the intended chemical regime.
Awkward manual handlingOpposed welded grips provide balanced contact points for controlled lifts.
Typical Applications
Closed transfer and temporary storage of clean components, liners, dry powders, granules, utensils and maintenance parts in pharmaceutical, biotechnology, food-process, chemical and controlled manufacturing areas.
Technical Parameters
The shell is roll-formed and seam-welded to a stainless bottom, with edge geometry selected to resist handling distortion and avoid inaccessible folds. Lid, gasket and latch arrangement must match the stored material, cleaning chemistry and required closure performance. The drum is a non-pressure container unless a project-specific pressure-rated design is explicitly selected.
| Core Material | 304, 316 or 316L stainless steel body and lid with compatible elastomer gasket |
|---|---|
| Panel Thickness | 0.8–2.0 mm shell and lid material |
| Effective Width | 196–570 mm nominal internal diameter |
| Maximum Length | Up to 900 mm overall drum height |
| Steel Facing Thickness | 0.8–2.0 mm exposed stainless steel wall |
| Core Density | 7900–8000 kg/m³ nominal stainless steel density |
| Thermal Conductivity | Approximately 14.6–16.2 W/(m·K) at room temperature |
| Surface Finish | Fine-brushed, mechanically polished or electropolished stainless steel |
| Joint Type | Continuously welded shell and bottom with gasketed removable lid and over-centre closure |
| Customization | Available based on the intended application and operating environment. |
Available Options
304 or 316L stainless steel, alternative capacities, silicone, EPDM or FKM gasket, blank or ported lid, clamp-band or multi-clip closure, stacking base, electropolished interior, identification tag holder and matched mobile dolly.
Planning a Stainless Steel Cleanroom Drum specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
