Cleanroom Control and Environmental Monitoring Systems
Remote Airborne Particle Sensor

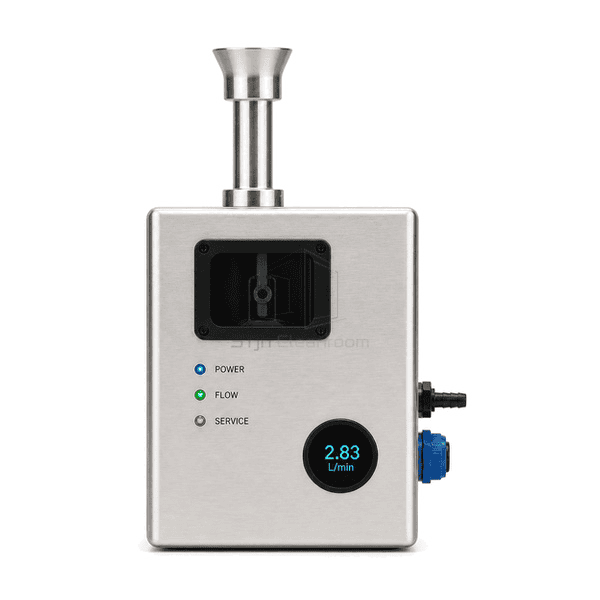

A fixed-location optical particle sensor that continuously counts airborne particles at a cleanroom sample point and sends channel data to the monitoring system.
- Continuous Particle Counting
- Multiple Size Channels
- Remote Vacuum Sampling
- Digital Monitoring Output
Product Introduction

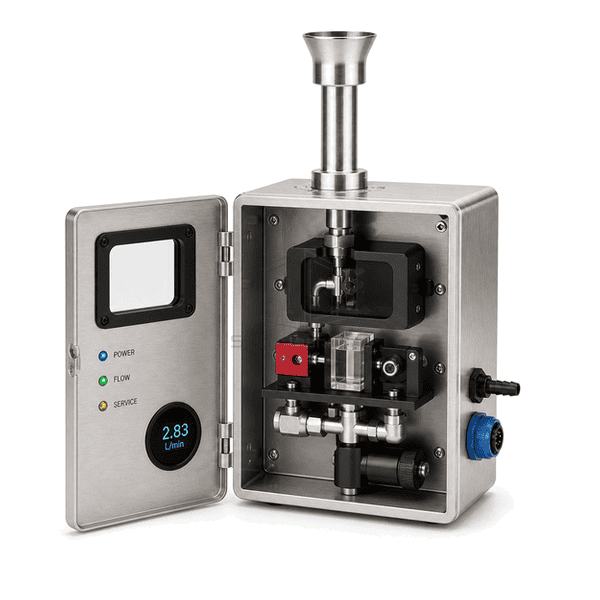

The remote airborne particle sensor draws a controlled sample through an isokinetic probe and laser scattering chamber. Individual particles interrupt the laser beam and are classified by signal amplitude into configured size channels. The compact stainless or coated housing mounts near the sample point while vacuum, power and communication remain accessible from the service side. Continuous counts and sensor-health status are transferred to the environmental monitoring platform for real-time display, alarming and historical review.
Key Features

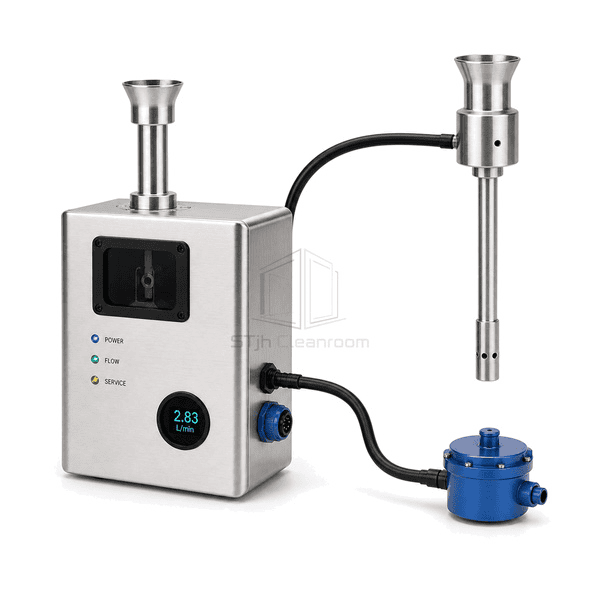

A remote isokinetic probe presents the inlet correctly to the cleanroom airflow direction.
External vacuum or integrated pumping options support continuous fixed-point sampling.
Digital output carries particle channels, flow status and instrument alarms together.
Customer Product Concerns
Continuous particle monitoring depends on representative sampling, stable flow and prompt detection of blocked tubing or vacuum loss.
A poorly oriented inlet under-samples larger particles moving with the room airflow.An isokinetic probe aligns the sample opening with the local cleanroom flow direction.
Long tubing allows particle loss before the sample reaches the sensor.Mounting the sensor close to the probe shortens the particle path and reduces deposition.
Vacuum loss produces zero counts that look like clean air.Flow and vacuum diagnostics create a separate instrument alarm rather than reporting a false normal result.
Service activity exposes the room side to open wiring and tubing.Service-side connections and a clean stainless or coated enclosure preserve the cleanroom face.
Typical Applications
Aseptic filling zonesPharmaceutical cleanroomsSemiconductor mini-environmentsContinuous critical-point monitoring
Technical Parameters
Typical construction values for a fixed remote cleanroom particle sensor are listed below.
| Core Material | Optical glass laser chamber in anodized aluminum frame with stainless steel or coated enclosure |
|---|---|
| Panel Thickness | 80-140 mm sensor depth |
| Effective Width | 100-180 mm housing width |
| Maximum Length | Up to 300 mm enclosure length |
| Steel Facing Thickness | 0.8-1.2 mm stainless or coated steel housing |
| Core Density | 2650-8030 kg/m³ across aluminum frame and stainless enclosure parts |
| Thermal Conductivity | 14-220 W/(m·K) across stainless and aluminum structural components |
| Surface Finish | Brushed stainless steel or smooth white coated housing with blue status LED |

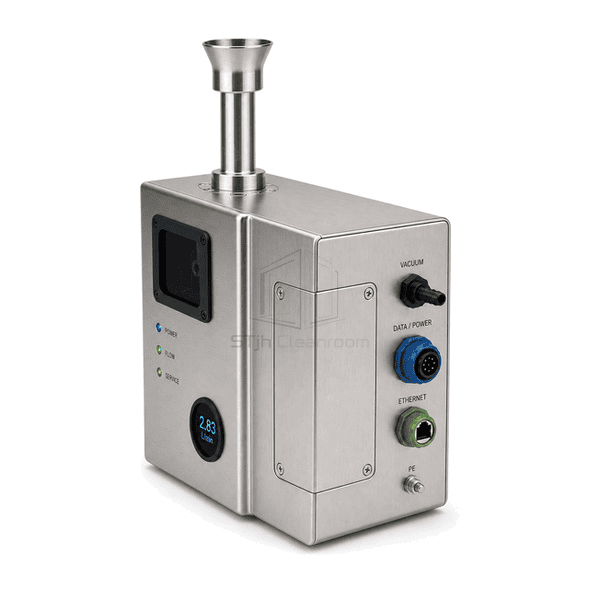

| Joint Type | Isokinetic sample inlet, barbed vacuum outlet and sealed power-data connectors |
| Customization | Available based on the intended application and operating environment. |
Available Options
Two or multiple particle channelsExternal or integrated vacuumStainless isokinetic probeEthernet or serial communication
Planning a Remote Airborne Particle Sensor specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
