Cleanroom Doors, Windows and Interlock Systems
Insulated High-Speed Roll-Up Door
A fast flexible door with a moisture-resistant closed-cell foam curtain and thermally separated guides for openings that must control both traffic and temperature loss.
- Temperature-Controlled Storage
- 25 mm Flexible Insulation
- Aluminum or Stainless Frame
- Low-Temperature Configuration
Product Introduction

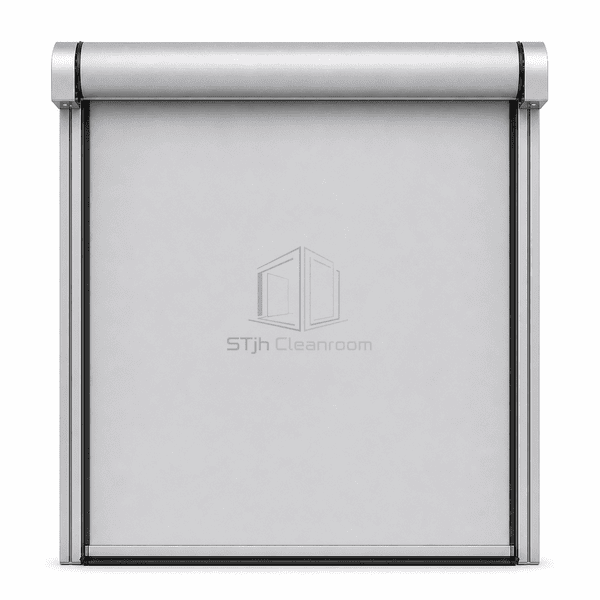

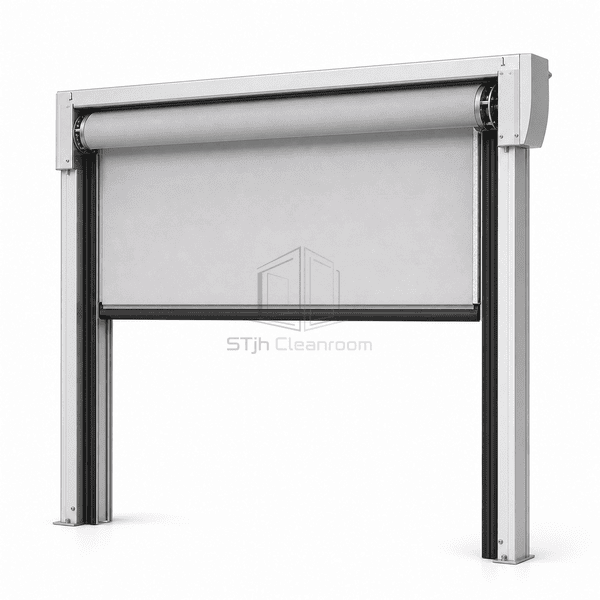

The Insulated High-Speed Roll-Up Door combines a laterally stable flexible panel with a closed-cell foam core, vapor-resistant skins and full-height side seals. Integrated thermal breaks reduce direct conduction through the frame, while rapid travel limits warm-air and moisture exchange. The curtain remains vertically flexible so it can roll around the header drum and release under impact. This configuration is suited to conditioned production rooms, cold preparation zones and material routes where a single thin PVC curtain would provide insufficient thermal separation.
Key Features
Moisture-resistant outer skins protect the core from condensation and repeated cleaning.

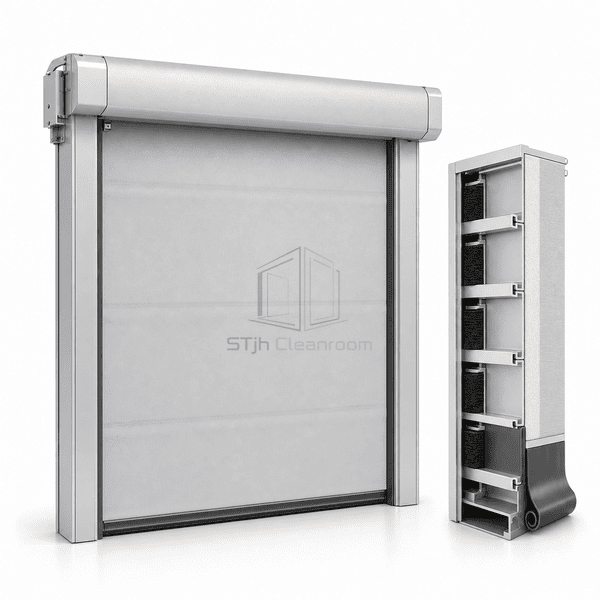

Thermally separated side columns interrupt conductive paths around the opening perimeter.
Fast opening limits infiltration before the insulated curtain reseals the doorway.
Break-away bottom construction reduces repair time after accidental vehicle contact.
Customer Product Concerns
A thin curtain permits rapid heat gain and condensation near the opening.The laminated closed-cell foam layer adds thermal resistance while preserving roll-up operation.
Frame conduction creates cold bridges and frost around side columns.Integrated thermal breaks and separated guide components reduce direct conductive paths.
Moisture can migrate into absorbent insulation and degrade performance.Closed-cell foam and sealed non-porous skins resist vapor penetration during normal service.
Rigid insulated doors open too slowly for frequent material movement.A lightweight flexible insulated panel cycles rapidly and clears the full opening vertically.
Typical Applications
Temperature-controlled pharmaceutical storageCold preparation roomsFood and beverage clean processingConditioned packaging linesMaterial transfer between different temperature zones
Technical Parameters

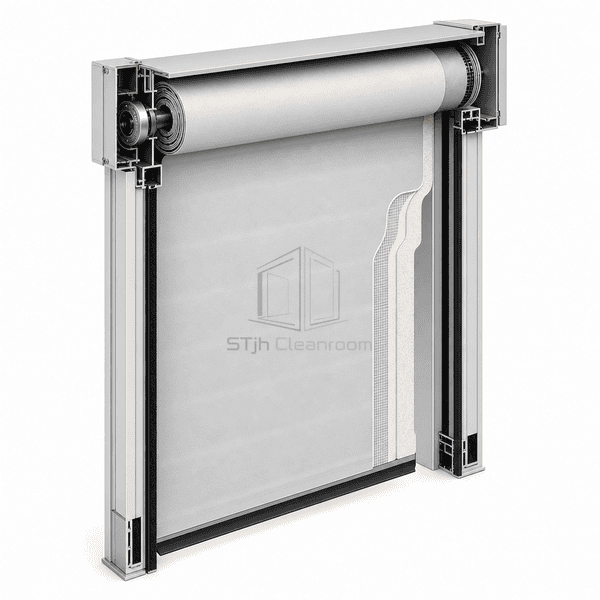

| Core Material | Closed-cell flexible foam laminated between reinforced moisture-resistant curtain skins |
|---|---|
| Panel Thickness | Approximately 25 mm insulated flexible curtain |
| Effective Width | 1000–3650 mm clear opening |
| Maximum Length | Up to 6400 mm clear opening height |
| Steel Facing Thickness | Not applicable to the curtain; structural side-column covers typically 1.5–3.0 mm |
| Core Density | 35–55 kg/m³ closed-cell foam |
| Thermal Conductivity | Approximately 0.030–0.040 W/(m·K) for the foam layer |
| Surface Finish | Reinforced non-porous curtain skins with aluminum, fiberglass-composite or stainless frame surfaces |
| Joint Type | Roll-up insulated curtain with full-height multi-lip side seals, top loop seal and flexible bottom seal |
| Customization | Available based on the intended application and operating environment. |
Available Options
Low-temperature side-guide heatingVision windows for traffic awarenessStainless hygienic frame packageAutomatic vehicle or touchless activation
Planning a Insulated High-Speed Roll-Up Door specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
