Air Filters and Chemical Filtration
High-Airflow Medium-Efficiency Filter
A reinforced extended-surface filter built to process higher air volumes while maintaining open channels through a deep supported media pack.
- High Face Velocity
- Reinforced Metal Cell

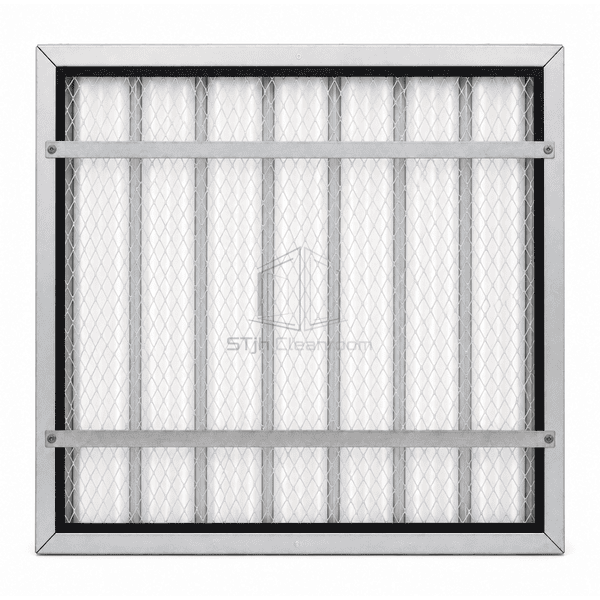

- Open Deep-Pleat Channels
- Large Dust Storage
Product Introduction

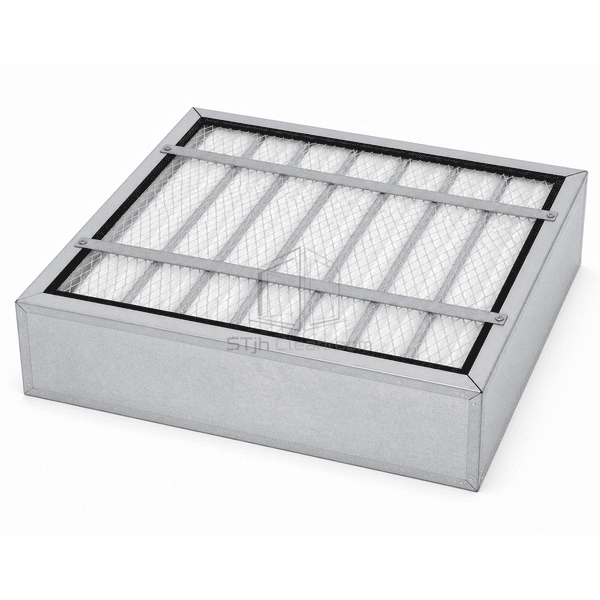

The high-airflow medium-efficiency filter combines a deep extended-surface media pack with rigid galvanized or aluminized-steel cell sides, protective faceguards and structural support straps. Corrugated separators or stabilized pleat spacers maintain open channels through the full depth of the pack as face velocity rises. A high-loft microglass or synthetic medium stores particles through its depth, while the rigid header resists the pulsation and turbulence found in large air handlers and process-air inlets. This construction emphasizes mechanical stability and airflow capacity rather than minimum cabinet depth.
Key Features

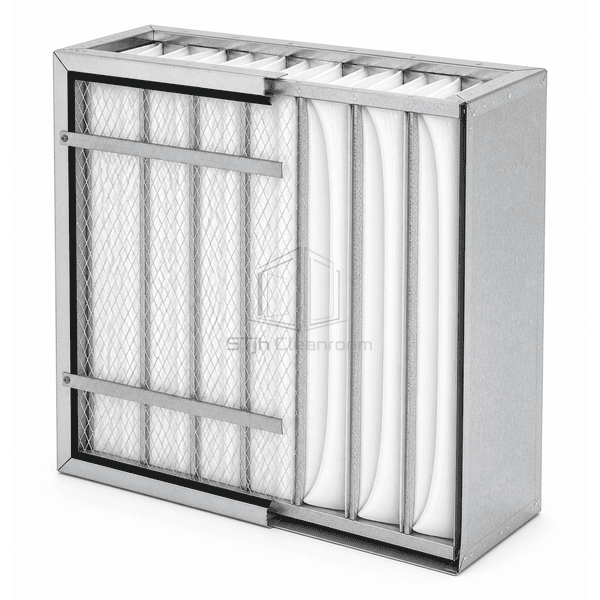

Corrugated separators preserve full-length channels under turbulent inlet conditions.

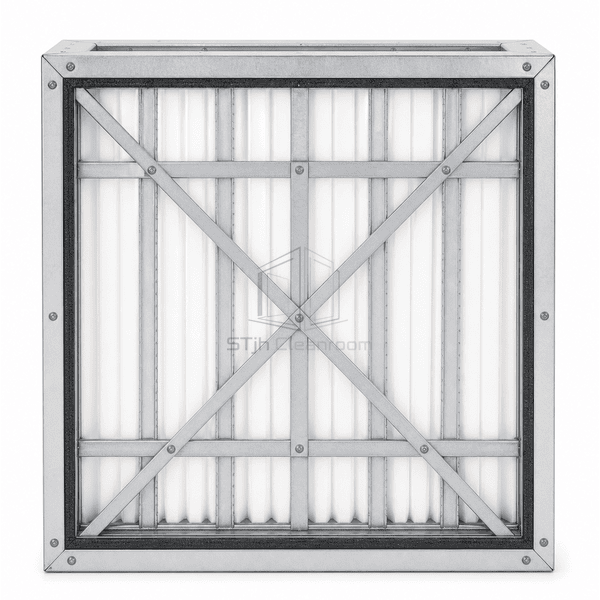

Metal faceguards and cross straps protect the pack from bowing and handling damage.
A high-strength enclosing cell keeps the gasket plane flat under sustained differential pressure.
Customer Product Concerns
High-volume systems expose filter packs to turbulence, pulsation and structural loads that ordinary medium filters may not withstand.
Increasing airflow sharply raises pressure drop through a small media pack.A full-depth extended-surface pack lowers velocity at the media and preserves open flow channels.
Turbulent inlet air bows the pleats and damages the pack perimeter.Corrugated separators, faceguards and support straps share the load across the rigid cell.
Repeated fan starts loosen the internal pack-to-frame bond.Deep polyurethane potting anchors the entire media perimeter inside the metal cell.
A distorted header leaves compression gaps along the filter bank.Reinforced galvanized cell sides maintain a flat gasket surface at high operating pressure.
Typical Applications
Large central air-handling unitsCleanroom make-up-air plantsProcess ventilation systemsIndustrial supply-air filtrationHigh-volume turbine and compressor intake prefiltration
Technical Parameters
Typical construction ranges for a reinforced high-airflow medium-efficiency filter are listed below.
| Core Material | High-loft microglass or synthetic media with corrugated aluminum or hot-melt separators |
|---|---|
| Panel Thickness | 292 mm nominal extended-surface depth |
| Effective Width | 305-610 mm modular face width |
| Maximum Length | Up to 610 mm standard face length |
| Steel Facing Thickness | 0.80-1.20 mm galvanized or aluminized-steel cell sides and faceguards |
| Core Density | Approximately 80-135 kg/m³ nominal supported media-pack density |
| Thermal Conductivity | Approximately 0.034-0.043 W/(m·K) for the dry filter medium |
| Surface Finish | Mill-galvanized or aluminized-steel cell with white media and metallic faceguards |
| Joint Type | Deep pleated pack potted into a reinforced rigid cell with single or double header |
| Customization | Available based on the intended application and operating environment. |
Available Options
MERV 11 or MERV 14 mediaStandard- or high-capacity pleat packSingle-header or double-header cellUpstream prefilter clips and heavy-duty faceguards
Planning a High-Airflow Medium-Efficiency Filter specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
