FFU and Terminal Air Purification Equipment
High-Airflow Fan Filter Unit

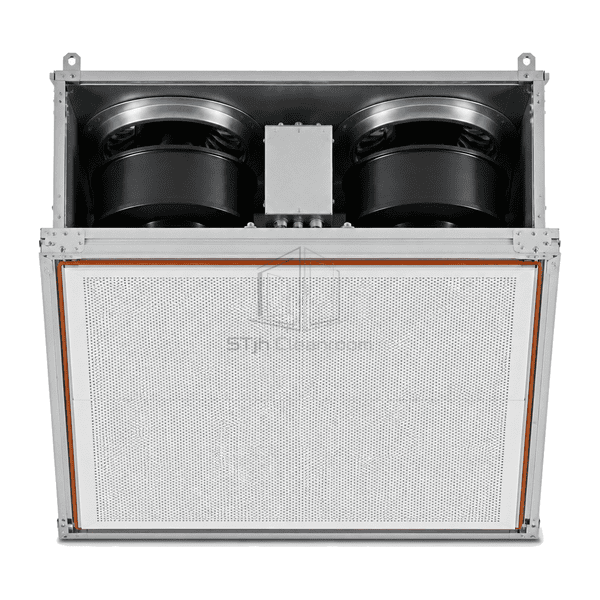

A large-format FFU with two matched EC blowers and a broad final-filter face for supplying substantially more clean air from a single reinforced ceiling module.
- Twin Matched EC Blowers
- Large 1200 mm Module Format
- Broad Active Filter Area
- Balanced Dual-Inlet Plenum
Product Introduction

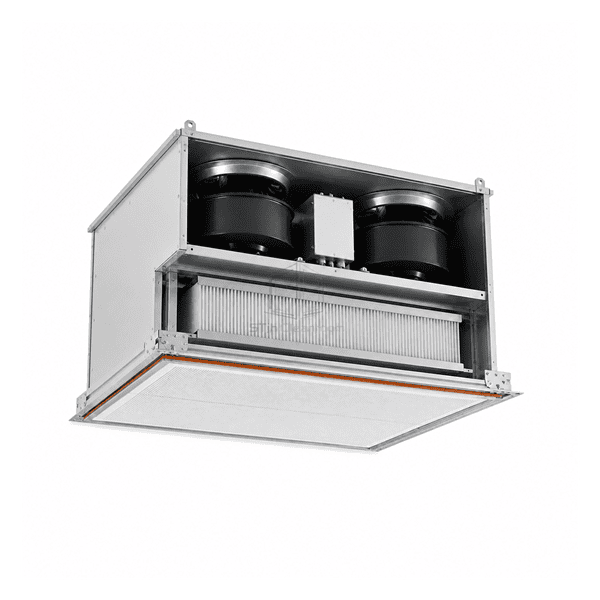

The high-airflow fan filter unit expands both the filter face and fan capacity. Two matched EC blowers feed separate zones of a common reinforced plenum, while a central controller maintains coordinated speed. The large active filter area distributes the combined flow across a broad ceiling footprint and reduces the number of individual modules needed above a high-demand work zone. Internal splitters and a full-width diffuser prevent the two fan streams from producing a visible centerline or opposing jets.
Key Features

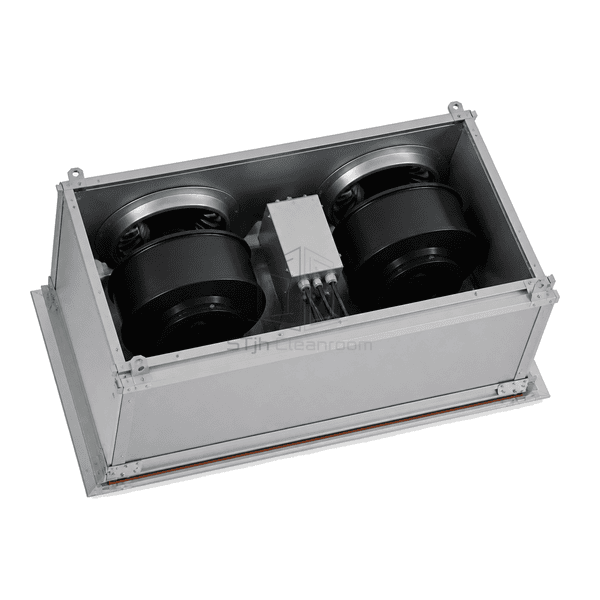

A divided inlet plenum equalizes the two fan streams before they reach the common final-filter face.
The 1200 mm square housing covers a large ceiling area while using one power and control connection.

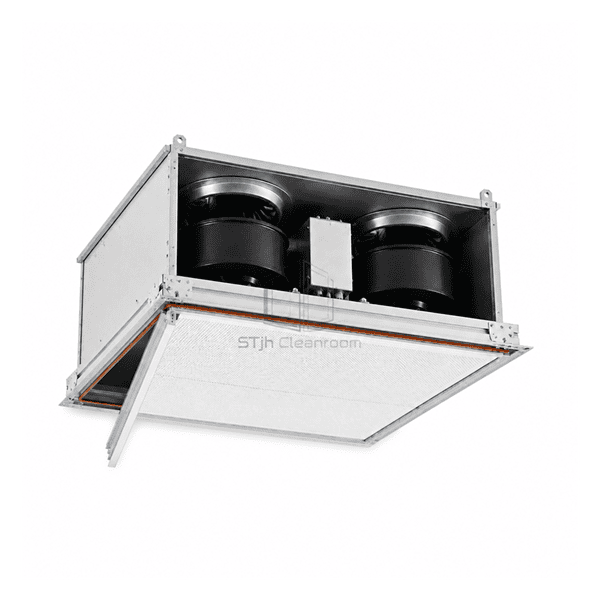

A reinforced perimeter and intermediate cross-member support the wide filter and diffuser against bowing.
Customer Product Concerns
High airflow from one ceiling bay must remain uniform across a large face without overloading a single motor or distorting the filter frame.
Several small FFUs require many power drops, controllers and ceiling penetrations over one work zone.A large dual-blower module consolidates airflow, power and control into one reinforced ceiling footprint.
A single central blower creates excessive velocity beneath the hub and weak flow at the far corners.Twin fans, a divided inlet and broad distribution chamber spread the flow before the common filter face.
A wide unsupported final filter can bow, unseat its gasket or touch the downstream diffuser.Intermediate structural support and a rigid perimeter frame maintain filter compression across the full span.
Mismatched fan speeds create an uneven outlet pattern and unnecessary turbulence along the module centerline.The common EC controller synchronizes both blowers and allows the two sections to be balanced as one unit.
Typical Applications
High-coverage semiconductor clean zonesLarge laminar-flow work areasBattery and precision-component productionCleanrooms with limited ceiling-module positionsHigh-air-change process rooms
Technical Parameters
Typical materials and dimensional ranges for a large-format high-airflow fan filter unit are listed below.
| Core Material | Reinforced aluminium plenum, two backward-curved EC blowers and a large-area micro-glass HEPA or ULPA filter pack |
|---|---|
| Panel Thickness | 350-480 mm overall module depth |
| Effective Width | 1130-1200 mm nominal module width |
| Maximum Length | Up to 1200 mm standard square module length |
| Steel Facing Thickness | 1.0-1.5 mm optional stainless or powder-coated steel reinforcement and diffuser sheet |
| Core Density | Approximately 90-120 kg/m³ nominal compacted density of the large-area micro-glass filter pack |
| Thermal Conductivity | Approximately 0.035-0.043 W/(m·K) for the large-area micro-glass pack used in the high-airflow FFU |
| Surface Finish | Natural anodized aluminium with white perforated diffuser and colored closed-cell perimeter gasket |
| Joint Type | Reinforced wide-span ceiling flange with continuous perimeter gasket and supported compression-seal filter frame |
| Customization | Available based on the intended application and operating environment. |
Available Options
1200 × 1200 mm or large rectangular footprintTwin synchronized EC blowersHigh-capacity HEPA or ULPA filterLocal, 0–10 V or network group control
Planning a High-Airflow Fan Filter Unit specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
