Cleanroom Installation Accessories

Flexible Duct Connector

A blue coated-fabric sleeve between galvanized rectangular flanges that decouples limited vibration and movement in cleanroom ductwork.

Blue Coated Fabric
Twin Galvanized Flanges
Vibration Decoupling
Rectangular Air Passage

Request a Quote Browse Products

Product Introduction

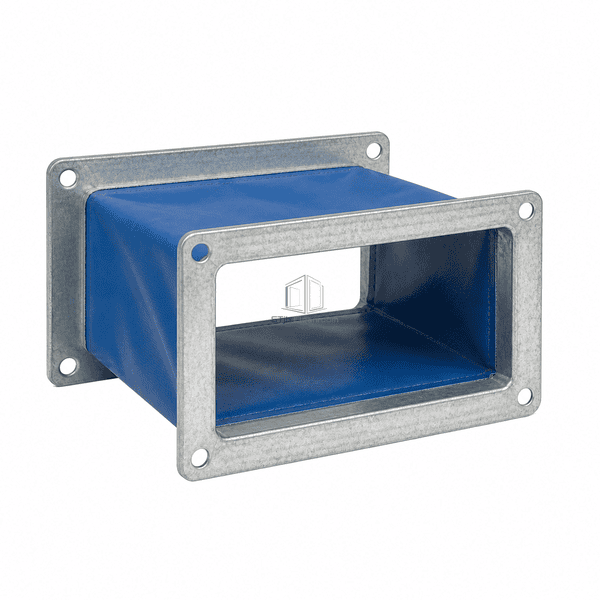

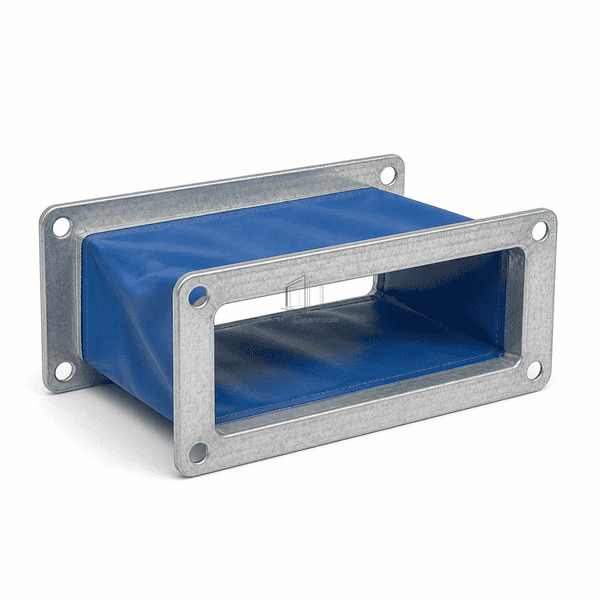

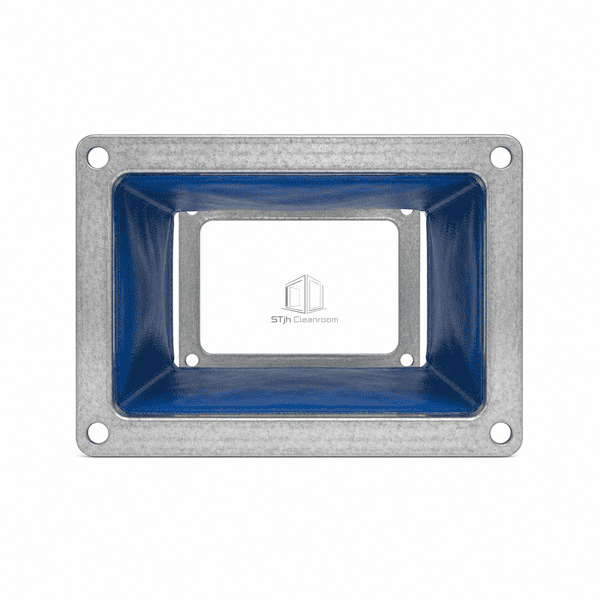

Two galvanized rectangular end flanges are joined by a sewn blue coated-fabric sleeve, creating a hollow air passage with a flexible wall section between rigid duct connections.

Key Features

Flexible fabric interrupts direct vibration transfer.

Twin flanges provide defined bolted interfaces.

Coated fabric limits air leakage through the sleeve.

Corner holes support repeatable alignment.

Customer Product Concerns

Rigid duct connections can transmit fan vibration and stress adjacent sheet-metal joints.

Equipment vibration travels into ductwork.The fabric sleeve decouples limited movement.

Misaligned ends load rigid joints.The flexible span accommodates small installation offsets.

Uncoated fabric leaks air.A continuous coated textile forms the air barrier.

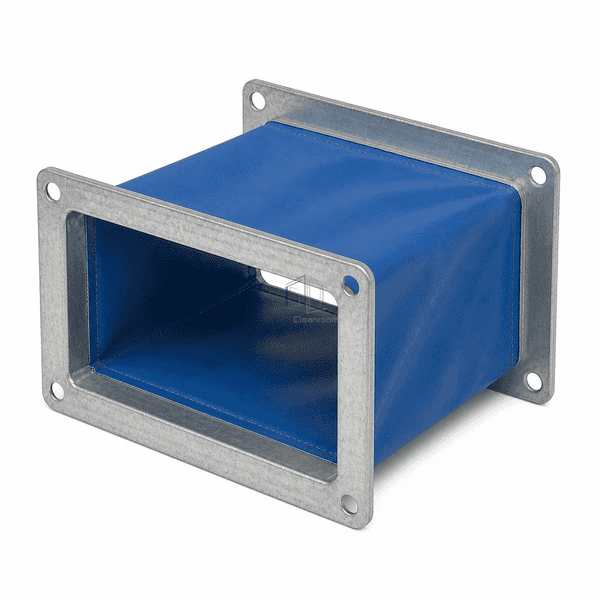

Weak edge attachment can peel.Fabric edges are continuously retained at both flanges.

Typical Applications

Fan discharge jointsAir-handler connectionsCleanroom supply ductsExhaust equipment transitions

Technical Parameters

Typical construction ranges for a rectangular flexible duct connector are listed below.

Core Material	Blue coated polyester or glass-fiber fabric with galvanized steel flanges
Panel Thickness	0.50-2.00 mm coated fabric composite thickness
Effective Width	100-1500 mm rectangular clear opening width
Maximum Length	Up to 2000 mm flange side length
Steel Facing Thickness	1.00-3.00 mm galvanized flange thickness
Core Density	Approximately 500-1500 kg/m³ coated fabric composite basis
Thermal Conductivity	Approximately 0.04-0.20 W/(m·K) for coated textile
Surface Finish	Blue smooth coated fabric with silver galvanized flanges
Joint Type	Bolted twin-flange joint with sewn or bonded flexible sleeve
Customization	Available based on the intended application and operating environment.

Available Options

Different fabric coatingsCustom flange dimensionsStainless flangesAlternative sleeve lengths

Planning a Flexible Duct Connector specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
