Personnel and Material Decontamination Equipment
Explosion-Resistant Cleanroom Air Shower
A reinforced air shower configuration with a stainless passage, bonded metalwork and segregated electrical and fan service areas for defined hazardous-process environments.
- Segregated Service Area
- Bonded Metal Enclosure
- Reinforced Stainless Passage
- Filtered Particle Removal
Product Introduction
This air shower configuration separates the occupied cleaning passage from the fan, control and cable-entry service area. Its stainless enclosure and bonded exposed metalwork provide a robust, non-flaking surface, while filtered recirculated air maintains the garment-cleaning function. Component selection and the final electrical arrangement must be matched to the actual process environment and operating conditions.
Key Features

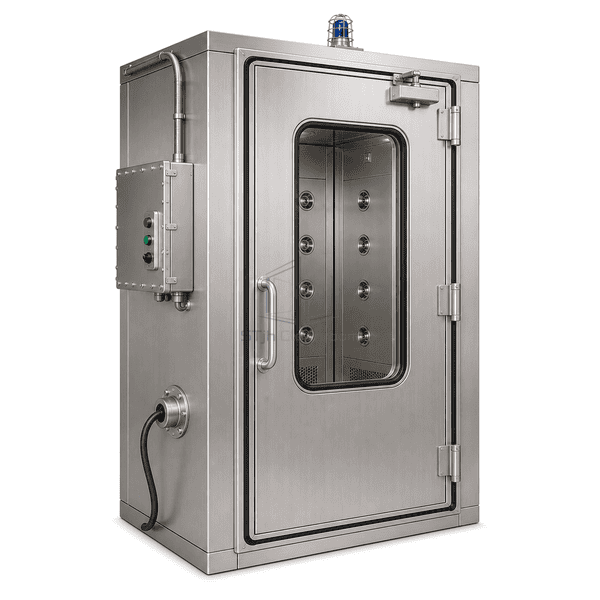

Bonding points connect exposed panels, door frames and nozzle assemblies to a common grounding path.
Reinforced fan housings and guards protect rotating equipment in industrial service.
Stainless interior surfaces avoid loose coating flakes.
Gasketed access covers help maintain a closed service enclosure.
Customer Product Concerns
Personnel cleaning near a sensitive process requires a construction concept that addresses the site's actual operating environment rather than relying on an ordinary enclosure shell.

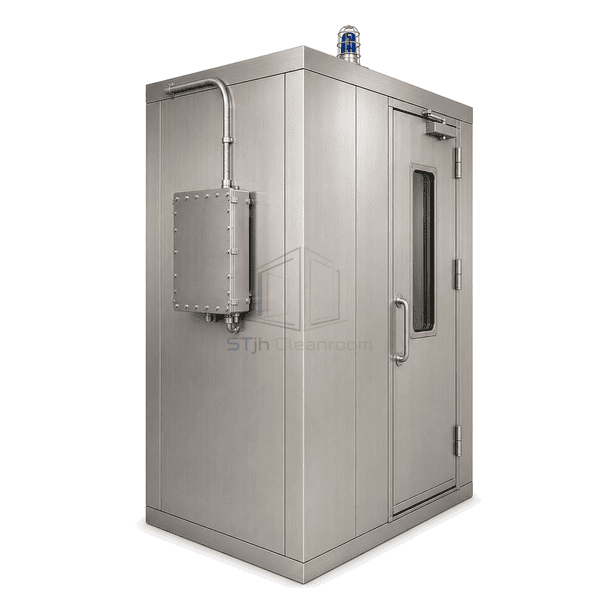

Controls and fan components need separation from the personnel cleaning passage.A dedicated sealed service compartment can locate those components outside the occupied chamber.
High-velocity airflow can leave isolated metal parts at different electrical potentials.Bonding provisions connect panels, doors and nozzle plates to a common grounding route.
Cable penetrations can become paths for dust or vapour migration.Gasketed covers and appropriately selected cable-entry hardware close the enclosure penetrations.
A coated interior may chip in demanding industrial use.An exposed stainless passage provides a durable cleanable surface without a decorative paint layer.
Typical Applications
Chemical powder process entrancesSolvent-handling controlled roomsBattery material processingIndustrial coating clean areas
Technical Parameters
The ranges below describe a robust stainless enclosure; final component selection depends on the intended environment.
| Core Material | Bonded SUS 304 or SUS 316L enclosure with a separated fan-control service compartment, H13 HEPA stage and conductive metal nozzle system |
|---|---|
| Panel Thickness | 75 mm mineral-wool insulated safety panels |
| Effective Width | 800-1500 mm clear personnel passage width |
| Maximum Length | Up to 3000 mm modular chamber length |
| Steel Facing Thickness | 1.2-1.5 mm stainless steel facing and reinforced service covers |
| Core Density | 100-120 kg/m³ mineral-wool insulation core |
| Thermal Conductivity | 0.038-0.045 W/(m·K) for the dense mineral-wool panel |
| Surface Finish | Brushed stainless steel with bonded conductive hardware and sealed cable-entry surfaces |
| Joint Type | Bolted gasketed conductive panel joints with bonded door frames and segregated service penetrations |
| Customization | Available based on the intended application and operating environment. |
Available Options
SUS 304 or SUS 316L enclosureSite-selected motor and lighting packageRemote control-cabinet locationConductive flooring and grounding monitor
Planning a Explosion-Resistant Cleanroom Air Shower specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
