Cleanroom Installation Accessories
Expansion Anchor

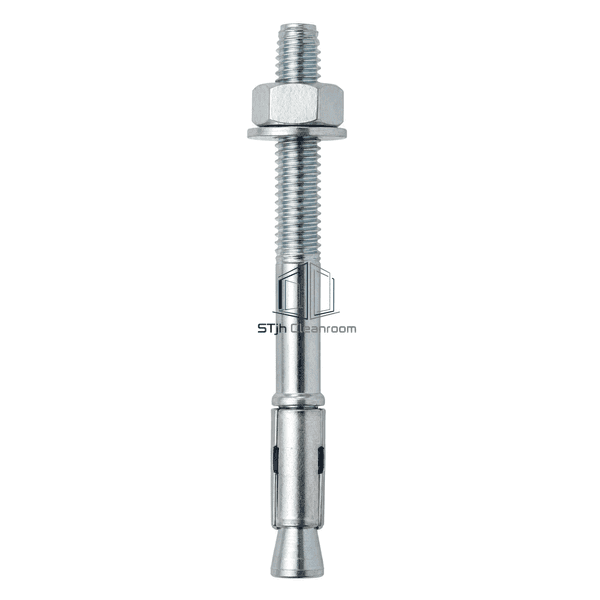

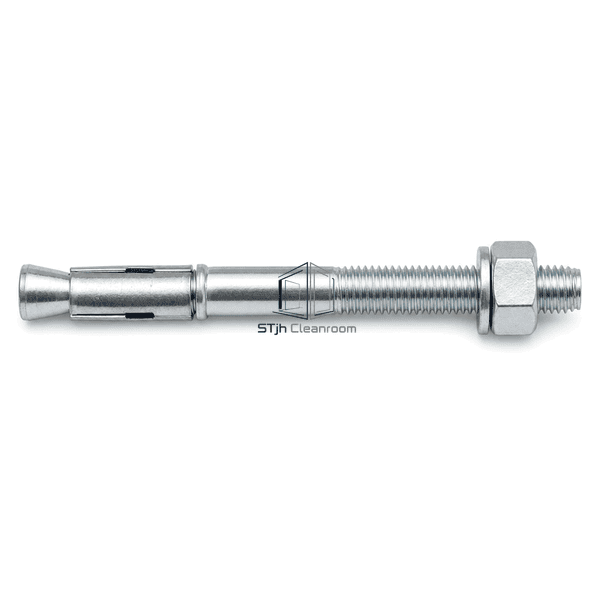

A zinc-plated sleeve anchor that expands mechanically inside a drilled concrete hole to secure cleanroom support frames and brackets.
- Positive Mechanical Expansion
- Slotted Steel Sleeve
- Integrated Nut and Washer
- Immediate Load Transfer
Product Introduction

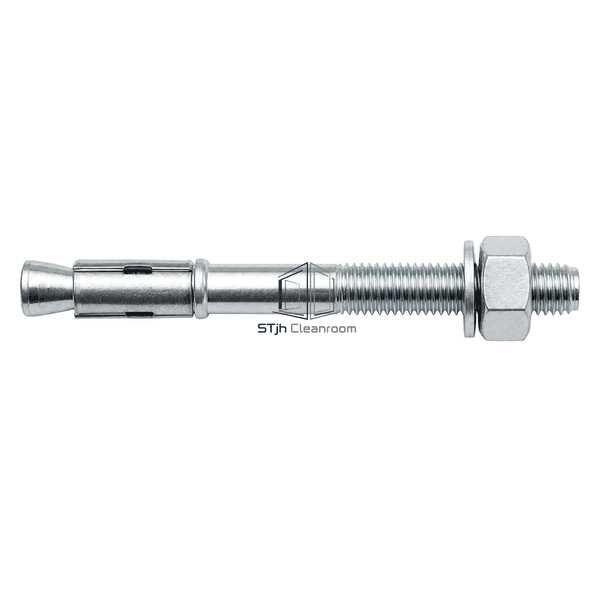

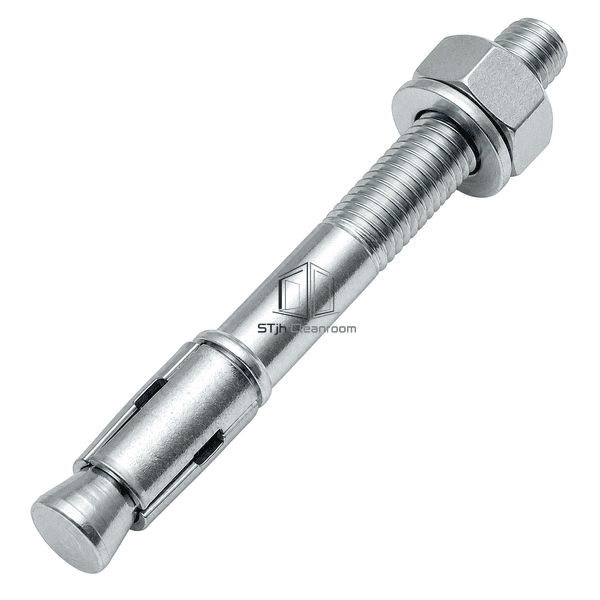

The expansion anchor combines a threaded steel shank, slotted cylindrical sleeve, tapered end cone, washer and hex nut. Tightening the nut draws the cone into the sleeve, forcing its segments against the drilled-hole wall to create a mechanical hold. The fixing is suited to cleanroom frames, ceiling supports and service brackets where a direct set-and-tighten installation is preferred in sound concrete.
Key Features
The supplied washer distributes seating pressure across the attached bracket.
Zinc-plated steel provides a practical finish for dry concealed interior support zones.
Mechanical setting provides an immediately secured connection without resin-curing time.
Customer Product Concerns
Support brackets require a predictable mechanical fixing that can be installed and tightened immediately in sound concrete.
Loose drilled holes allow the anchor to spin during tightening.Matched drill diameter and a cleaned hole let the sleeve engage the substrate uniformly.
Excessive torque can damage the substrate or deform a light bracket.The specified anchor size and setting torque control sleeve expansion and washer pressure.
Short embedment reduces engagement of the expansion zone.Hole depth and anchor length are selected so the full slotted sleeve seats in sound base material.
Unprotected steel can corrode in humid service spaces.Zinc-plated, hot-dip galvanized or stainless material is selected for the exposure.
Typical Applications
Cleanroom wall-frame anchorsCeiling support bracketsService channel base platesDoor-frame fixing platesConcrete-mounted utility supports
Technical Parameters
Typical construction and compatibility ranges for a zinc-plated sleeve expansion anchor are listed below.
| Core Material | Zinc-plated carbon-steel bolt, slotted expansion sleeve, cone, washer and nut |
|---|---|
| Panel Thickness | 5-50 mm compatible attached-bracket or fixture thickness |
| Effective Width | 8-24 mm nominal anchor and drilled-hole diameter |
| Maximum Length | Up to 300 mm overall anchor length |
| Steel Facing Thickness | 0.80-2.50 mm formed expansion-sleeve wall |
| Core Density | Approximately 7850 kg/m³ for carbon-steel components |
| Thermal Conductivity | Approximately 45-60 W/(m·K) for carbon steel |
| Surface Finish | Silver zinc-plated steel or optional passivated stainless steel |
| Joint Type | Torque-set mechanical anchorage with cone-expanded slotted sleeve |
| Customization | Available based on the intended application and operating environment. |
Available Options
Zinc-plated or stainless steelMultiple anchor diametersStandard or extended fixture thicknessHex nut or bolt-head setting
Planning a Expansion Anchor specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
